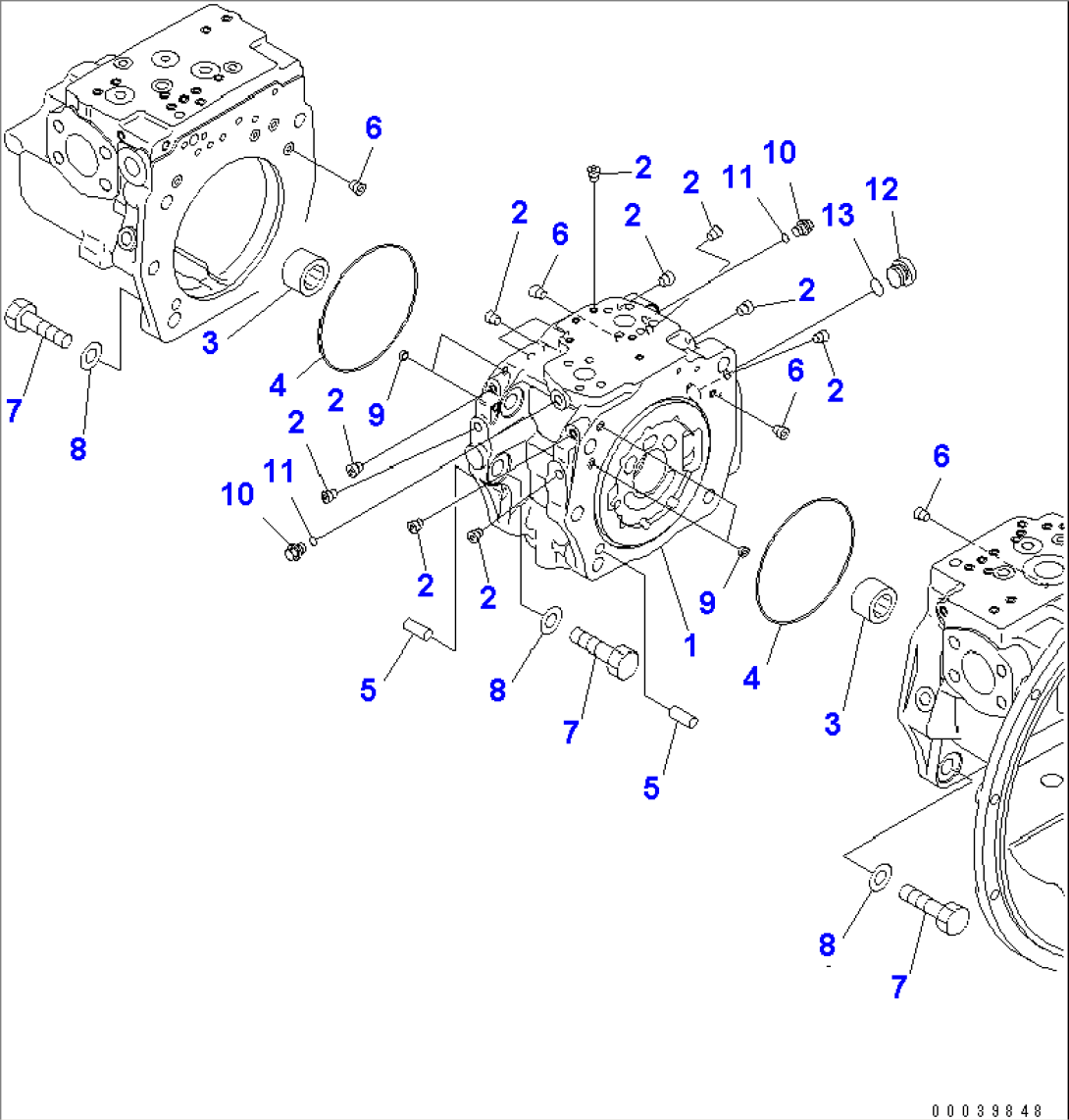

| Item | Part No. | Part Name | Qty | Serial No. |
| PUMP ASS'Y,(SEE FIG. H0250-01H0) | A87001- | |||
| PUMP SUB ASS'Y,(SEE FIG. H0250-01H0) | A87001- | |||
| (\7\708-2H-04480) | CAP ASS'Y,END | A87001- | ||
| 1 | \6\ | CAP,END | A87001- | |
| 2 | \6\ | PLUG | A87001- | |
| 3 | (\7\708-2H-12430) | BEARING | A87001- | |
| 4 | (\7\07000-A5190) | O-RING | A87001- | |
| 5 | (\7\04020-01434) | PIN,DOWEL | A87001- | |
| 6 | (\7\708-1L-29340) | ORIFICE | A87001- | |
| 7 | (\7\01010-61860) | BOLT | A87001- | |
| 8 | (\7\01643-31845) | WASHER | A87001- | |
| 9 | (\7\708-2L-25480) | FILTER | A87001- | |
| 10 | 708-8E-16150 | PLUG | A87001- | |
| 11 | 07002-61023 | O-RING | A87001- | |
| 12 | 07040-12414 | PLUG | A87001- | |
| 13 | 07002-62434 | O-RING | A87001- |
