| Item | Part No. | Part Name | Qty | Serial No. |
| (705-52-21070) | PUMP ASS'Y | B30001- | ||

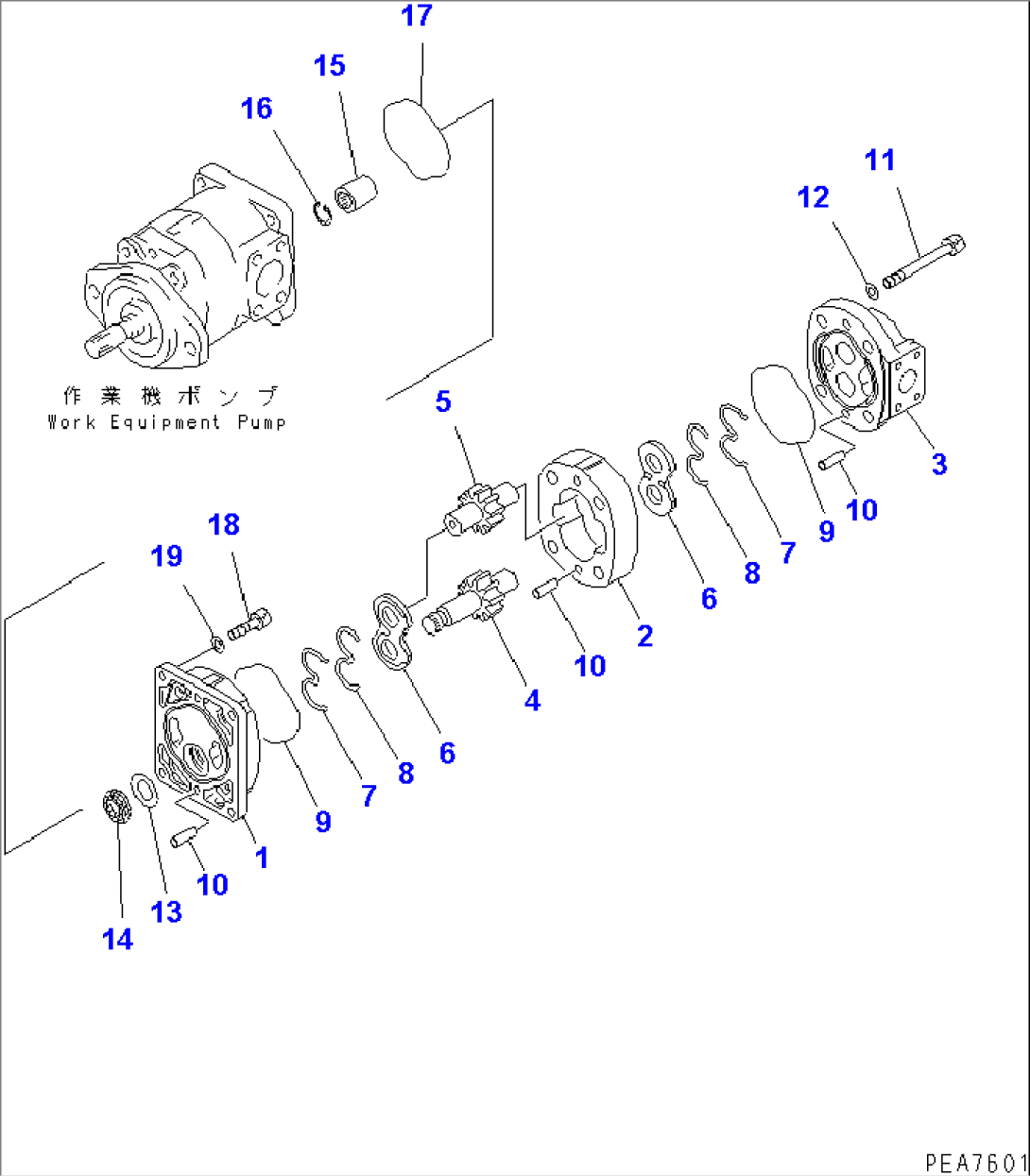

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A1 AND Y1600-02A1. | ||||
| 705-12-29630 | PUMP ASS'Y,STEERING (SAR(2)28) | B30001- | ||
| 1 | (\7\705-17-02540) | BRACKET | B30001- | |
| (\7\705-17-02353) | BUSHING | B30001- | ||
| 2 | (\7\705-17-29012) | CASE,GEAR | B30001- | |
| 3 | (\7\705-17-02122) | COVER ASS'Y | B30001- | |
| (\7\705-17-02353) | BUSHING | B30001- | ||
| 4 | (\7\705-17-29452) | GEAR,DRIVE | B30001- | |
| 5 | (\7\705-17-29512) | GEAR,DRIVEN | B30001- | |
| 6 | 705-17-02612 | PLATE,SIDE | B30001- | |
| 7 | 705-17-02440 | RING,BACK-UP | B30001- | |
| 8 | 705-17-02472 | RING,SEAL | B30001- | |
| 9 | 705-17-02381 | O-RING | B30001- | |
| 10 | 04020-01024 | PIN,DOWEL | B30001- | |
| 11 | 705-17-02730 | BOLT | B30001- | |
| 12 | 01643-51032 | WASHER | B30001- | |
| 13 | 705-17-02870 | PLATE | B30001- | |
| 14 | 705-17-02850 | SEAL,OIL | B30001- | |
| 15 | 705-17-02310 | COUPLING | B30001- | |
| 16 | 04065-02012 | RING,SNAP | B30001- | |
| 17 | 705-17-02480 | O-RING | B30001- | |
| 18 | 705-17-02374 | BOLT | B30001- | |
| 19 | 01643-51032 | WASHER | B30001- |
