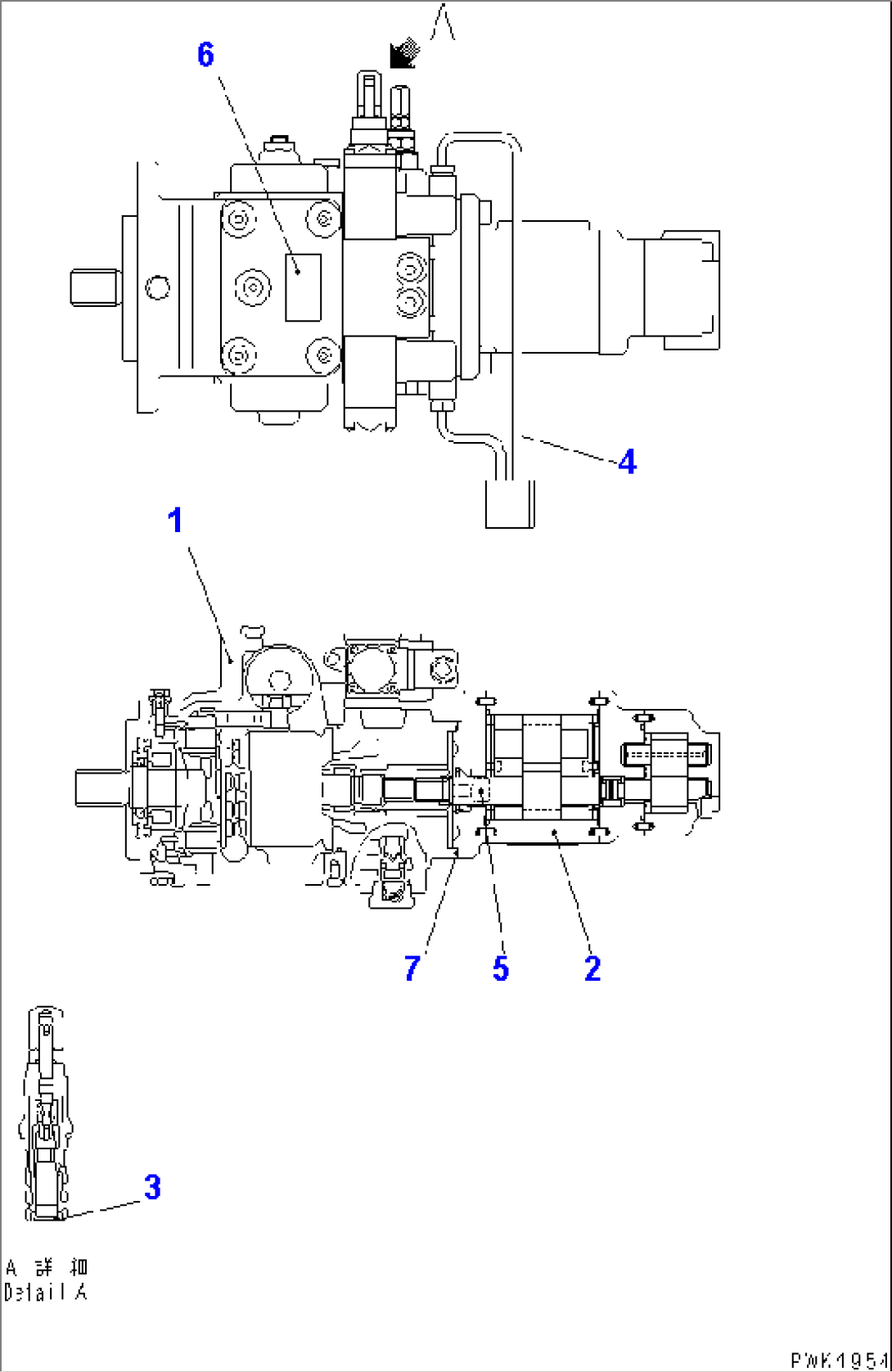

| Item | Part No. | Part Name | Qty | Serial No. |
| 363-17-31402 | PUMP ASS'Y,(A4VG28DA-931-0) | 23001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-01A0 TO Y1610-07A0. | ||||
| 1 | UCBA041S9146-0 | PUMP ASS'Y,PISTON | 23001- | |
| 2 | UCH9118R7702-0 | PUMP ASS'Y,GEAR | 23001- | |
| 3 | UC1100444396 | ORIFICE | 23001- | |
| 4 | UC1100440064 | HARNESS | 23001- | |
| 5 | 01252-31025 | BOLT | 23001- | |
| 6 | \6\ | PLATEä NAME | 23001- | |
| \6\ | SCREW | 23001- | ||
| 7 | UC1100456106 | GASKET | 23001- |
