| Item | Part No. | Part Name | Qty | Serial No. |
| 708-2H-00191 | PUMP ASS'Y | 1101- | ||

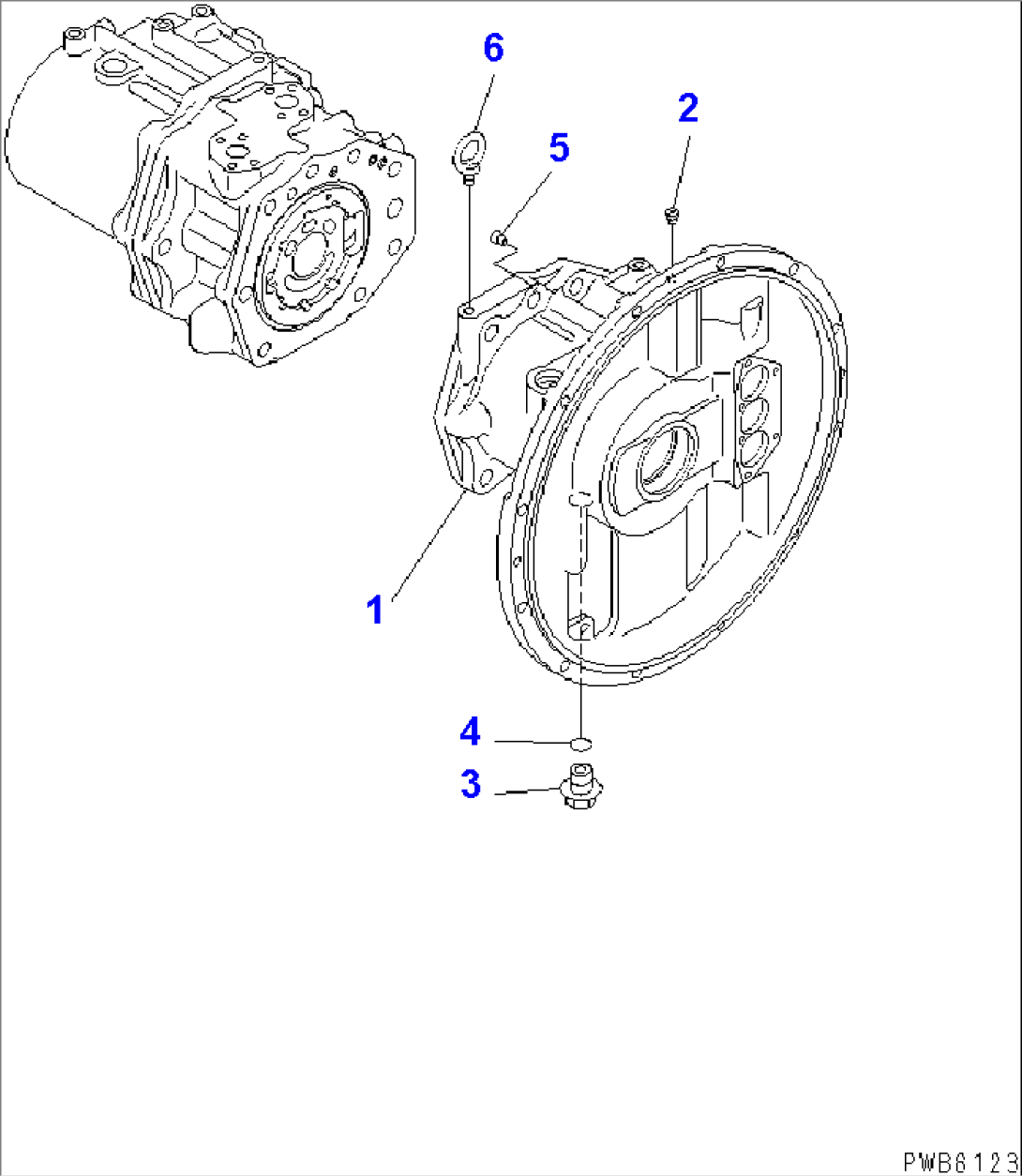

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-10A0. | ||||
| 708-2H-01121 | PUMP SUB ASS'Y | 1101- | ||
| (\7\708-2H-04110) | CASE ASS'Y,FRONT | 1101- | ||
| 1 | \6\ | CASE,FRONT | 1101- | |
| 2 | \6\ | PLUG | 1101- | |
| 3 | 07044-12412 | PLUG | 1101- | |
| 4 | 708-1W-28910 | O-RING | 1101- | |
| 5 | (\7\708-2L-25650) | ORIFICE | 1101- | |
| 6 | 04530-01222 | BOLT,EYE | 1101- |
