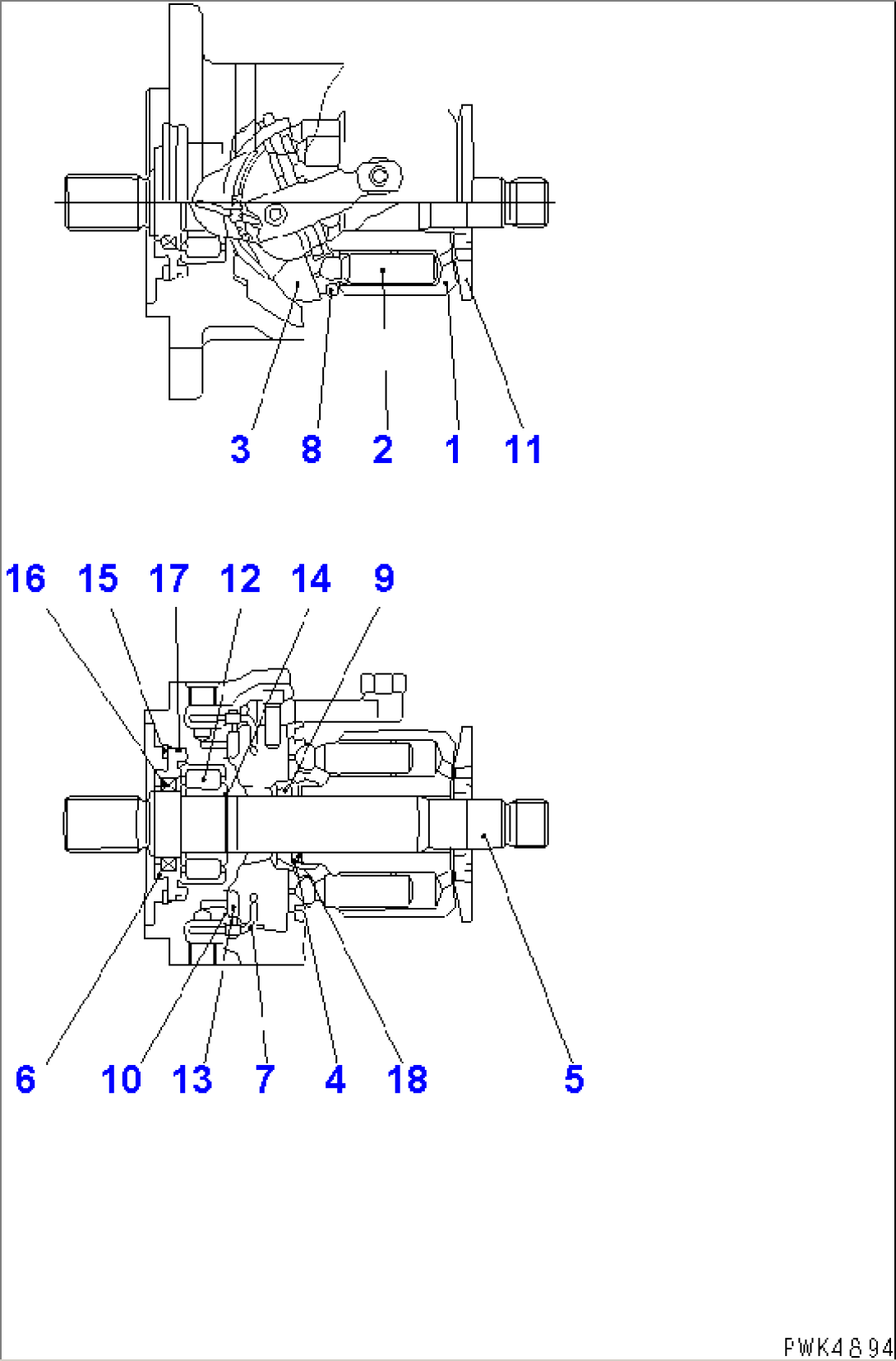

| Item | Part No. | Part Name | Qty | Serial No. |
| (363-17-31402) | PUMP ASS'Y,(A4VG28DA-931-0) | 23001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-01A0 TO Y1610-07A0. | ||||
| (UCBA041S9146-0) | PUMP ASS'Y,PISTON | 23001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-02A0 T0 Y1610-06A0. | ||||
| UC4704375889 | ROTARY ASS'Y | 23001- | ||
| 1 | UC4704354498 | CYLINDER ASS'Y | 23001- | |
| 2 | UC4704315415 | PISTON ASS'Y | 23001- | |
| 3 | UC4704355088 | HANGER ASS'Y | 23001- | |
| 4 | UC1704323552 | SPRING | 23001- | |
| 5 | UC1704152653 | SHAFT | 23001- | |
| 6 | UC1704198246 | CASE,SEAL | 23001- | |
| 7 | UC1704139201 | PIN | 23001- | |
| 8 | UC1704321419 | RETAINER | 23001- | |
| 9 | UC1704313427 | GUIDE | 23001- | |
| 10 | UC1706500494 | GUIDE | 23001- | |
| 11 | UC1100361998 | PLATE,CONTROL | 23001- | |
| 12 | UC1701566059 | BEARING | 23001- | |
| 13 | UC1701566251 | BEARING | 23001- | |
| 14 | 04064-02512 | RING,SNAP | 23001- | |
| 15 | 04065-06825 | RING,SNAP | 23001- | |
| 16 | UC1100354339 | SEAL,OIL | 23001- | |
| 17 | UC1300271009 | O-RING | 23001- | |
| 18 | UC1704350022 | SHIM,0.6MM | 23001- | |
| 18 | UC1100474589 | SHIM,0.7MM | 23001- | |
| 18 | UC1704350013 | SHIM,0.8MM | 23001- | |
| 18 | UC1100474599 | SHIM,0.9MM | 23001- | |
| 18 | UC1704350004 | SHIM,1.0MM | 23001- | |
| 18 | UC1100474609 | SHIM,1.1MM | 23001- | |
| 18 | UC1704329999 | SHIM,1.2MM | 23001- |
