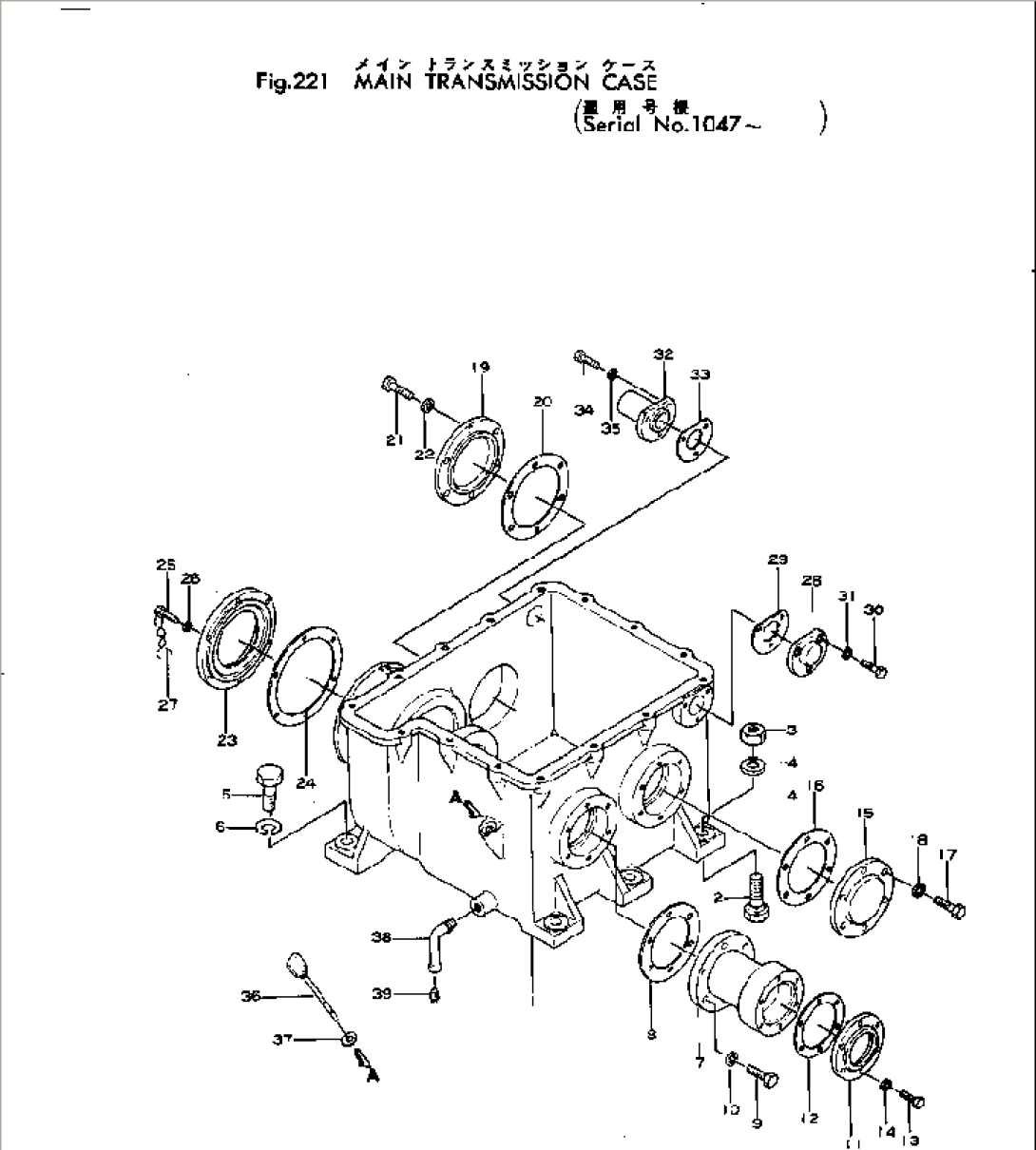

| Item | Part No. | Part Name | Qty | Serial No. |
| 267-30-20004 | TRANSMISSION ASS'Y | 1137- | ||
| 267-30-20003 | TRANSMISSION ASS'Y | 1097-1136 | ||
| 267-30-20002 | TRANSMISSION ASS'Y | 1087-1096 | ||
| 267-30-20001 | TRANSMISSION ASS'Y | 1067-1086 | ||
| 267-30-20000 | TRANSMISSION ASS'Y | 1047-1066 | ||
| 267-30-15001 | CASE ASS'Y | 1067- | ||
| 267-30-15000 | CASE ASS'Y | 1047-1066 | ||
| 1 | 267-30-15112 | CASE | 1067- | |
| 1 | 267-30-15111 | CASE | 1047-1066 | |
| 2 | 267-30-11410 | BOLT | 1047- | |
| 3 | 01500-01613 | NUT | 1047- | |
| 4 | 01601-01640 | WASHER | 1047- | |
| 5 | 01000-01640 | BOLT | 1047- | |
| 6 | 01601-01640 | WASHER | 1047- | |
| 7 | 267-30-16161 | SUPPORT | 1047- | |
| 8 | 267-30-16170 | GASKET | 1047- | |
| 9 | 01000-00830 | BOLT | 1047- | |
| 10 | 01601-00820 | WASHER | 1047- | |
| 11 | 267-30-16131 | CAGE | 1047- | |
| 12 | 267-30-16141 | GASKET | 1047- | |
| 13 | 01000-00620 | BOLT | 1047- | |
| 14 | 01601-00615 | WASHER | 1047- | |
| 15 | 267-30-16320 | COVER | 1047- | |
| 16 | 267-30-16330 | GASKET | 1047- | |
| 17 | 01000-00825 | BOLT | 1047- | |
| 18 | 01601-00820 | WASHER | 1047- | |
| 19 | 267-30-16460 | COVER | 1047- | |
| 20 | 267-30-16450 | GASKET | 1047- | |
| 21 | 01000-00325 | BOLT | 1047- | |
| 22 | 01601-00820 | WASHER | 1047- | |
| 23 | 267-30-16663 | CAGE | 1067- | |
| 23 | 267-30-16662 | CAGE | 1047-1066 | |
| 24 | 267-30-16652 | GASKET | 1047- | |
| 25 | 267-30-16681 | BOLT | 1047- | |
| 26 | 01601-00820 | WASHER | 1047- | |
| 27 | 04059-01040 | WIRE | 1047- | |
| 28 | 267-30-18720 | COVER | 1047- | |
| 29 | 267-30-18730 | GASKET | 1047- | |
| 30 | 01000-00620 | BOLT | 1047- | |
| 31 | 01601-00615 | WASHER | 1047- | |
| 32 | 267-30-18770 | COVER | 1047- | |
| 33 | 267-30-18730 | GASKET | 1047- | |
| 34 | 01000-00620 | BOLT | 1047- | |
| 35 | 01601-00615 | WASHER | 1047- | |
| 36 | 267-30-15200 | GAUGE | 1047- | |
| 37 | 267-30-11420 | GASKET | 1047- | |
| 38 | 265-98-12002 | ELBOW | 1047- | |
| 39 | 07042-00211 | PLUG | 1047- |
