| Item | Part No. | Part Name | Qty | Serial No. |
| (723-48-26301) | CONTROL VALVE | K40692- | ||
| (723-48-26300) | CONTROL VALVE | K40512-K40691 | ||
| (723-48-26102) | CONTROL VALVE | K40001-K40511 | ||

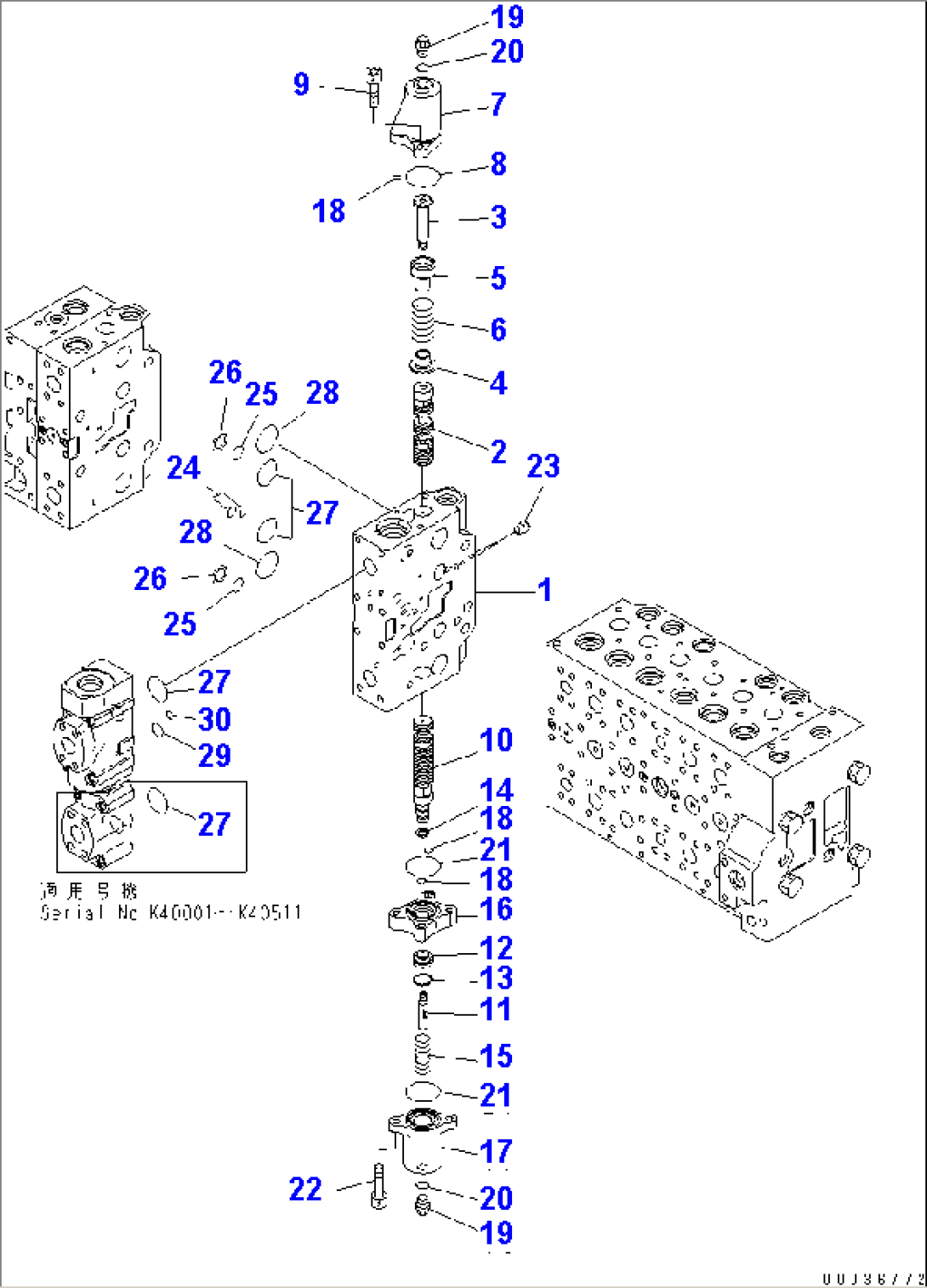

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1664-01A0 TO Y1664-23A0. | ||||
| \6\ | BODY SUB ASS'Y | K40512- | ||
| \6\ | BODY SUB ASS'Y | K40001-K40511 | ||
| 1 | \6\ | BLOCK,VALVE | K40512- | |
| \6\ | BLOCK,VALVE | K40001-K40511 | ||
| 2 | \6\ | SPOOL | K40001- | |
| 3 | 723-46-15390 | PLUG | K40001- | |
| 4 | 723-46-15370 | RETAINER | K40001- | |
| 5 | 723-46-15380 | RETAINER | K40001- | |
| 6 | 723-46-14110 | SPRING | K40001- | |
| 7 | 723-46-17840 | CASE | K40001- | |
| 8 | 07430-71380 | O-RING | K40001- | |
| 9 | 01252-60820 | BOLT | K40001- | |
| 10 | 723-46-22610 | SPOOL | K40001- | |
| 11 | 723-46-15330 | BOLT | K40001- | |
| 12 | 723-46-15340 | PISTON | K40001- | |
| 13 | 723-46-15350 | SEAL | K40001- | |
| 14 | 700-20-71260 | SEAL | K40001- | |
| 15 | 723-46-14180 | SPRING | K40001- | |
| 16 | 723-46-17850 | CASE | K40001- | |
| 17 | 723-46-17860 | CASE | K40001- | |
| 18 | 723-11-19960 | O-RING | K40001- | |
| 19 | 706-73-71450 | PLUG | K40001- | |
| 20 | 07002-11423 | O-RING | K40001- | |
| 21 | 07430-71380 | O-RING | K40001- | |
| 22 | 01252-60845 | BOLT | K40001- | |
| 23 | \6\ | PLUG | K40001- | |
| 24 | 723-46-17530 | O-RING | K40001- | |
| 25 | 723-11-19130 | O-RING | K40001- | |
| 26 | 723-46-17520 | RING,BACK-UP | K40001- | |
| 27 | 07000-13032 | O-RING | K40512- | |
| 07000-13032 | O-RING | K40001-K40511 | ||
| 28 | 723-46-17510 | O-RING | K40001- | |
| 29 | 07000-12016 | O-RING | K40001- | |
| 30 | 702-16-53920 | O-RING | K40001- |
