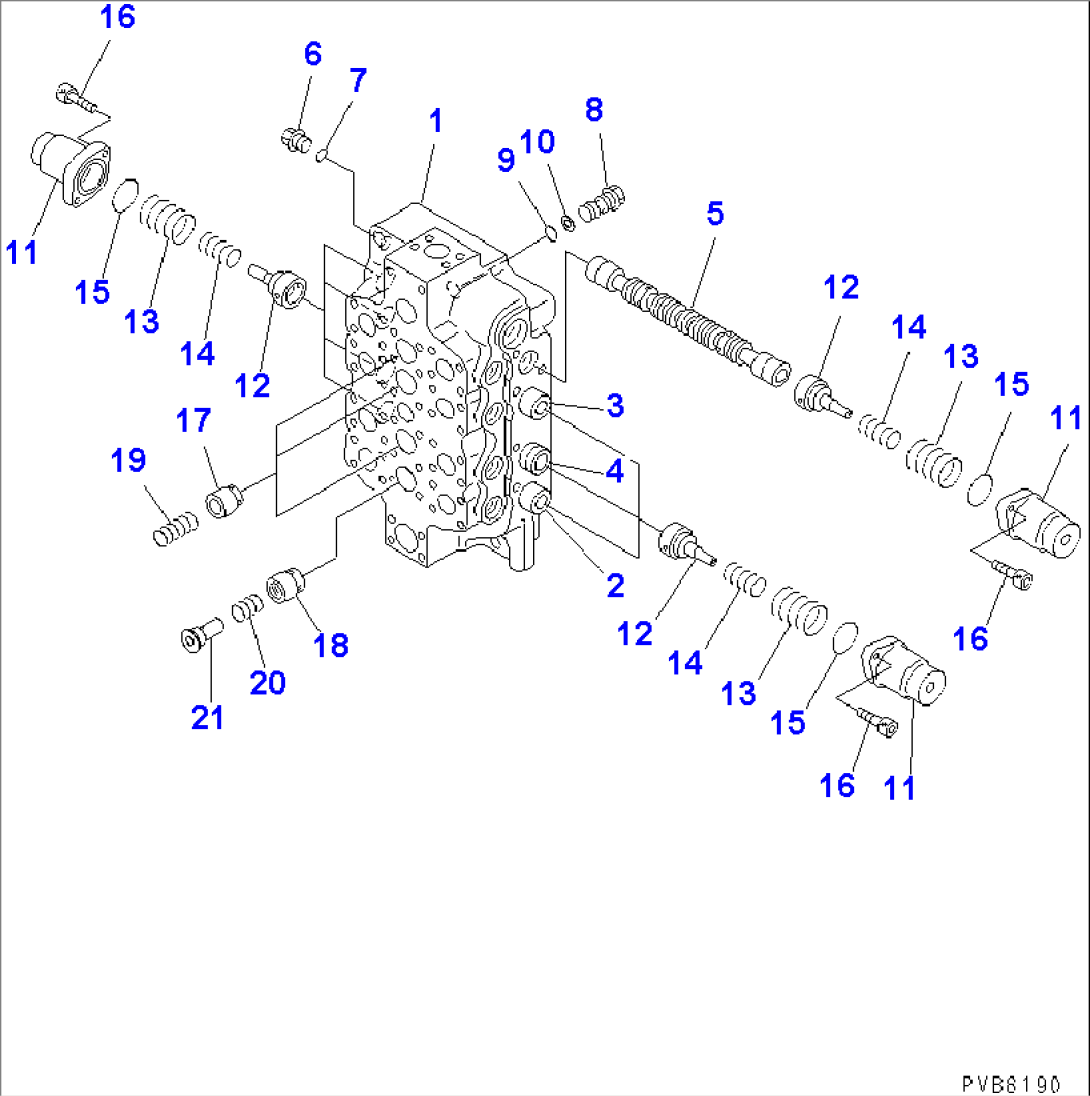

| Item | Part No. | Part Name | Qty | Serial No. |
| 709-14-93403 | CONTROL VALVE | 10204- | ||
| 709-14-93402 | CONTROL VALVE | 10078-10203 | ||
| 709-14-93401 | CONTROL VALVE | 10005-10077 | ||
| 709-14-93400 | CONTROL VALVE | 10001-10004 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1664-01A0 TO Y1664-06A0. | ||||
| \6\ | BODY GROUP ASS'Y | 10204- | ||
| \6\ | BODY GROUP ASS'Y | 10078-10203 | ||
| \6\ | BODY GROUP ASS'Y | 10005-10077 | ||
| \6\ | BODY GROUP ASS'Y | 10001-10004 | ||
| 1 | \6\ | BODY,VALVE | 10001- | |
| 2 | \6\ | SPOOL SUB ASS'Y | 10204- | |
| \6\ | SPOOL SUB ASS'Y | 10078-10203 | ||
| \6\ | SPOOL | 10001-10077 | ||
| 3 | \6\ | SPOOL SUB ASS'Y | 10078- | |
| \6\ | SPOOL | 10001-10077 | ||
| 4 | \6\ | SPOOL SUB ASS'Y | 10078- | |
| \6\ | SPOOL | 10005-10077 | ||
| \6\ | SPOOL | 10001-10004 | ||
| 5 | \6\ | SPOOL | 10001- | |
| 6 | 700-22-11370 | PLUG | 10001- | |
| 7 | 07002-12434 | O-RING | 10001- | |
| 8 | 709-14-11510 | PLUG | 10001- | |
| 9 | 700-80-61260 | O-RING | 10001- | |
| 10 | 700-80-61430 | RING | 10001- | |
| 11 | 709-14-11520 | CASE | 10001- | |
| 12 | 709-14-11530 | RETAINER | 10001- | |
| 13 | 709-14-11550 | SPRING | 10001- | |
| 14 | 709-14-11560 | SPRING | 10001- | |
| 15 | 07000-12065 | O-RING | 10001- | |
| 16 | 01252-61035 | BOLT | 10001- | |
| 17 | 709-12-11411 | VALVE,CHECK | 10001- | |
| 18 | 709-14-11581 | VALVE,CHECK | 10001- | |
| 19 | 709-12-11430 | SPRING | 10001- | |
| 20 | 709-14-11590 | SPRING | 10001- | |
| 21 | 709-14-11610 | SEAT | 10001- |
