| Item | Part No. | Part Name | Qty | Serial No. |
| (723-38-15700) | VALVE ASS'Y | K32001-K35000 | ||
| (723-38-15201) | VALVE ASS'Y | K30545-K31999 | ||

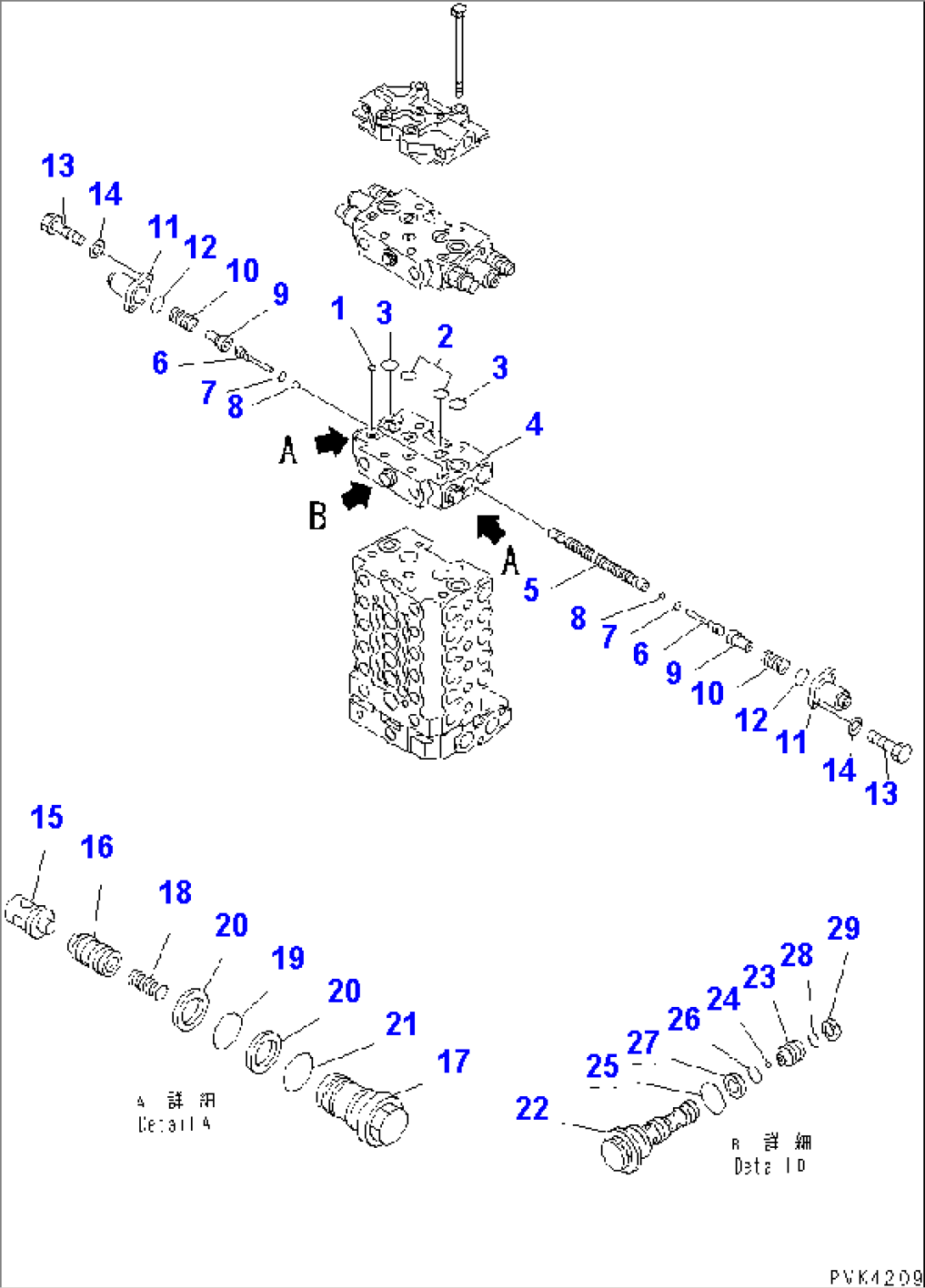

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1664-01A0 TO Y1664-12A0. | ||||
| \6\ | BODY SUB ASS'Y | K30545-K35000 | ||
| 1 | 07000-12014 | O-RING | K30545-K35000 | |
| 2 | 07000-13028 | O-RING | K30545-K35000 | |
| 3 | 07000-13035 | O-RING | K30545-K35000 | |
| 4 | \6\ | BODY | K30545-K35000 | |
| 5 | \6\ | SPOOL | K30545-K35000 | |
| 6 | 723-36-15130 | PLUG | K30545-K35000 | |
| 7 | 07002-10823 | O-RING | K30545-K35000 | |
| 8 | 708-7T-16460 | BALL | K30545-K35000 | |
| 9 | 723-36-15120 | RETAINER | K30545-K35000 | |
| 10 | 723-36-14110 | SPRING | K30545-K35000 | |
| 11 | 723-36-15110 | CASE | K30545-K35000 | |
| 12 | 723-36-15170 | O-RING | K30545-K35000 | |
| 13 | 01252-60622 | BOLT | K30545-K35000 | |
| 14 | 01641-20608 | WASHER | K30545-K35000 | |
| 15 | 723-36-41110 | VALVE | K30545-K35000 | |
| 723-36-40400 | VALVE ASS'Y | K30545-K35000 | ||
| 16 | 723-36-41510 | PISTON SUB ASS'Y | K30545-K35000 | |
| 17 | 723-36-41310 | SLEEVE | K30545-K35000 | |
| 18 | 723-36-41960 | SPRING | K30545-K35000 | |
| 19 | 700-80-61260 | O-RING | K30545-K35000 | |
| 20 | 700-80-61430 | RING | K30545-K35000 | |
| 21 | 07002-13034 | O-RING | K30545-K35000 | |
| 723-30-66200 | VALVE ASS'Y | K30545-K35000 | ||
| 22 | \6\ | PLUG | K30545-K35000 | |
| 23 | \6\ | SEAT | K30545-K35000 | |
| 24 | \6\ | BALL | K30545-K35000 | |
| 25 | 07002-12434 | O-RING | K30545-K35000 | |
| 26 | 07000-12012 | O-RING | K30545-K35000 | |
| 27 | 07001-02012 | RING,BACK-UP | K30545-K35000 | |
| 28 | 07000-12010 | O-RING | K30545-K35000 | |
| 29 | 07001-02010 | RING | K30545-K35000 |
