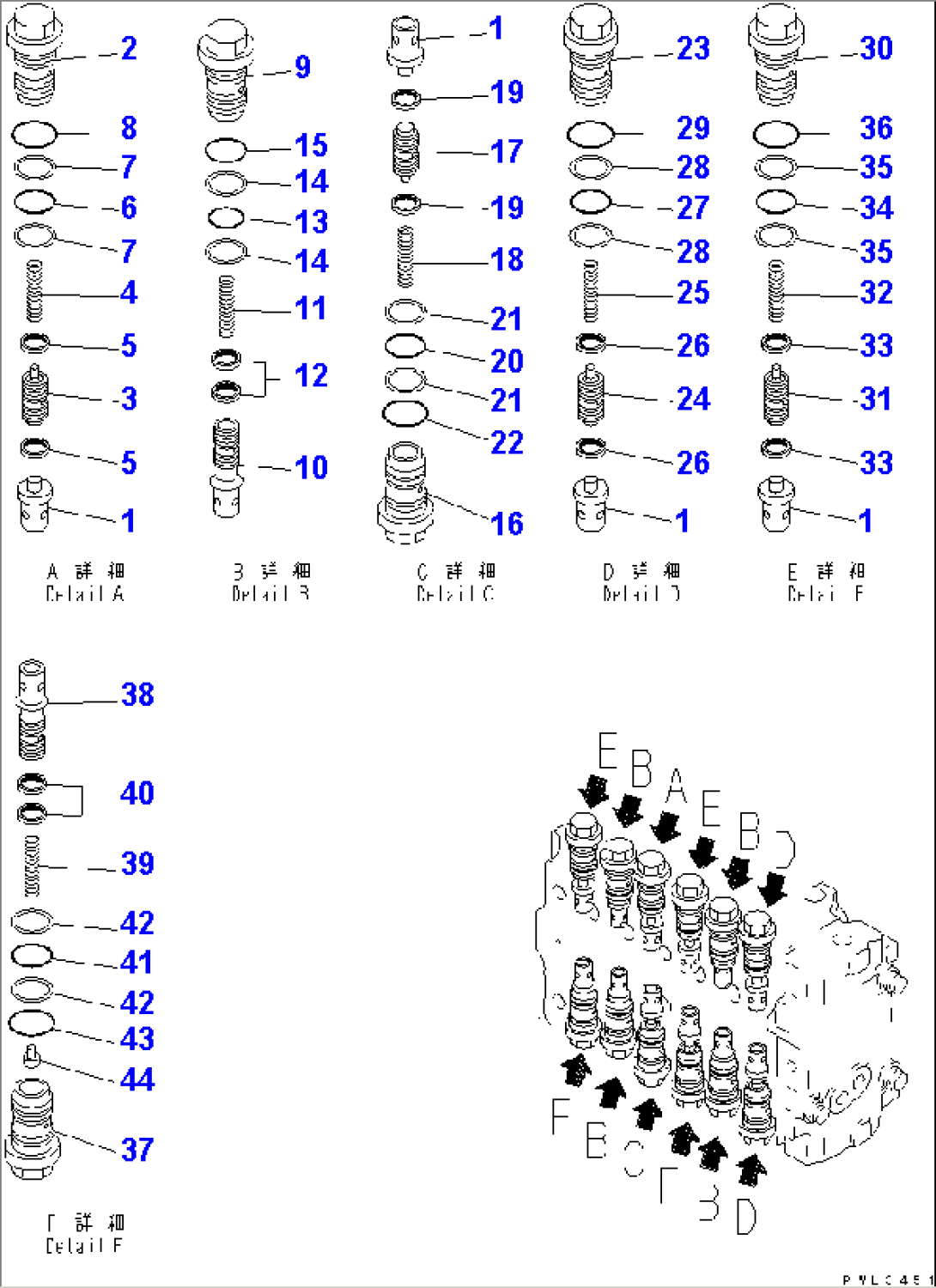

| Item | Part No. | Part Name | Qty | Serial No. |
| (723-48-19501) | CONTROL VALVE | 12223- | ||
| (723-48-19500) | CONTROL VALVE | 12215-12222 | ||
| (723-48-19202) | CONTROL VALVE | 12197-12214 | ||
| (723-48-19201) | CONTROL VALVE | 12104-12196 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1664-21A0 TO Y1664-35A0. | ||||
| \6\ | BODY SUB ASS'Y | 12223- | ||
| \6\ | BODY SUB ASS'Y | 12215-12222 | ||
| \6\ | BODY SUB ASS'Y | 12197-12214 | ||
| \6\ | BODY SUB ASS'Y | 12104-12196 | ||
| 1 | 723-46-41110 | VALVE | 10001- | |
| 723-46-40100 | VALVE ASS'Y | 10001- | ||
| 2 | \6\ | SLEEVE | 10001- | |
| 3 | \6\ | PISTON SUB ASS'Y | 10001- | |
| 4 | \6\ | SPRING | 10001- | |
| 5 | \6\ | SEAL | 10001- | |
| 6 | 700-93-11320 | O-RING | 10001- | |
| 7 | 723-46-41950 | RING | 10001- | |
| 8 | 07002-13634 | O-RING | 10001- | |
| 723-46-42500 | VALVE ASS'Y | 12223- | ||
| 723-46-40901 | VALVE ASS'Y | 12197-12222 | ||
| 723-46-40900 | VALVE ASS'Y | 12104-12196 | ||
| 9 | \6\ | SLEEVE | 12223- | |
| \6\ | SLEEVE | 12197-12222 | ||
| \6\ | SLEEVE | 10001-12196 | ||
| 10 | \6\ | VALVE | 12223- | |
| \6\ | VALVE | 12197-12222 | ||
| \6\ | VALVE | 12104-12196 | ||
| 11 | \6\ | SPRING | 10001- | |
| 12 | \6\ | SEAL | 12223- | |
| \6\ | SEAL | 10001-12222 | ||
| 13 | 700-93-11320 | O-RING | 10001- | |
| 14 | 723-46-41950 | RING | 10001- | |
| 15 | 07002-13634 | O-RING | 10001- | |
| 723-46-40601 | VALVE ASS'Y | 10001- | ||
| 16 | \6\ | SLEEVE | 10001- | |
| 17 | \6\ | PISTON SUB ASS'Y | 10001- | |
| 18 | \6\ | SPRING | 10001- | |
| 19 | \6\ | SEAL | 10001- | |
| 20 | 700-93-11320 | O-RING | 10001- | |
| 21 | 723-46-41950 | RING | 10001- | |
| 22 | 07002-13634 | O-RING | 10001- | |
| 723-46-44100 | VALVE ASS'Y | 10001- | ||
| 23 | \6\ | SLEEVE | 10001- | |
| 24 | \6\ | PISTON SUB ASS'Y | 10001- | |
| 25 | \6\ | SPRING | 10001- | |
| 26 | \6\ | SEAL | 10001- | |
| 27 | 700-93-11320 | O-RING | 10001- | |
| 28 | 723-46-41950 | RING | 10001- | |
| 29 | 07002-13634 | O-RING | 10001- | |
| 723-46-45100 | VALVE ASS'Y | 10001- | ||
| 30 | \6\ | SLEEVE | 10001- | |
| 31 | \6\ | PISTON SUB ASS'Y | 10001- | |
| 32 | \6\ | SPRING | 10001- | |
| 33 | \6\ | SEAL | 10001- | |
| 34 | 700-93-11320 | O-RING | 10001- | |
| 35 | 723-46-41950 | RING | 10001- | |
| 36 | 07002-13634 | O-RING | 10001- | |
| 723-46-45200 | VALVE ASS'Y | 10001- | ||
| 37 | \6\ | SLEEVE | 10001- | |
| 38 | \6\ | VALVE SUB ASS'Y | 10001- | |
| 39 | \6\ | SPRING | 10001- | |
| 40 | \6\ | SEAL | 10001- | |
| 41 | 700-93-11320 | O-RING | 10001- | |
| 42 | 723-46-41950 | RING | 10001- | |
| 43 | 07002-13634 | O-RING | 10001- | |
| 44 | 723-46-41980 | RETAINER | 10001- |
