| Item | Part No. | Part Name | Qty | Serial No. |
| (723-24-10900) | VALVE ASS'Y | 1085- | ||
| (723-24-10702) | VALVE ASS'Y | 1047-1084 | ||
| (723-24-10701) | VALVE ASS'Y | 1001-1046 | ||

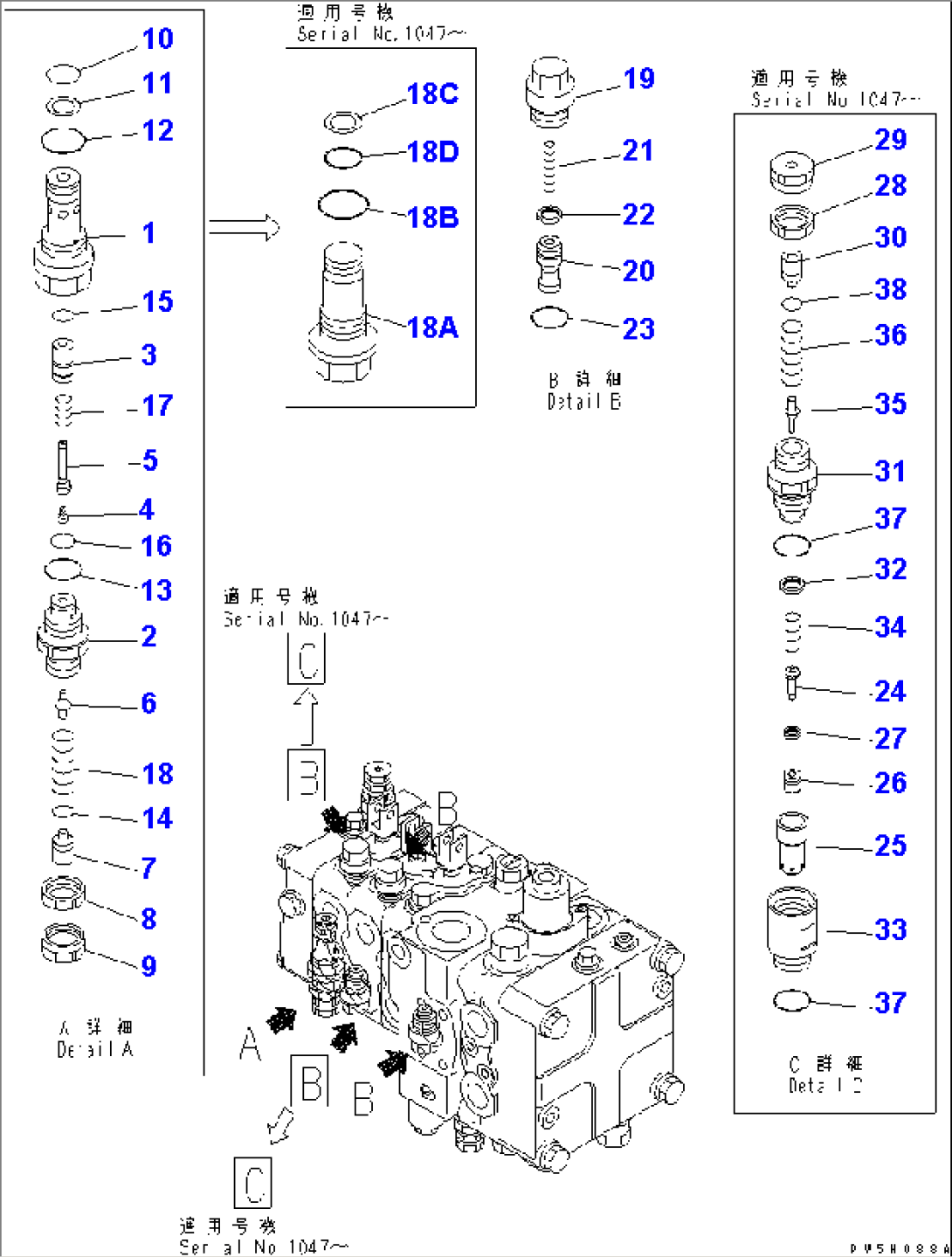

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1664-61A0 TO Y1664-72A0. | ||||
| 723-20-63300 | VALVE ASS'Y,RELIEF | 1001-1046 | ||
| 1 | \6\ | SLEEVE | 1001-1046 | |
| 2 | \6\ | PLUG | 1001-1046 | |
| 3 | \6\ | POPPET | 1001-1046 | |
| 4 | \6\ | SEAT | 1001-1046 | |
| 5 | \6\ | PISTON | 1001-1046 | |
| 6 | \6\ | POPPET | 1001-1046 | |
| 7 | \6\ | SPACER | 1001-1046 | |
| 8 | \6\ | NUT | 1001-1046 | |
| 9 | \6\ | NUT | 1001-1046 | |
| 10 | 700-22-11410 | O-RING | 1001-1046 | |
| 11 | 700-80-64220 | RING | 1001-1046 | |
| 12 | 07002-12434 | O-RING | 1001-1046 | |
| 13 | \6\ | O-RING | 1001-1046 | |
| 14 | \6\ | O-RING | 1001-1046 | |
| 15 | \6\ | SEAL | 1001-1046 | |
| 16 | \6\ | SEAL | 1001-1046 | |
| 17 | \6\ | SPRING | 1001-1046 | |
| 18 | \6\ | SPRING | 1001-1046 | |
| 18A | 723-46-15240 | PLUG | 1047- | |
| 18B | 07002-12434 | O-RING | 1047- | |
| 18C | 700-80-64220 | RING | 1047- | |
| 18D | 700-22-11410 | O-RING | 1047- | |
| 723-20-80100 | VALVE ASS'Y,SUCTION | 1047- | ||
| 723-20-80100 | VALVE ASS'Y,SUCTION | 1001-1046 | ||
| 19 | \6\ | SLEEVE | 1001- | |
| 20 | \6\ | VALVE | 1001- | |
| 21 | \6\ | SPRING | 1001- | |
| 22 | \6\ | SEAL | 1001- | |
| 23 | 07002-12034 | O-RING | 1001- | |
| 723-20-63700 | VALVE ASS'Y,RELIEF | 1047- | ||
| 24 | \6\ | PISTON | 1047- | |
| 25 | \6\ | SLEEVE | 1047- | |
| 26 | \6\ | POPPET | 1047- | |
| 27 | \6\ | SEAL | 1047- | |
| 28 | \6\ | NUT | 1047- | |
| 29 | \6\ | NUT | 1047- | |
| 30 | \6\ | SPACER | 1047- | |
| 31 | \6\ | PLUG | 1047- | |
| 32 | \6\ | SEAL | 1047- | |
| 33 | \6\ | SLEEVE | 1047- | |
| 34 | \6\ | SPRING | 1047- | |
| 35 | \6\ | POPPET | 1047- | |
| 36 | \6\ | SPRING | 1047- | |
| 37 | 07002-12034 | O-RING | 1047- | |
| 38 | \6\ | O-RING | 1047- |
