| Item | Part No. | Part Name | Qty | Serial No. |
| (723-4A-17200) | CONTROL VALVE | 1013- | ||

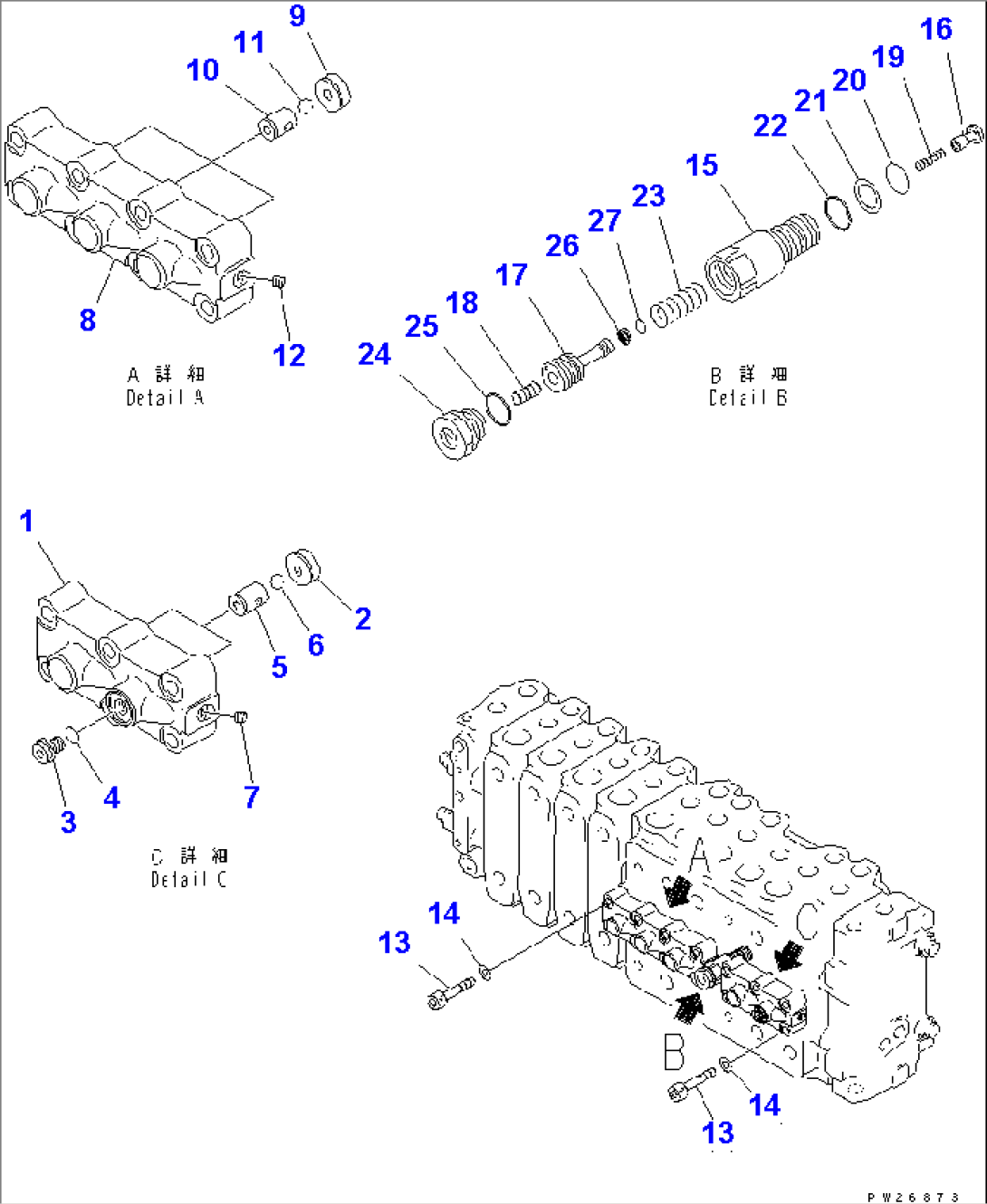

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6231 TO 6247. | ||||
| 723-40-66100 | VALVE ASS'Y | 1013- | ||
| 1 | \6\ | CASE | 1013- | |
| 2 | \6\ | SEAT | 1013- | |
| 3 | 708-8E-16160 | PLUG | 1013- | |
| 4 | 07002-11023 | O-RING | 1013- | |
| 5 | \6\ | SEAT | 1013- | |
| 6 | \6\ | BALL | 1013- | |
| 7 | \6\ | PLUG | 1013- | |
| 723-40-66200 | VALVE ASS'Y | 1013- | ||
| 8 | \6\ | CASE | 1013- | |
| 9 | \6\ | SEAT | 1013- | |
| 10 | \6\ | SEAT | 1013- | |
| 11 | \6\ | BALL | 1013- | |
| 12 | \6\ | PLUG | 1013- | |
| 13 | 01252-61050 | BOLT | 1013- | |
| 14 | 01643-51032 | WASHER | 1013- | |
| 723-40-60101 | VALVE ASS'Y | 1013- | ||
| 15 | \6\ | SLEEVE | 1013- | |
| 16 | \6\ | VALVE | 1013- | |
| 17 | \6\ | PISTON | 1013- | |
| 18 | \6\ | PISTON | 1013- | |
| 19 | \6\ | SPRING | 1013- | |
| 20 | 07000-12020 | O-RING | 1013- | |
| 21 | 07001-02020 | RING,BACK-UP | 1013- | |
| 22 | 709-25-11390 | O-RING | 1013- | |
| 23 | \6\ | SPRING | 1013- | |
| 24 | \6\ | PLUG | 1013- | |
| 25 | \6\ | O-RING | 1013- | |
| 26 | \6\ | SEAL | 1013- | |
| 27 | \6\ | O-RING | 1013- |
