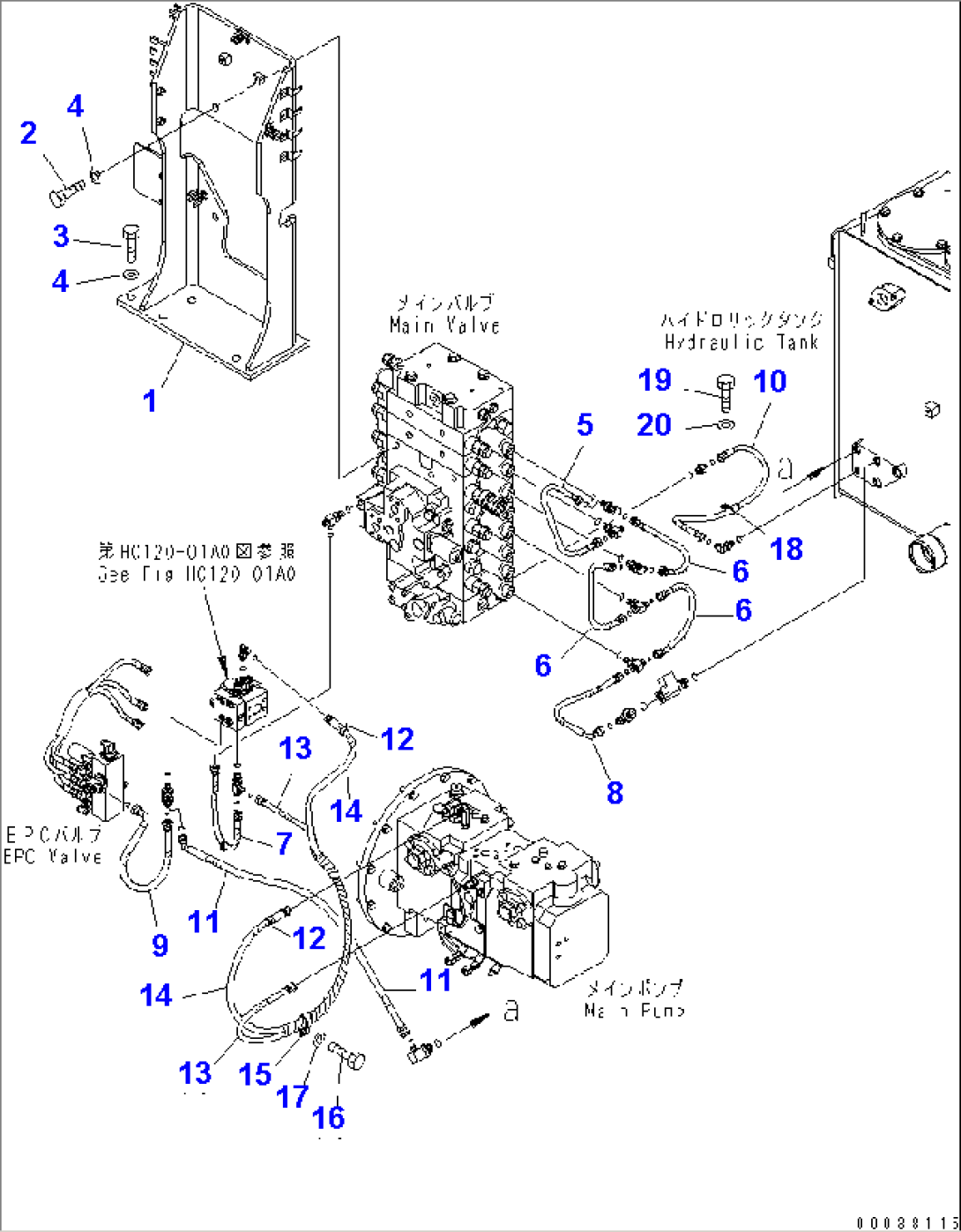

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8240-62-1113 | BRACKET | 1006- | |
| 2 | 01010-81645 | BOLT | 1084- | |
| 3 | 01010-81640 | BOLT | 1084- | |
| 4 | 01643-31645 | WASHER | 1001- | |
| 5 | 02760-00203 | HOSE | 1001- | |
| 6 | 02760-002A3 | HOSE | 1001- | |
| 7 | 02760-00204 | HOSE | 1001- | |
| 8 | 02761-00204 | HOSE | 1001- | |
| 9 | 02761-003A4 | HOSE | 1001- | |
| 10 | 02760-002A7 | HOSE, 750MM | 1001- | |
| 11 | 02764-003A4 | HOSE | 1001- | |
| 12 | 20Y-62-22810 | BAND, YELLOW | 1001- | |
| 13 | 02760-00214 | HOSE, 1400MM | 1001- | |
| 14 | 02777-00216 | HOSE | 1001- | |
| 15 | 04435-51612 | CLIP | 1001- | |
| 16 | 01010-81230 | BOLT | 1001- | |
| 17 | 01643-31232 | WASHER | 1001- | |
| 18 | 04434-51312 | CLIP | 1001- | |
| 19 | 01010-81230 | BOLT | 1001- | |
| 20 | 01643-31232 | WASHER | 1001- |
