| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-62-33560 | ELBOW | A36001- | |
| 2 | 07042-30108 | PLUG | A36001- | |
| 3 | 07002-12034 | O-RING | A36001- | |
| 4 | HOSE,(SEE FIG. H4200-09A1) | A36001- | ||
| 5 | HOSE,(SEE FIG. H4200-09A1) | A36001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa450 5l s/n a36001 up
- Hydraulic system
- Main valve (elbow) (for 3 spool valve)
Поиск по каталогу

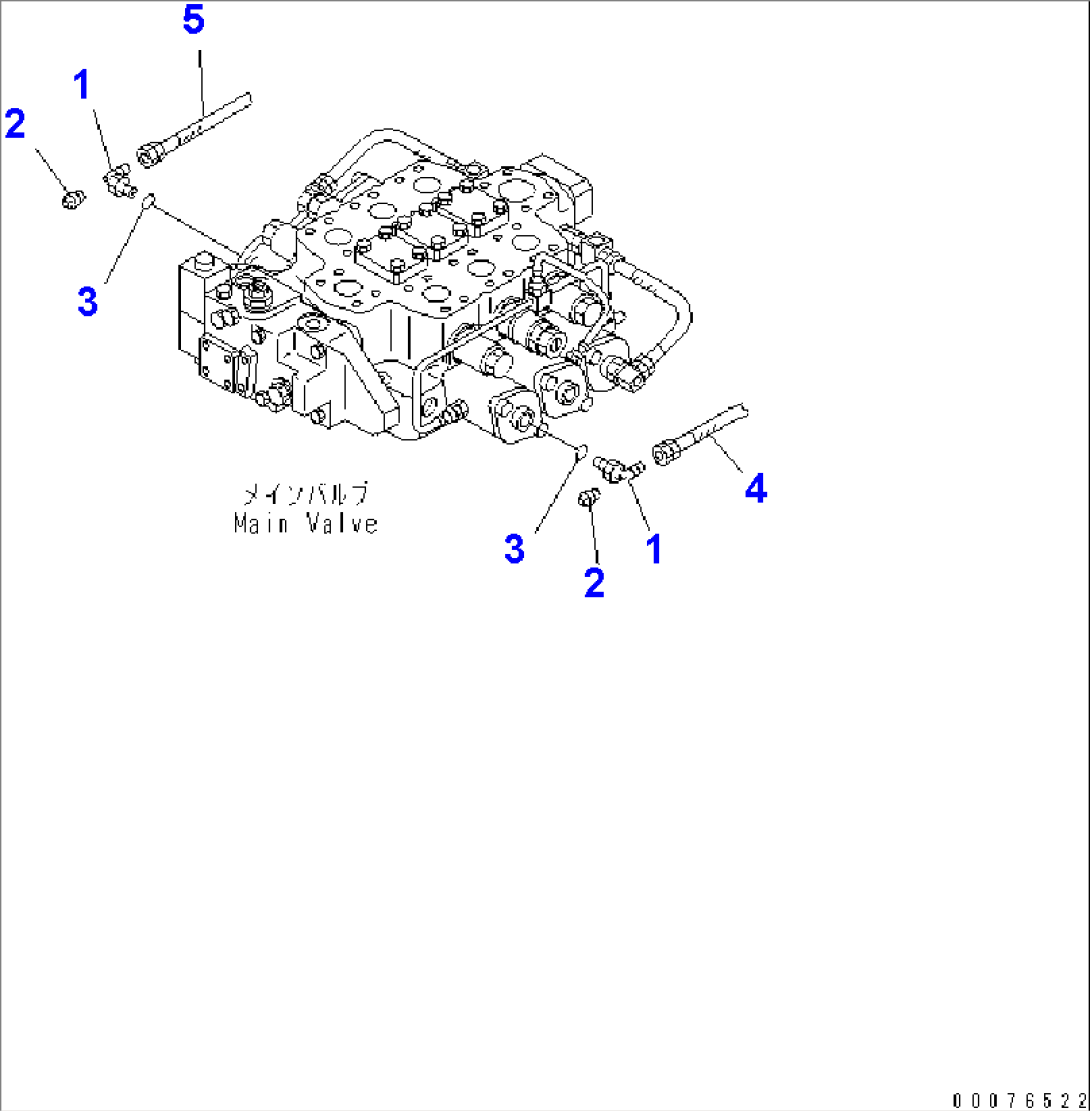

MAIN VALVE (ELBOW) (FOR 3-SPOOL VALVE)
