| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07040-11409 | PLUG | 1001- | |
| 2 | 07002-01423 | O-RING | 1001- | |
| 3 | 07040-12412 | PLUG | 1001- | |
| 4 | 07002-12434 | O-RING | 1001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc128uu 1 s/n 1001 up
- Hydraulic system
- Main valve (plug) (1 actuater attachiment) (chassis not piping)
Поиск по каталогу

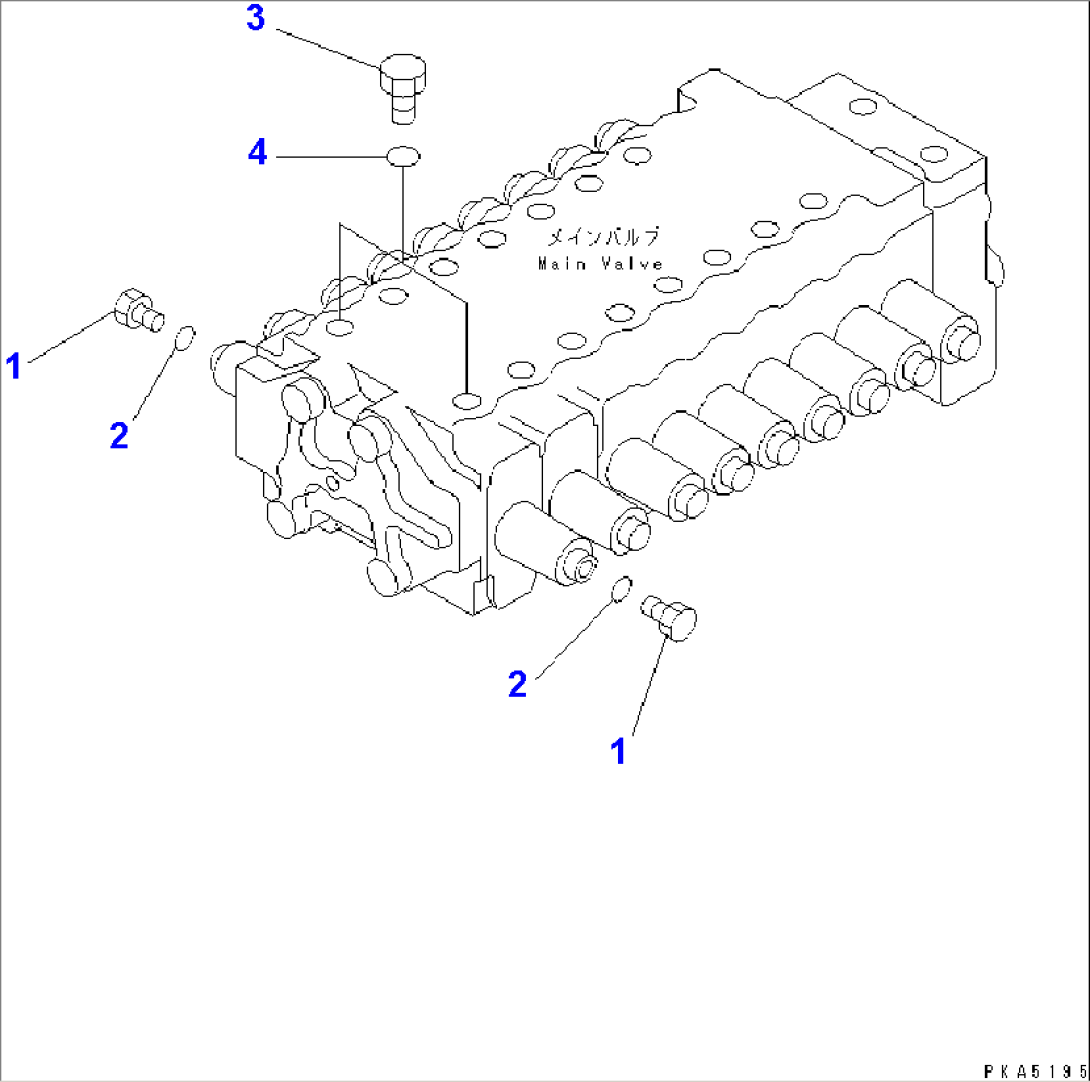

MAIN VALVE (PLUG) (1-ACTUATER ATTACHIMENT) (CHASSIS NOT PIPING)
