| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22L-62-24930 | HOSE,GREENä YELLOW | 30001- | |
| 2 | 20U-62-22190 | O-RING | 30001- | |
| 3 | 22L-62-24930 | HOSE,BLACKä YELLOW | 30001- | |
| 4 | 20U-62-22190 | O-RING | 30001- | |
| 5 | 22L-62-24930 | HOSE,ORANGEä YELLOW | 30001- | |
| 6 | 20U-62-22190 | O-RING | 30001- | |
| 7 | 22L-62-24930 | HOSE,BROWNä YELLOW | 30001- | |
| 8 | 20U-62-22190 | O-RING | 30001- | |
| 9 | 22L-62-24242 | HOSE,YELLOW | 30001- | |
| 10 | 22F-62-34550 | HOSE,BLACK | 30001- | |
| 11 | 22F-62-34550 | HOSE,ORANGE | 30001- | |
| 12 | 22L-62-24270 | HOSE,GREEN | 30001- | |
| 13 | 22F-62-34560 | HOSE,RED | 30001- | |
| 14 | 22L-62-24290 | HOSE,BLUE | 30001- | |
| 15 | 22L-62-24310 | HOSE,WHITE | 30001- | |
| 16 | 22F-62-34260 | HOSE,WHITEä RED | 30001- | |
| 17 | 22L-62-24930 | HOSE,WHITEä BLUE | 30001- | |
| 18 | 22F-62-34570 | HOSE,BROWN | 30001- | |
| 19 | 21U-62-34710 | BANDä YELLOW | 30001- | |
| 20 | 21U-62-34720 | BANDä BLACK | 30001- | |
| 21 | 21U-62-34730 | BANDä GREEN | 30001- | |
| 22 | 21U-62-34740 | BANDä ORANGE | 30001- | |
| 23 | 21U-62-34750 | BANDä BLUE | 30001- | |
| 24 | 21U-62-34760 | BANDä RED | 30001- | |
| 25 | 21U-62-34770 | BANDä WHITE | 30001- | |
| 26 | 21U-62-34780 | BANDä BROWN | 30001- | |
| 27 | 20P-62-72380 | SHEET | 30001- | |
| 28 | 08034-20823 | BAND | 30001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc30mr 3 s/n 30001 up (canopy spec.)
- Hydraulic system

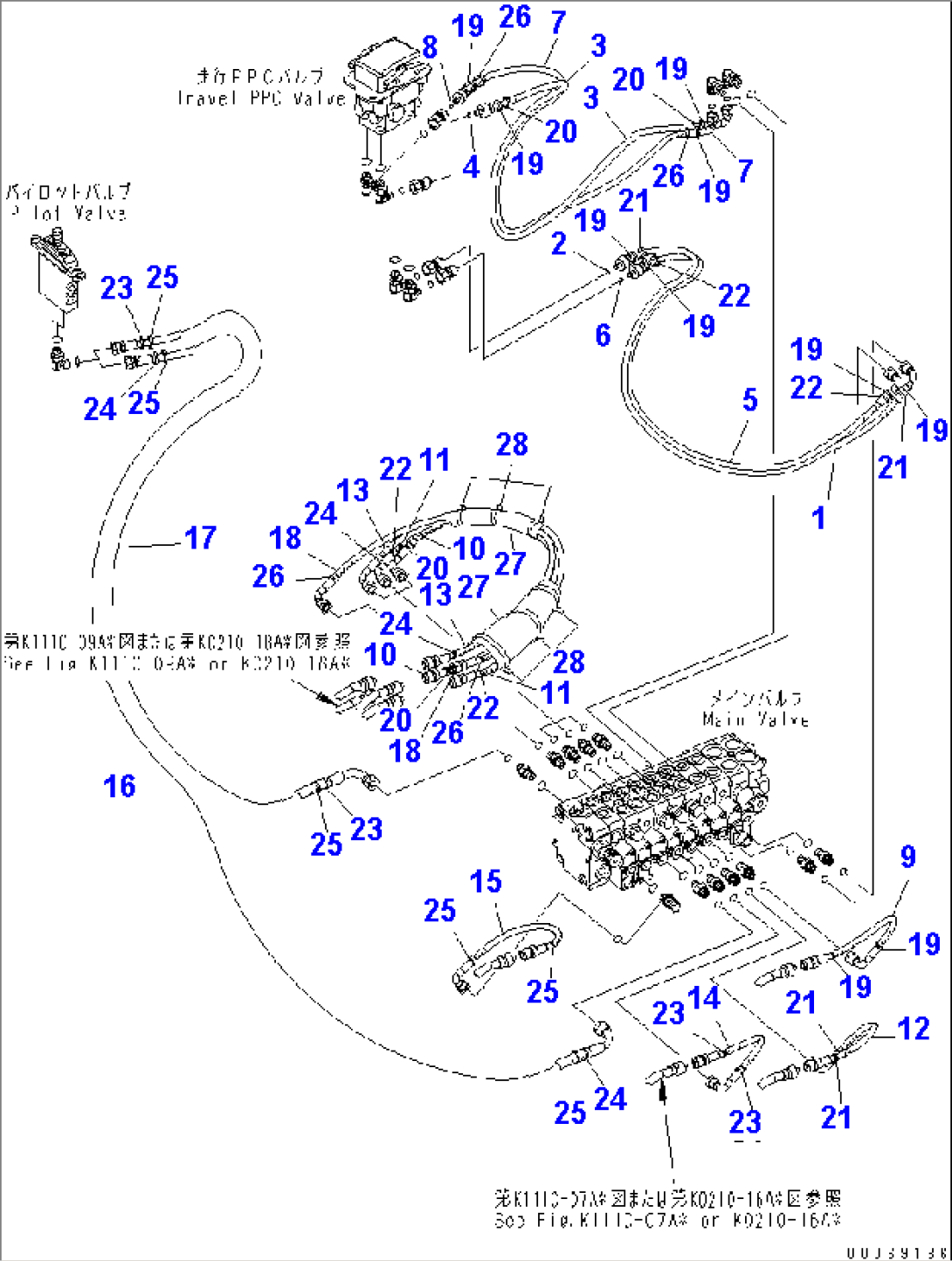

- Main valve (ppc line)
