| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-62-56190 | FLANGE | 70001- | |
| 2 | 07000-13035 | O-RING | 70001- | |
| 3 | 07372-21040 | BOLT | 70001- | |
| 4 | 01643-51032 | WASHER | 70001- | |
| 5 | 02789-00210 | PLUG | 70001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc450 8 s/n 70001 70003
- Hydraulic system
- Main valve (service valve plug) (1 actuator) (with drift preventive) (piping less)(#70001 )
Поиск по каталогу

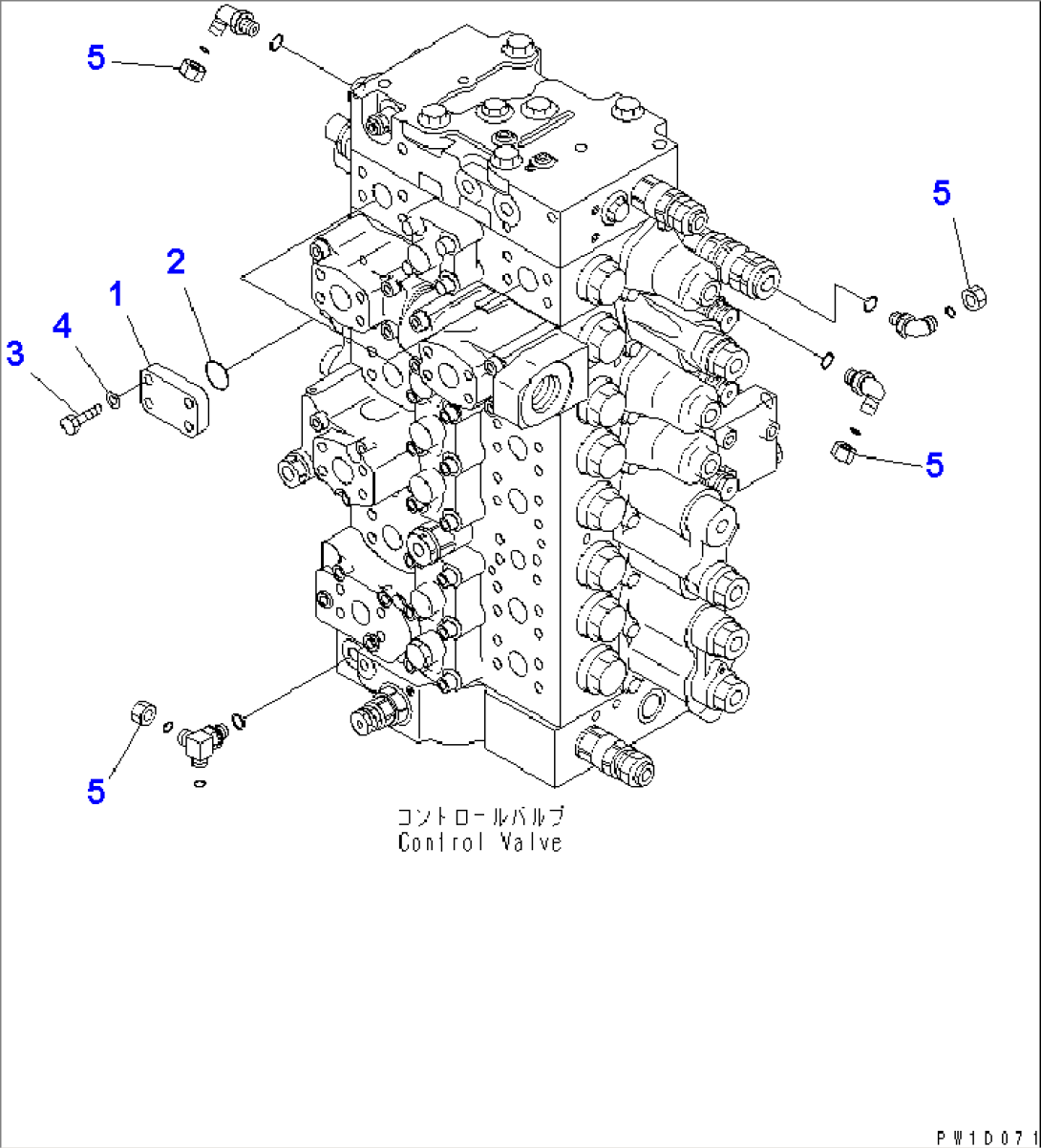

MAIN VALVE (SERVICE VALVE PLUG) (1 ACTUATOR) (WITH DRIFT PREVENTIVE) (PIPING LESS)(#70001-)
