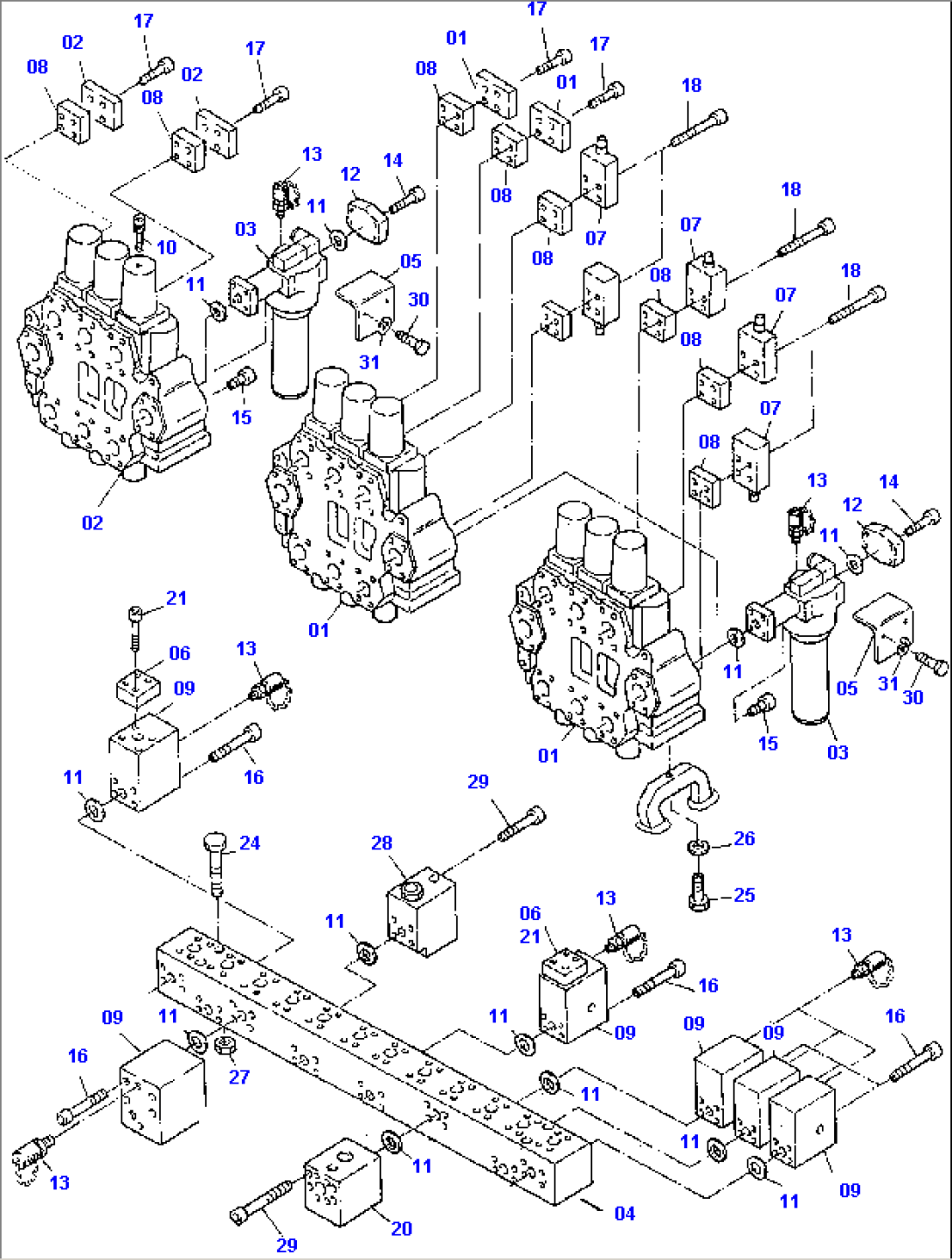

Item | Part No. | Part Name | Qty | Serial No. |
01 | Control block | |||
02 | Control block | |||
03 | H.P. filter | |||
04 | 594 117 40 | Distribution block | ||
05 | 575 041 40 | Yoke | ||
06 | 414 972 40 | Valve mounting kit | ||
07 | Pressure relief valve | |||
08 | Anticavitation valve | |||
09 | Pressure relief valve | |||
10 | 168 432 40 | Release valve | ||
11 | 356 209 40 | Quadring | ||
12 | 506 581 98 | Plug | ||
13 | 153 646 40 | Test coupling | ||
14 | 319 288 99 | Bolt | ||
15 | 319 297 99 | Bolt | ||
16 | 319 212 99 | Bolt | ||
17 | 319 431 99 | Bolt | ||
18 | 319 265 99 | Bolt | ||
Bullclam bucket parts | ||||
20 | Diffuser see page 116-1840d,etc. fig-no. 13 | |||
Backhoe parts | ||||
20 | Flow control valve see page 116-1842c,etc. fig-no. 16 | |||
21 | 319 483 99 | Bolt | ||
24 | 304 114 99 | Bolt | ||
25 | 308 885 99 | Bolt | ||
26 | 316 212 99 | Washer | ||
27 | 334 601 99 | Nut | ||
28 | Flow control valve | |||
29 | 319 302 99 | Bolt | ||
30 | 307 859 99 | Bolt | ||
31 | 346 501 99 | Lock washer |
