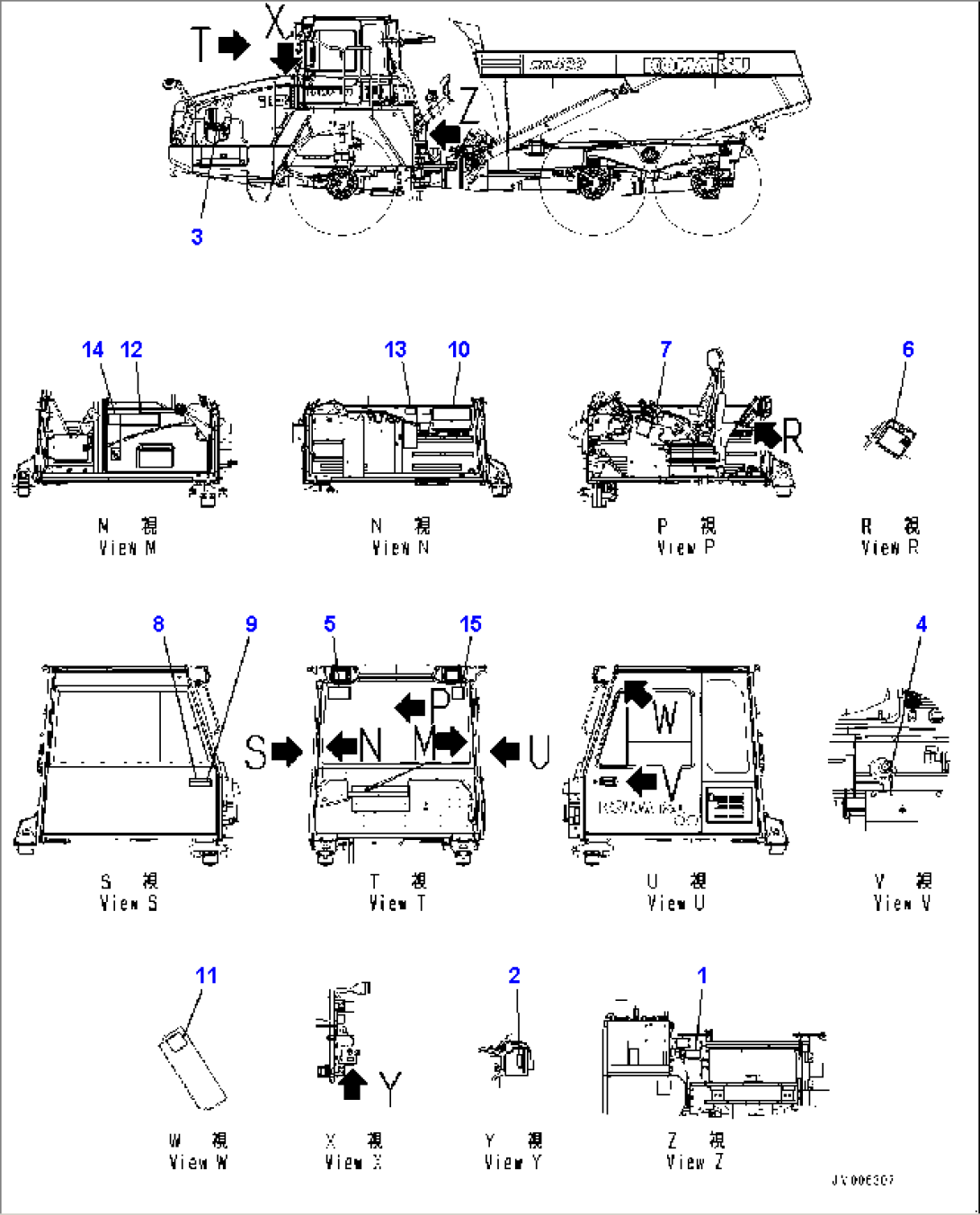

Marks and Name Plates, (3/3) (#10001-)
Komatsu HM400-5 S/N 10001-UP · MARKS AND PLATES
Схема узла недоступна. Номера деталей, количество и применимость по серийным номерам — в таблице. Номера со значком ✓ есть в разделе «Наличие».
| Поз. | Номер детали | Наименование | Кол-во | Серийный номер |
|---|---|---|---|---|
| 1 | 09602-10002 | Plate, Name (Limited Supply) | 10001- | |
| 04418-13060 | Screw | 10001- | ||
| 2 | 56B-93-55470 | Plate, Coolant Level | 10001- | |
| 3 | 56B-93-55190 | Plate, Air Conditioner | 10001- | |
| 4 | 561-93-65380 | Plate, Starting Switch | 10001- | |
| 5 | 56B-93-15130 | Plate, Notice, Driving Over Long Distance | 10001- | |
| 6 | 56B-93-55140 | Plate, Relay Box and Fuse Box | 10001- | |
| 7 | 09963-05001 | Tag, Danger, Do Not Operate | 10001- | |
| 8 | 09620-A2009 | Plate, Warning, ROPS/FOPS | 10001- | |
| 8 | 205-00-72430 | Rivet | 10001- | |
| 9 | 09620-A2101 | Plate, Warning, ROPS/FOPS | 10001- | |
| 10 | 56B-93-55480 | Plate Assembly | 10001- | |
| 11 | 569-93-82150 | Plate, Notice, Body Control Lever Position | 10001- | |
| 12 | 569-93-81650 | Plate Assembly | 10001- | |
| 13 | 56D-93-31410 | Plate, Warning, Explosion Hazard | 10001- | |
| 14 | 56B-93-55120 | Plate, Notice, Tire Air Pressure | 10001- | |
| 15 | 56B-93-55460 | Plate, Retarding Guidelines | 10001- |
