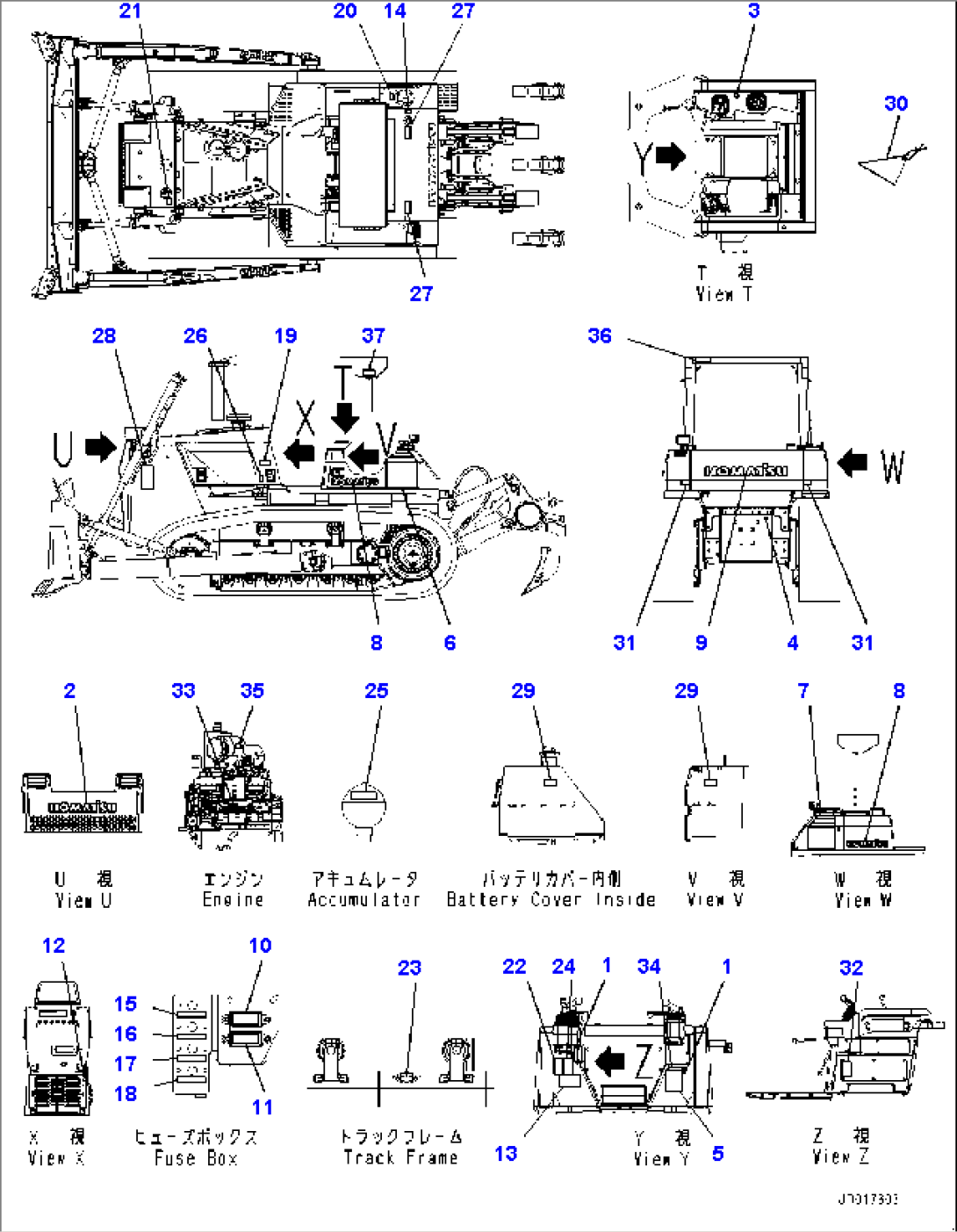

Item | Part No. | Part Name | Qty | Serial No. |
1 | 14X-98-11170 | Plate, Symbol, Lock/Unlock, Lock | | 11609- |
2 | 09690-F0630 | Plate, Komatsu Logo, Front | | 11609- |
3 | 17A-98-11180 | Plate, Symbol, Horn Switch, Horn | | 11609- |
4 | 09690-M0063 | Plate, Komatsu Logo | | 11609-11799 |
5 | 154-98-75180 | Plate, Oil Chart, Oil Chart | | 11609- |
6 | 154-98-71310 | Mark, D85PX | | 11609- |
7 | 154-98-71320 | Mark, D85PX | | 11609- |
8 | 09690-P0630 | Plate, Komatsu Logo | | 11609- |
9 | 09690-P1120 | Plate, Komatsu Logo | | 11609- |
10 | 154-98-75111 | Plate, Fuse | | 11609- |
11 | 154-98-75121 | Plate, Fuse | | 11609- |
12 | 14X-54-38240 | Plate, Breaker | | 11609- |
13 | (09602-10001) | Plate, Name (Limited Supply) | | 11609- |
| 04418-13060 | Screw | | 11609- |
14 | 09669-0000E | Plate, Symbol, Fuel Filler | | 11609- |
15 | 154-98-75130 | Plate, Main Power | | 11609- |
16 | 154-98-75140 | Plate, Engine Controller | | 11609- |
17 | 154-98-75151 | Plate, Ribbon Heater | | 11609- |
18 | 154-98-75160 | Plate, Continuous PW | | 11609- |
19 | 20Y-00-41530 | Plate, Symbol, Ecot3, Ecot 3 | | 11609- |
20 | 09653-01001 | Plate, Warning, High Temperature | | 11609- |
21 | 09668-01001 | Plate, Warning, Hot Water | | 11609- |
22 | 09654-31001 | Plate, Warning, Before Leaving Seat | | 11609- |
23 | 09657-01004 | Plate, Warning, Track Adjustment | | 11609- |
24 | 09651-01001 | Plate, Warning, Read Manual Before Operating, Safety, Accumulator | | 11609- |
25 | 09659-51000 | Plate, Warning, Explosion Hazard | | 11609- |
26 | 09667-01001 | Plate, Caution, Rotating Object | | 11609- |
27 | 17A-98-23930 | Plate, Caution, Do Not Get On, Safety | | 11609- |
28 | 09812-01000 | Plate, Danger, Keep a Safe Distance | | 11609- |
29 | 09808-01000 | Plate, Warning, Battery Cables | | 11609- |
30 | 09963-01001 | Tag, Danger, Do Not Operate, Do Not Operate | | 11609- |
31 | 14X-98-35181 | Plate, Reflector, Rear Reflector | | 11609- |
32 | 09802-11000 | Plate, Warning, Before Operating and Traveling | | 11609- |
33 | 6217-71-6510 | Plate, Caution, Specified Fuel Filter Use, Fuel Filter | | 11609- |
34 | 09649-01012 | Plate, Notice, Engine Shutdown | | 11609- |
35 | 09637-70163 | Plate, Service Instruction, Air Cleaner | | 11609- |
36 | 09620-B2070 | Plate, Warning, ROPS | | 11609- |
37 | 09620-C2070 | Plate, Warning, FOPS | | 11609- |
