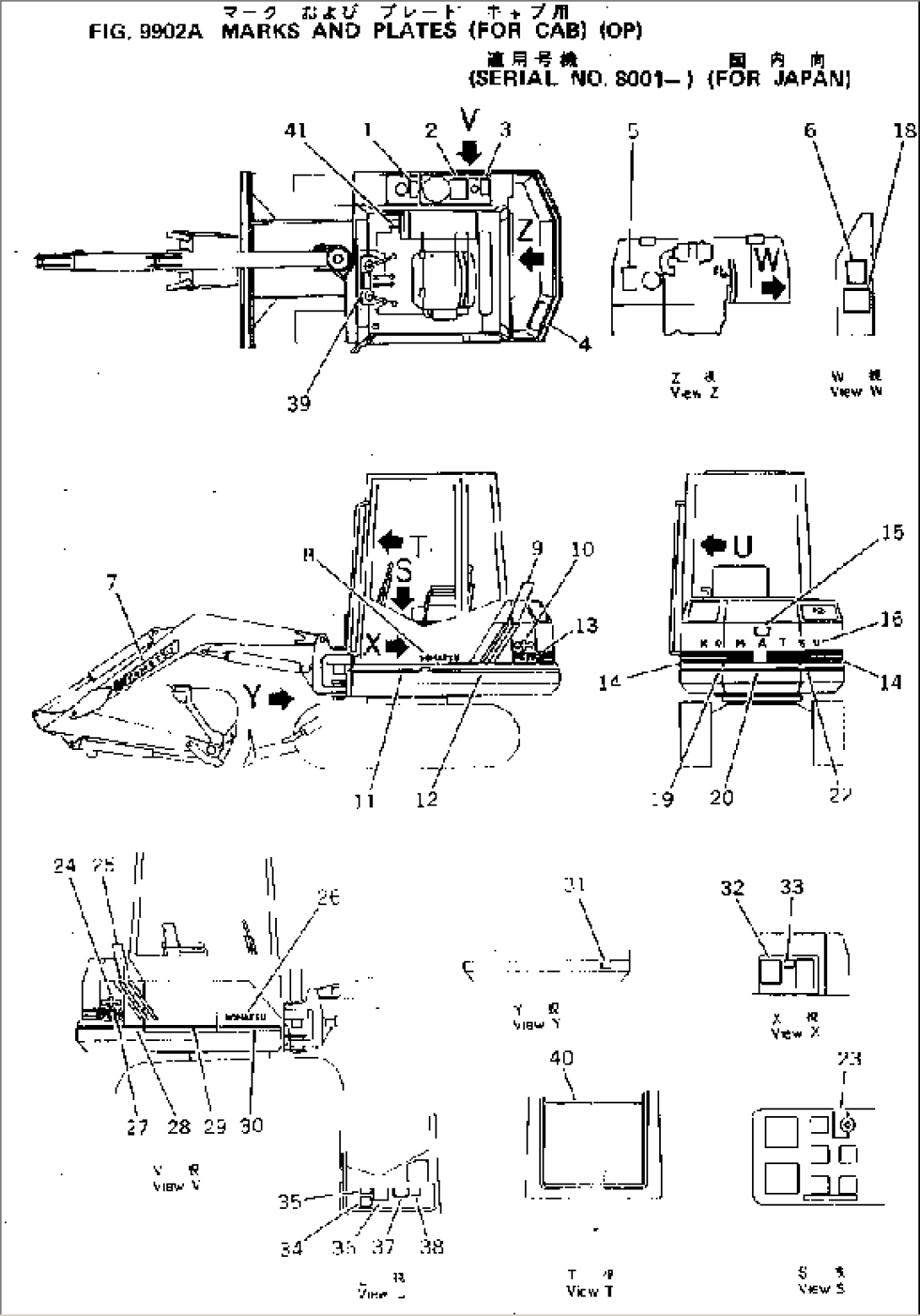

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20N-98-41180 | PLATE¤ INSTRUCTION,FUEL TANK | | 7001- |
| 2 | 20N-98-41190 | PLATE¤ INSTRUCTION,HYDRAULIC OIL | | 7001- |
| 3 | 09653-00100 | PLATE¤ SAFETY,HYDRAULIC TANK CAP | | 7001- |
| 4 | 20R-98-21130 | PLATE¤ SAFETY,KEEP OUT OF TURNING AREA | | 7001- |
| 5 | 20N-98-21290 | PLATE¤ CAUTION,FUEL FILTER | | 7001- |
| 6 | 09650-01103 | PLATE¤ INSTRUCTION,RADIATOR | | 7001- |
| 7 | 20N-98-41240 | PLATE¤ MARK,KOMATSU | | 7001- |
| 8 | 09690-40280 | PLATE¤ MARK,KOMATSU | | 7001- |
| 9 | 20N-98-41250 | PLATE¤ STRIPE | | 7001- |
| 10 | 09694-50160 | PLATE¤ MARK | | 7001- |
| 11 | 20N-98-41315 | PLATE¤ STRIPE | | 8001- |
| 12 | 20N-98-41320 | PLATE¤ STRIPE | | 7001- |
| 13 | 20N-98-41230 | PLATE¤ MARK,PC10 | | 7001- |
| 14 | 20N-98-41275 | PLATE¤ STRIPE | | 8001- |
| 15 | 09667-00100 | PLATE¤ SAFETY,ENGINE COVER | | 7001- |
| 16 | 09690-51120 | PLATE¤ MARK,KOMATSU | | 7001- |
| 18 | 09668-00100 | PLATE¤ SAFETY,RADIATOR CAP | | 7001- |
| 19 | 20N-98-41330 | PLATE¤ STRIPE | | 7001- |
| 20 | 20N-98-41340 | PLATE¤ STRIPE | | 7001- |
| 22 | 20N-98-41330 | PLATE¤ STRIPE | | 7001- |
| 23 | 09683-01060 | PLATE¤ OPERATING,STARTING SWITCH | | 7001- |
| 24 | 09694-50160 | PLATE¤ MARK | | 7001- |
| 25 | 20N-98-41260 | PLATE¤ STRIPE | | 7001- |
| 26 | 09690-40280 | PLATE¤ MARK,KOMATSU | | 7001- |
| 27 | 20N-98-41230 | PLATE¤ MARK,PC10 | | 7001- |
| 28 | 20N-98-41330 | PLATE¤ STRIPE | | 7001- |
| 29 | 20N-98-41350 | PLATE¤ STRIPE | | 7001- |
| 30 | 20N-98-41365 | PLATE¤ STRIPE | | 8001- |
| 31 | 09601-00835 | PLATE¤ NAME,(LIMITED SUPPLY) | | 7001- |
| 04418-13060 | SCREW | | 7001- |
| 32 | 20N-98-41121 | CHART¤ OIL | | 7001- |
| 33 | 20N-98-41131 | PLATE¤ DATA | | 7001- |
| 34 | 09173-00100 | PLATE¤ SAFETY,INSPECTION AND MAINTENANCE | | 7001- |
| 35 | 09651-00100 | PLATE¤ SAFETY,BEFORE OPERATING | | 7001- |
| 36 | 20N-98-41210 | PLATE¤ SAFETY,TRANSPORT | | 7001- |
| 37 | 09132-00100 | PLATE¤ SAFETY,LEAVING SEAT | | 7001- |
| 38 | 20T-98-21210 | PLATE¤ OPERATING,DOOR LOCK | | 7001- |
| 39 | 20N-98-31110 | PLATE¤ OPERATING,WORK EQUIPMENT | | 7001- |
| 40 | 20T-98-21230 | PLATE¤ CAUTION,WINDOW | | 7001- |
| 41 | 20T-98-21130 | PLATE¤ OPERATING,SWING | | 7001- |
