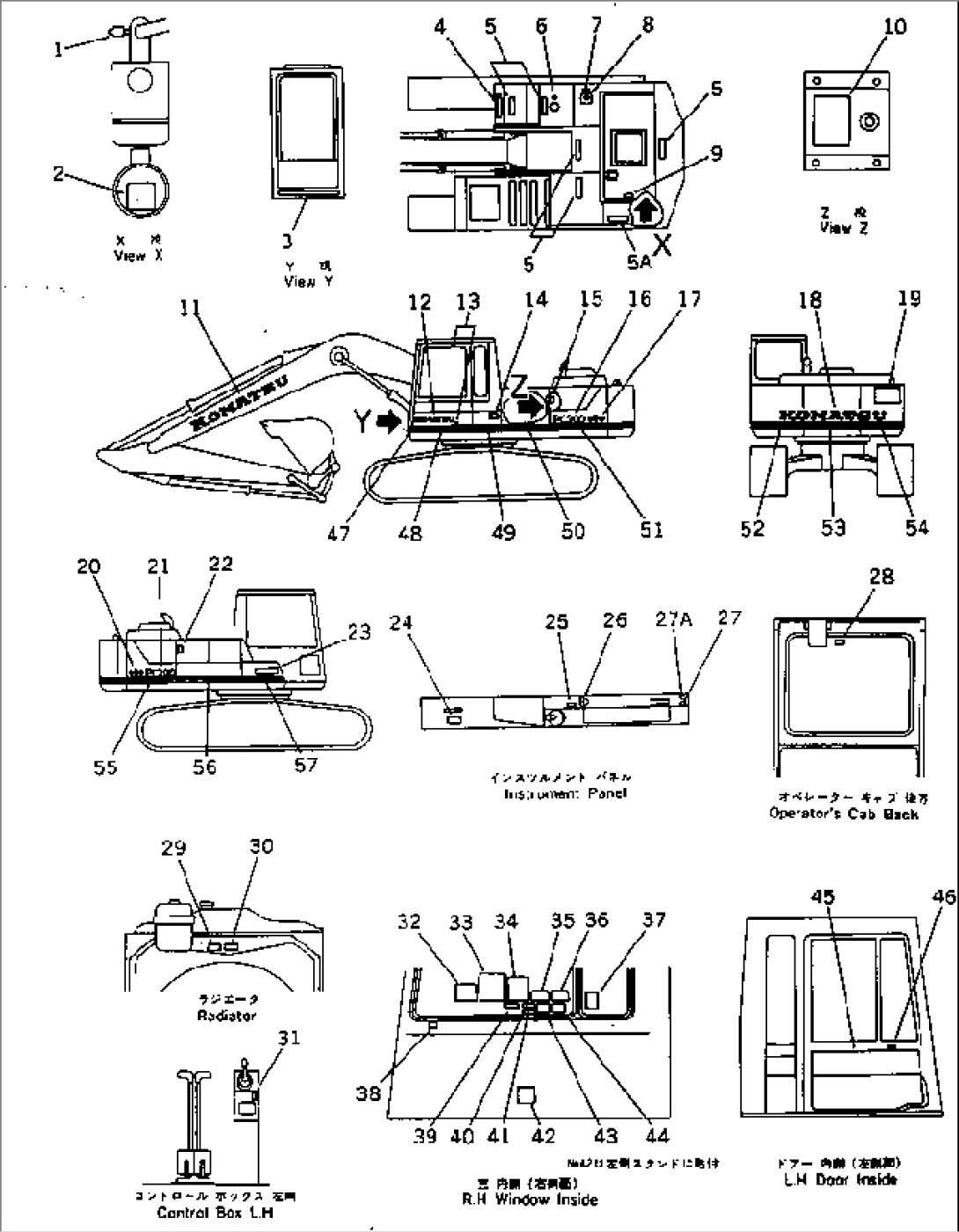

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08670-50635 | INDICATOR,DUST | | 20001- |
| 2 | 09637-00661 | PLATE¤ INSTRUCTION | | 21708- |
| 09637-00161 | PLATE¤ INSTRUCTION | | 20001-21707 |
| 3 | 205-54-76480 | PLATE | | 20001- |
| 4 | 205-54-76511 | SEAT,NONSKID | | 21708- |
| 205-54-76510 | SEAT,NONSKID | | 20001-21707 |
| 5 | 154-54-23260 | SEAT,NONSKID | | 20001- |
| 5A | 205-54-76511 | SEAT,NONSKID | | 21708- |
| 154-54-23260 | SEAT,NONSKID | | 20001-21707 |
| 6 | 09669-00002 | PLATE¤ CAUTION,FUEL | | 20001- |
| 7 | 09653-00100 | PLATE¤ SAFETY,HYDRAULIC TANK CAP | | 20001- |
| 8 | 09669-00003 | PLATE¤ CAUTION,HYDRAULIC OIL TANK | | 20001- |
| 9 | 09667-00100 | PLATE¤ SAFETY | | 20001- |
| 10 | 207-00-31380 | PLATE¤ OPERATING | | 21556- |
| 205-00-71491 | PLATE¤ OPERATING | | 20365-21555 |
| 205-00-71490 | PLATE¤ OPERATING | | 20001-20364 |
| 11 | 205-00-63171 | PLATE¤ MARK,KOMATSU | | 20001- |
| 12 | 09690-50500 | PLATE¤ MARK,KOMATSU | | 20001- |
| 13 | 205-00-63770 | PLATE | | 20001- |
| 14 | 09602-01643 | PLATE¤ NAME | | 20001- |
| 205-00-72430 | RIVET | | 22792- |
| \0\205-00-71540 | SCREW | | 20001-22791 |
| 15 | 205-00-71510 | PLATE¤ OPERATING | | 20001- |
| 16 | 206-00-44110 | PLATE¤ MARK,PC220 | | 20001- |
| 17 | 205-00-71240 | PLATE¤ MARK,SYMBOL | | 20001- |
| 18 | 205-00-71110 | PLATE¤ MARK | | 20001- |
| 19 | 09133-00100 | PLATE¤ SAFETY,KEEP OUT OF TURNING AREA | | 20001- |
| 20 | 205-00-71240 | PLATE¤ MARK,SYMBOL | | 20001- |
| 21 | 206-00-44110 | PLATE¤ MARK,PC220 | | 20001- |
| 22 | 205-00-73360 | PLATE¤ OPERATING | | 21708- |
| \0\203-00-31120 | PLATE¤ INSTRUCTION | | 20001-21707 |
| 23 | 09690-50500 | PLATE¤ MARK,KOMATSU | | 20001- |
| 24 | 09685-00002 | PLATE¤ OPERATING,SWING LOCK LEVER | | 20001- |
| 25 | 09685-00001 | PLATE¤ OPERATING,SAFETY LOCK LEVER | | 20001- |
| 26 | 09683-01060 | PLATE¤ OPERATING,STARTING SWITCH | | 20001- |
| 27 | 205-00-71470 | PLATE¤ OPERATING | | 20001- |
| 27A | 205-00-71480 | PLATE¤ OPERATING | | 21556- |
| 28 | 205-00-63230 | PLATE¤ CAUTION | | 20001- |
| 29 | 205-00-65150 | PLATE¤ CAUTION | | 20001- |
| 30 | 09668-00100 | PLATE¤ SAFETY | | 20001- |
| 31 | 09685-00002 | PLATE¤ OPERATING,SAFETY LOCK LEVER | | 20001-22152 |
| 32 | 205-00-71810 | PLATE | | 20001- |
| 33 | 205-00-71291 | PLATE¤ OPERATING | | 20001- |
| 34 | 205-00-71350 | PLATE¤ OPERATING | | 20001- |
| 35 | 205-00-65120 | PLATE¤ CAUTION | | 20001-22721 |
| 36 | 205-00-65190 | PLATE¤ CAUTION | | 20001-22721 |
| 37 | 205-00-71560 | PLATE¤ CAUTION | | 20001- |
| 38 | 205-00-52192 | PLATE¤ CAUTION | | 20001- |
| 39 | 205-00-71780 | PLATE¤ CAUTION | | 20001-22152 |
| 40 | 09131-00100 | PLATE¤ SAFETY,SWING LOCK LEVER | | 20001- |
| 41 | 205-00-73370 | PLATE¤ CAUTION | | 22722- |
| 09651-00100 | PLATE¤ SAFETY,BEFORE OPERATING | | 20001-22721 |
| 42 | 206-00-44120 | PLATE¤ DATA | | 20001- |
| 43 | 09173-00100 | PLATE¤ SAFETY,INSPECTION AND MAINTENANCE | | 20001-22721 |
| 44 | 205-00-63250 | PLATE¤ CAUTION | | 20001-22721 |
| 45 | 205-54-72262 | COVER | | 20365- |
| 205-54-72261 | COVER | | 20001-20364 |
| 205-54-72350 | CLIP ASS'Y | | 22187- |
| 205-54-72350 | CLIP ASS'Y | | 20001-22186 |
| 46 | 205-00-71340 | PLATE¤ OPERATING | | 20001- |
| 205-00-71530 | LINE¤ STRIPE¤ 50M | | 20001- |
| 47 | 205-00-73270 | LINE¤ STRIPE¤ 46MM,(SERVICE PARTS) | | 20001- |
| 48 | 205-00-71120 | LINE¤ STRIPE¤ 1030MM,(SERVICE PARTS) | | 20001- |
| 49 | 205-00-71130 | LINE¤ STRIPE¤ 476MM,(SERVICE PARTS) | | 20001- |
| 50 | 205-00-71140 | LINE¤ STRIPE¤ 844MM,(SERVICE PARTS) | | 20001- |
| 51 | 205-00-71150 | LINE¤ STRIPE¤ 984MM,(SERVICE PARTS) | | 20001- |
| 52 | 205-00-71160 | LINE¤ STRIPE¤ 1093MM,(SERVICE PARTS) | | 20001- |
| 53 | 205-00-71170 | LINE¤ STRIPE¤ 955MM,(SERVICE PARTS) | | 20001- |
| 54 | 205-00-71160 | LINE¤ STRIPE¤ 1093MM,(SERVICE PARTS) | | 20001- |
| 55 | 205-00-71190 | LINE¤ STRIPE¤ 849MM,(SERVICE PARTS) | | 20001- |
| 56 | 205-00-71210 | LINE¤ STRIPE¤ 1104MM,(SERVICE PARTS) | | 20001- |
| 57 | 205-00-71230 | LINE¤ STRIPE¤ 757MM,(SERVICE PARTS) | | 20001- |
