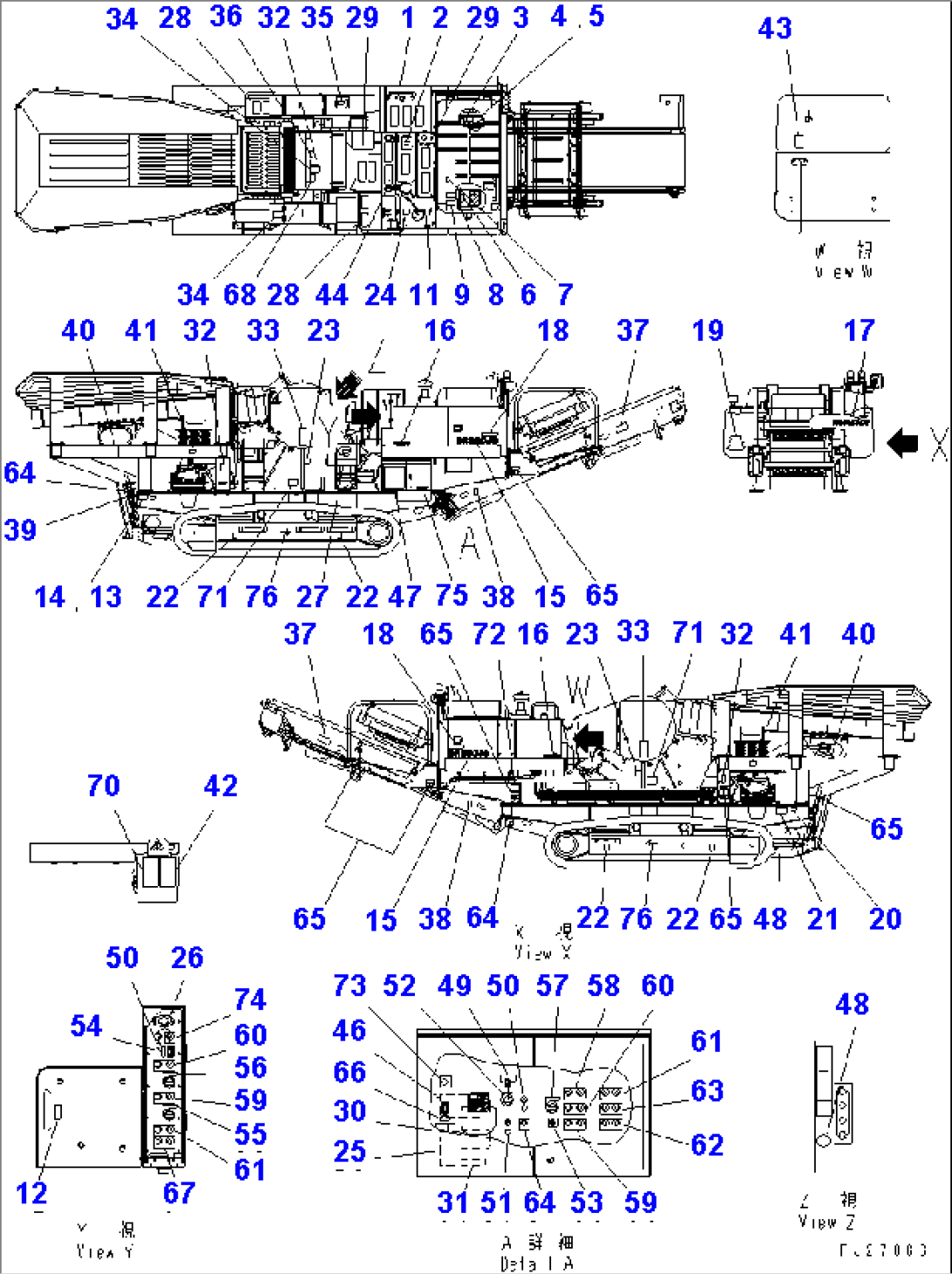

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09669-0000B | PLATE, CAUTION,FUEL INLET | | 1001-@ |
| 2 | 09650-52104 | PLATE, INSTRUCTION,RADIATOR SUB TANK CAUTION | | 1001-@ |
| 3 | 09653-A0481 | PLATE, SAFETY,RADIATOR CAP WARNING | | 1001-@ |
| 4 | 8242-93-3160 | PLATE,RADIATOR COOLANT DENSITY | | 1001-@ |
| 5 | 561-93-41160 | PLATE,RADIATOR COOLANT DENSITY,ARROW | | 1001-@ |
| 6 | 09637-30263 | PLATE, INSTRUCTION,AIR CLEANER ELEMENT MAINTE. | | 1001-@ |
| 7 | 09667-A0481 | PLATE, SAFETY,CAUTION BEFORE OPENING HOOD | | 1001-@ |
| 8 | 09805-C0881 | PLATE, SAFETY,HOOD CAUTION(NEVER BE ON HOOD) | | 1001-@ |
| 9 | 09805-A0881 | PLATE, SAFETY,HOOD CAUTION(KEEP AWAY FROM E) | | 1001-@ |
| 11 | 09653-A0641 | PLATE, SAFETY,HYDRAULIC OIL INLET | | 1001-@ |
| 12 | 8242-93-3340 | PLATE, OPERATING,HYDRAULIC OIL LEVEL GAUGE | | 1001-1054 |
| 13 | (\7\09602-10000) | PLATE, NAME,(LIMITED SUPPLY) | | 1001-@ |
| 14 | 04418-13060 | SCREW | | 1001-@ |
| 15 | 8295-93-1260 | PLATE,MACHINE MODEL MARK | | 1001-@ |
| 16 | 09690-P0800 | PLATE, MARK,KOMATSU | | 1001-@ |
| 17 | 09690-P1120 | PLATE, MARK,KOMATSU | | 1001-@ |
| 18 | 8295-93-1270 | PLATE,GARA-PAGOS MARK | | 1001-@ |
| 19 | 8206-93-3250 | MARK,CHARACTER MARK | | 1001-@ |
| 20 | 09657-A0881 | PLATE, SAFETY,TRACK ADJUSTMENT WARNING | | 1001-@ |
| 21 | 8295-93-1740 | PLATE,FIXING AND SLING POSITION | | 1001-@ |
| 22 | 09960-01001 | PLATE, MARK,SLING POSITION | | 1001-@ |
| 23 | 09960-01012 | PLATE, MARK,GRAVITY POSITION | | 1001-@ |
| 24 | 8242-93-3170 | PLATE,WARNING BEFORE OPERATION | | 1001-@ |
| 25 | 09651-A0641 | PLATE, SAFETY,WARNING BEFORE OPE.AND MAINTE. | | 1001-@ |
| 26 | 09651-A0481 | PLATE, SAFETY,WARNING BEFORE OPE.AND MAINTE. | | 1001-@ |
| 27 | 09963-05001 | TAG | | 1001-@ |
| 28 | 203-00-51170 | SEAT,NON SLIP (SMALL) | | 1001-@ |
| 29 | 154-54-23260 | SEAT,NON SLIP (LARGE) | | 1001-@ |
| 30 | 8242-93-3290 | PLATE,ENGINE START | | 1001-@ |
| 31 | 09649-05012 | PLATE, INSTRUCTION,ENGINE SHUTDOWN | | 1001-@ |
| 32 | 09826-A0881 | PLATE,FLYING OBJECT WARNING | | 1001-@ |
| 33 | 09829-H1681 | PLATE,KEEP OFF AROUND HOPPER | | 1001-@ |
| 34 | 09838-H1201 | PLATE,CRUSHER WARNING | | 1001-@ |
| 35 | 09667-A0641 | PLATE, SAFETY,CRUSHER V-BELTS INSPECTION WAR | | 1001-@ |
| 36 | 8295-93-1750 | PLATE,CRUSHER TENSION SPRING SET.LE. | | 1001-1054 |
| 37 | 09828-H2321 | PLATE,KEEP OFF AROUND CONVEYOR | | 1001-@ |
| 38 | 09667-A0641 | PLATE, SAFETY,CONVEYOR INSPECTION WARNING | | 1001-@ |
| 39 | 8295-93-1760 | PLATE,CONVEYOR UP/DOWN | | 1001-@ |
| 40 | 09834-H1201 | PLATE,CAUT.OF APPROACH DURING FEED. | | 1001-@ |
| 41 | 8242-93-3180 | PLATE,FEEDER PIN DURING TRANSPORTA. | | 1001-1054 |
| 42 | 8295-93-1371 | PLATE,TRAVEL LOCK LEVER WARNING | | 1001-@ |
| 43 | 8295-93-1770 | PLATE,ASCENT AND DESCENT WARNING | | 1001-@ |
| 44 | 09808-A0881 | PLATE, SAFETY,HAZARDOUS VOLTAGE WARNING | | 1001-@ |
| 46 | 8295-93-1780 | PLATE,FUSE | | 1001-@ |
| 47 | 8295-93-1790 | PLATE,LUBRICATION STANDARD CHART | | 1001-@ |
| 48 | 8295-93-1810 | PLATE,GREASING POINT | | 1001-@ |
| 49 | 09683-0000A | PLATE, OPERATING,STARTER SWITCH | | 1001-@ |
| 50 | 09679-0200B | PLATE, OPERATING,HORN SWITCH | | 1001-@ |
| 51 | 09679-0200A | PLATE, OPERATING,HEAD LAMP SWITCH | | 1001-@ |
| 52 | 8233-93-3242 | PLATE,FUEL CONTROL | | 1008-@ |
| 52 | \0\8233-93-3241 | PLATE,FUEL CONTROL | | 1001-1007 |
| 53 | 8295-93-1850 | PLATE,MODE SELECT SWITCH | | 1001-@ |
| 54 | 8295-93-1160 | PLATE,TRAVEL SPEED SELECTION SWITCH | | 1001-@ |
| 55 | 8206-93-3182 | PLATE,FEEDER DRIVE SPEED ADJ. DIAL | | 1007-@ |
| 55 | 8206-93-3181 | PLATE,FEEDER DRIVE SPEED ADJ. DIAL | | 1001-1006 |
| 56 | 8242-93-2142 | PLATE,CRUSHER DRIVE SPEED ADJ. DIAL | | 1007-@ |
| 56 | 8242-93-2141 | PLATE,CRUSHER DRIVE SPEED ADJ. DIAL | | 1001-1006 |
| 57 | 8295-93-1860 | PLATE,CRUSHING LOAD SELECTION DIAL | | 1001-@ |
| 58 | 8242-93-1990 | PLATE,CONVEYOR SWITCH | | 1001-@ |
| 59 | 8295-93-2110 | PLATE, MARK,FEEDER SWITCH | | 1001-@ |
| 60 | 8242-93-1980 | PLATE,CRUSHER SWITCH | | 1001-@ |
| 61 | 8242-93-3350 | PLATE,CRUSHER MANUAL OPERATION SWIT. | | 1001-@ |
| 62 | 8295-93-1870 | PLATE,MAGNETIC SEPARATOR SWITCH | | 1001-@ |
| 63 | 8295-93-1880 | PLATE,MUCK CONVEYOR SWITCH | | 1001-@ |
| 64 | 8242-93-3330 | PLATE,EMERGENCY STOP SWITCH | | 1001-@ |
| 65 | 8295-93-1960 | PLATE,EMERGENCY STOP MARK | | 1001-@ |
| 66 | 8295-93-1890 | PLATE,BUZZER STOP | | 1001-@ |
| 67 | 8295-93-1920 | PLATE,CRUSHER OUTLET CLEAR. ADJ. SW. | | 1001-1054 |
| 68 | 8295-93-1820 | PLATE | | 1018-1054 |
| 70 | 8295-93-1580 | PLATE | | 1018-@ |
| 71 | 8295-93-1830 | PLATE | | 1018-@ |
| 72 | 8295-93-1840 | PLATE | | 1018-@ |
| 73 | 8295-93-1950 | PLATE | | 1018-@ |
| 74 | 8295-93-1910 | PLATE | | 1018-@ |
| 75 | 09970-00230 | PLATE | | 1018-@ |
| 76 | 8244-98-1240 | PLATE | | 1018-@ |
