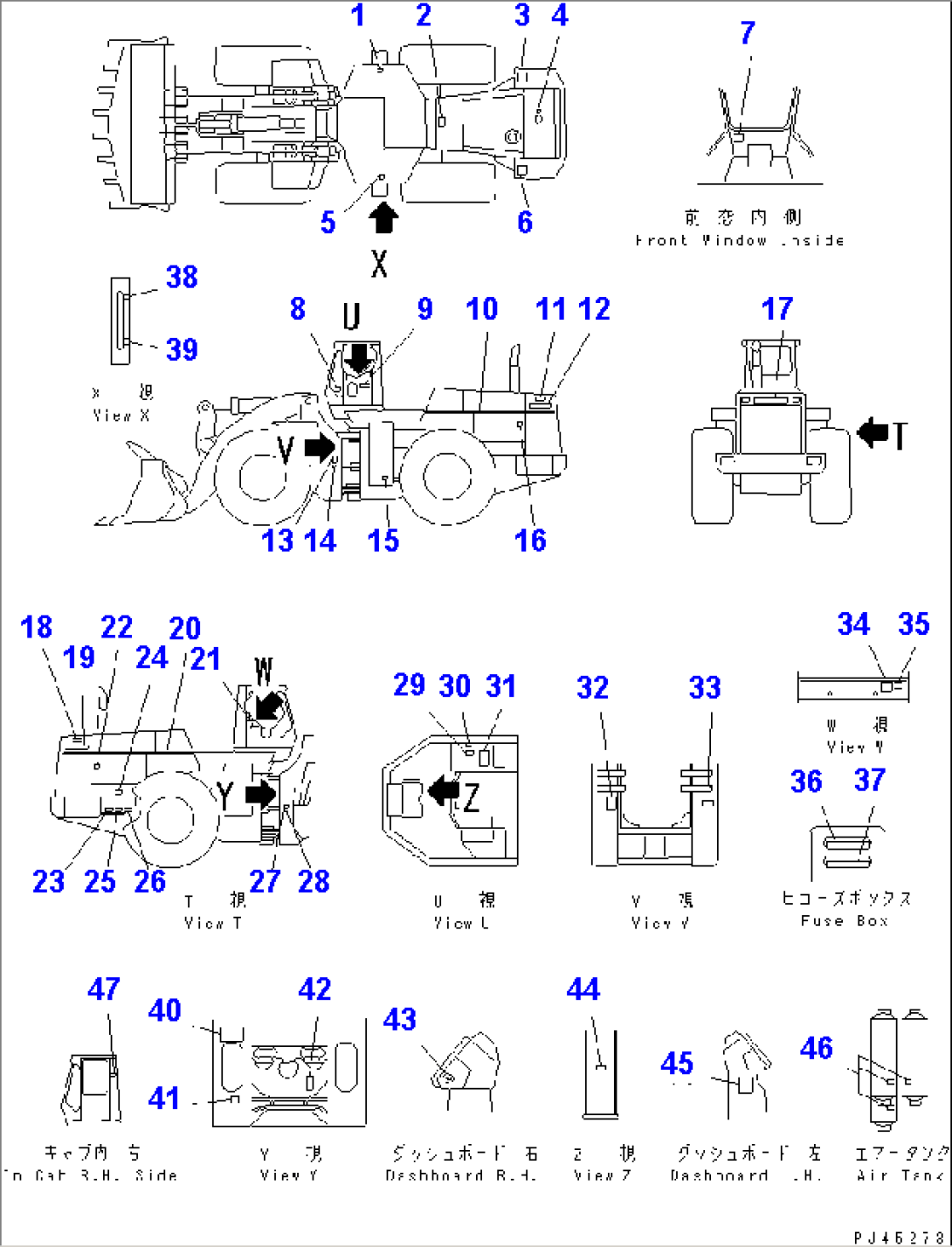

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09653-00100 | PLATE¤ SAFETY,HYDRAULIC TANK | | 10001-@ |
| 2 | 427-93-11380 | PLATE¤ INSTRUCTION,AIR CLEANER | | 10001-@ |
| 3 | 428-93-11210 | PLATE¤ CAUTION,BATTERY | | 10001-@ |
| 4 | 09668-00100 | PLATE¤ SAFETY,RADIATOR CAP | | 10001-@ |
| 5 | 424-93-11280 | PLATE¤ CAUTION,BRAKE OIL | | 10001-@ |
| 6 | 428-93-11210 | PLATE¤ CAUTION,BATTERY | | 10001-@ |
| 7 | 419-93-11890 | PLATE¤ CAUTION,TRANSMISSION OIL TEMPERATURE | | 10001-@ |
| 8 | 426-93-11170 | PLATE¤ OPERATING,MONITOR PANEL | | 10001-@ |
| 9 | 417-93-11280 | PLATE¤ NAME,AVANCE | | 10001-10091 |
| 10 | 427-93-11250 | PLATE,STRIPE | | 10001-@ |
| 11 | 426-93-11130 | PLATE¤ MARK,SYMBOL | | 10001-10091 |
| 12 | 428-93-11140 | PLATE¤ MARK,WA700 | | 10001-10091 |
| 13 | 423-93-11240 | PLATE¤ CAUTION | | 10001-@ |
| 14 | 426-93-11320 | PLATE¤ CAUTION,INSTALL THE BUCKET | | 10001-@ |
| 15 | 09152-00100 | PLATE¤ SAFETY,AIR TANK¤ DRAIN | | 10001-@ |
| 16 | 362-54-17180 | PLATE¤ CAUTION,FAN | | 10001-@ |
| 17 | 09690-50710 | PLATE¤ MARK,KOMATSU | | 10001-10091 |
| 18 | 426-93-11130 | PLATE¤ MARK,SYMBOL | | 10001-10091 |
| 19 | 428-93-11140 | PLATE¤ MARK,WA700 | | 10001-10091 |
| 20 | 427-93-11250 | PLATE,STRIPE | | 10001-@ |
| 21 | 417-93-11280 | PLATE¤ NAME,AVANCE | | 10001-10091 |
| 22 | 362-54-17180 | PLATE¤ CAUTION,FAN | | 10001-@ |
| 23 | 428-93-11370 | PLATE,FUEL CUT | | 10001-@ |
| 24 | 09101-00100 | PLATE¤ INSTRUCTION,FUEL | | 10001-@ |
| 25 | 421-93-11810 | PLATE¤ INSTRUCTION,RADIATOR WATER DRAIN | | 10001-@ |
| 26 | 421-93-11350 | PLATE¤ INSTRUCTION,ENGINE OIL DRAIN | | 10001-@ |
| 27 | 423-93-11240 | PLATE¤ CAUTION,KEEP OUT | | 10001-@ |
| 28 | 09601-00835 | PLATE¤ NAME,(LIMITED SUPPLY) | | 10001-@ |
| 04418-13060 | SCREW | | 10001-@ |
| 29 | 09685-00003 | PLATE¤ OPERATING,LEVER LOCK | | 10001-@ |
| 30 | 421-93-11132 | PLATE¤ OPERATING,BUCKET CONTROL LEVER | | 10001-@ |
| 31 | 421-93-12230 | PLATE¤ OPERATING,RELAY | | 10001-@ |
| 32 | 427-93-11181 | PLATE¤ OPERATING,REMOTE GREASE¤ REAR | | 10001-@ |
| 33 | 362-54-17230 | PLATE¤ CAUTION,HOSE CHANGE | | 10001-@ |
| 34 | 421-93-11181 | PLATE¤ SAFETY,STARTING AND AFTER OPERATING | | 10001-@ |
| 35 | 424-93-11320 | PLATE¤ CAUTION,INSPECTION | | 10001-@ |
| 36 | 428-93-11161 | PLATE¤ OPERATING,BREAKER | | 10001-@ |
| 37 | 428-93-11170 | PLATE¤ OPERATING,BREAKER | | 10001-@ |
| 38 | 427-93-11410 | PLATE¤ CAUTION,TRANSMISSION OIL LEVEL | | 10001-@ |
| 39 | 427-93-11391 | PLATE¤ CAUTION,TRANSMISSION OIL LEVEL | | 10001-@ |
| 40 | 428-93-11112 | CHART¤ OIL | | 10001-@ |
| 41 | 362-54-17160 | PLATE¤ CAUTION,FRAME LOCK | | 10001-@ |
| 42 | 427-93-11171 | PLATE¤ OPERATING,REMOTE GREASE¤ FRONT | | 10001-@ |
| 43 | 09683-30070 | PLATE¤ OPERATING,STARTING SWITCH | | 10001-@ |
| 44 | 427-93-11220 | PLATE¤ OPERATING,WORK LAMP RELAY | | 10001-@ |
| 45 | 428-93-11240 | PLATE¤ DATA | | 10001-@ |
| 46 | 424-93-11120 | PLATE¤ CAUTION,AIR TANK¤ PRESSURE | | 10001-@ |
| 47 | 428-S33-2541 | PLATE¤ CAUTION,(WITH JOY STICK STEERING) | | 10001-10091 |
