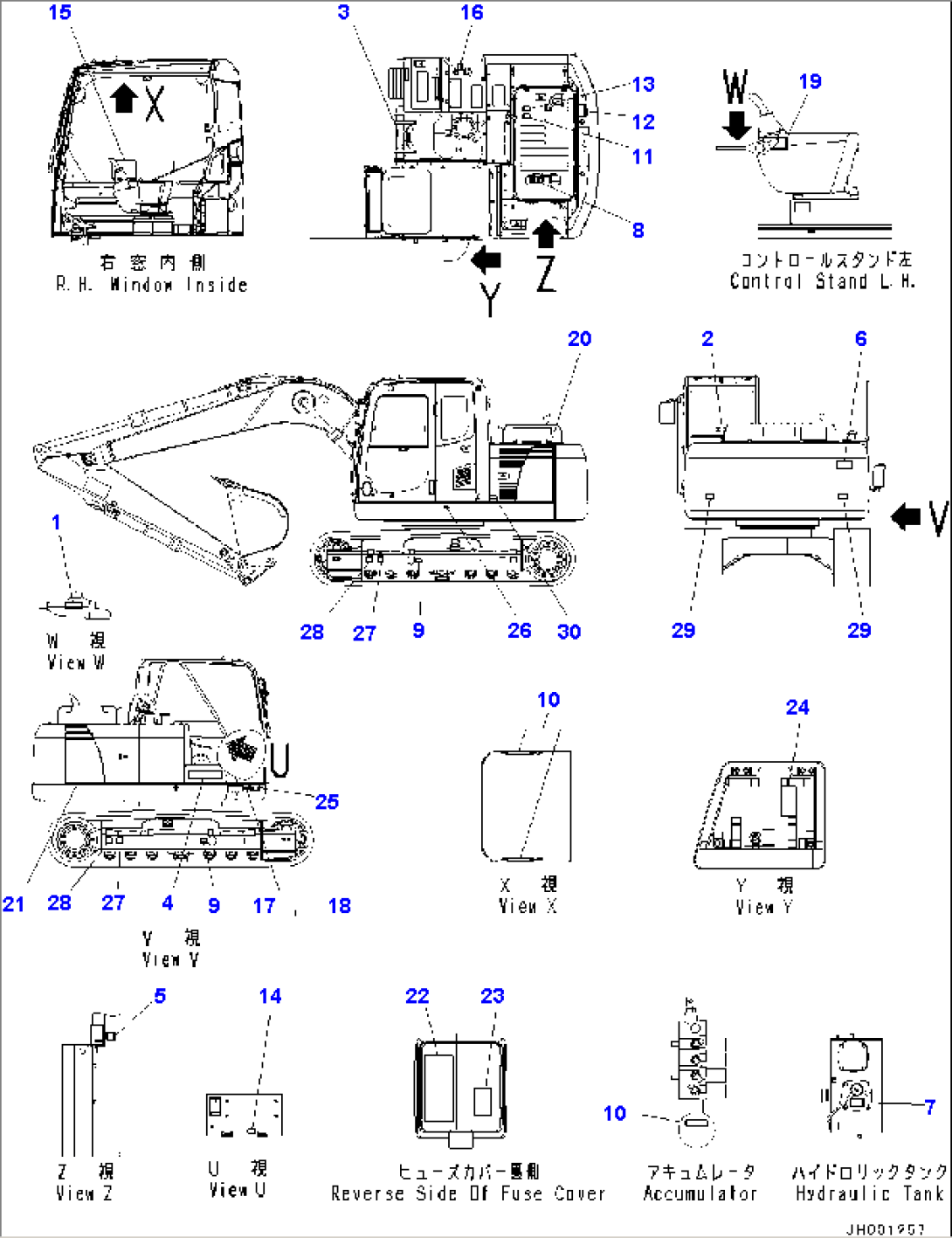

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09685-00002 | Plate, Operating | | C30001- |
| 2 | 09844-00050 | Plate | | C30001- |
| 3 | 09690-M0063 | Plate, Mark | | C30001- |
| 4 | 09690-P0450 | Decal, Komatsu Logo | | C30001- |
| 5 | 09842-A0481 | Plate, Caution | | C30001- |
| 6 | 09133-23000 | Plate | | C30001- |
| 7 | 09653-03001 | Plate | | C30001- |
| 8 | 09668-03001 | Plate | | C30001- |
| 9 | 09657-03003 | Plate | | C30001- |
| 10 | 09659-53000 | Plate | | C30001- |
| 11 | 09667-03001 | Plate | | C30001- |
| 12 | 09805-23000 | Plate | | C30001- |
| 13 | 09805-13000 | Plate | | C30001- |
| 14 | 09808-03000 | Plate | | C30001- |
| 15 | 22U-00-21290 | Plate, Caution | | C30001- |
| 16 | 09669-0000E | Plate, Caution | | C30001- |
| 17 | 09601-120E1 | Plate, Name (Limited Supply) | | C30001- |
| 18 | 04418-13060 | Screw | | C30001- |
| 19 | 09963-03001 | Tag | | C30001- |
| 20 | 203-00-11160 | Plate, Machine Model Mark | | C30001- |
| 21 | 203-00-11170 | Plate, Machine Model Mark | | C30001- |
| 22 | 203-00-11290 | Plate, Fuse | | C30001- |
| 23 | 20Y-00-31330 | Plate | | C30001- |
| 24 | 208-00-71260 | Plate | | C30001- |
| 25 | 20Y-00-31840 | Plate, Warning, Lifting Operation | | C30001- |
| 26 | 21U-98-31160 | Decal, Balancing Position Mark | | C30001- |
| 27 | 09960-00801 | Mark | | C30001- |
| 28 | 09960-00802 | Mark | | C30001- |
| 29 | 14X-98-35181 | Plate | | C30001- |
| 30 | 11Y-98-31130 | Plate, Symbol, Ecot3 | | C30001- |
