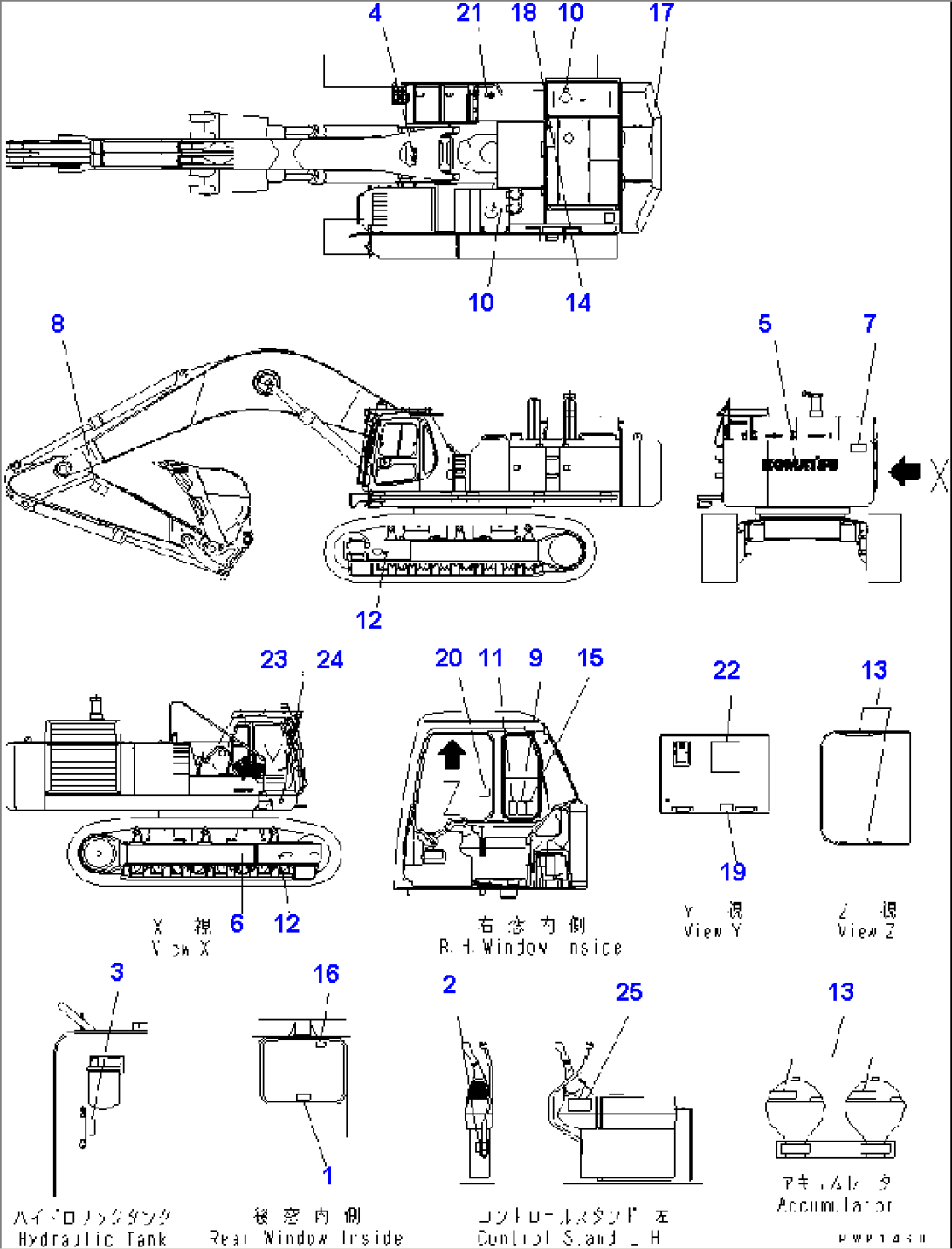

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-00-22880 | DECAL | K32001- | |
| 2 | 09685-00001 | PLATEä OPERATING | K30088- | |
| 3 | 205-00-73360 | PLATEä OPERATING | K30088- | |
| 4 | 09690-M0063 | PLATEä MARK | K32001- | |
| 5 | 09690-B1600 | PLATEä MARK | K32001- | |
| 6 | 09690-B0400 | PLATEä MARK | K30088- | |
| 7 | 20E-00-K1150 | PLATEä CAUTION | K32001- | |
| 8 | 09134-A1681 | PLATEä CAUTION | K32001- | |
| 9 | 20E-00-K1120 | PLATEä INSTRUCTION | K30088- | |
| 10 | 20E-00-K1190 | PLATEä CAUTION | K30088- | |
| 11 | 20E-00-K1230 | PLATEä CAUTION | K32001- | |
| 12 | 09657-A0881 | PLATEä SAFETY | K32001- | |
| 13 | 09659-A057B | PLATEä SAFETY | K32001- | |
| 14 | 09667-A0481 | PLATEä SAFETY | K32001- | |
| 15 | 20E-00-K1130 | PLATEä CAUTION | K30088- | |
| 16 | 09803-A0481 | PLATEä SAFETY | K32001- | |
| 17 | 09805-A0881 | PLATEä SAFETY | K32001- | |
| 18 | 20E-00-K1110 | PLATEä CAUTION | K30088- | |
| 19 | 09808-A0881 | PLATEä SAFETY | K32001- | |
| 20 | 09839-03000 | PLATEä SAFETY | K32001- | |
| 21 | 21M-00-15421 | PLATE | K32001- | |
| 22 | 209-00-77220 | PLATE | K32001- | |
| 23 | (\7\205-00-K1290) | PLATEä NAME | K30088- | |
| 24 | 04418-13060 | SCREW | K32001- | |
| 25 | 20E-00-K1340 | PLATEä CAUTION | K30088- |
