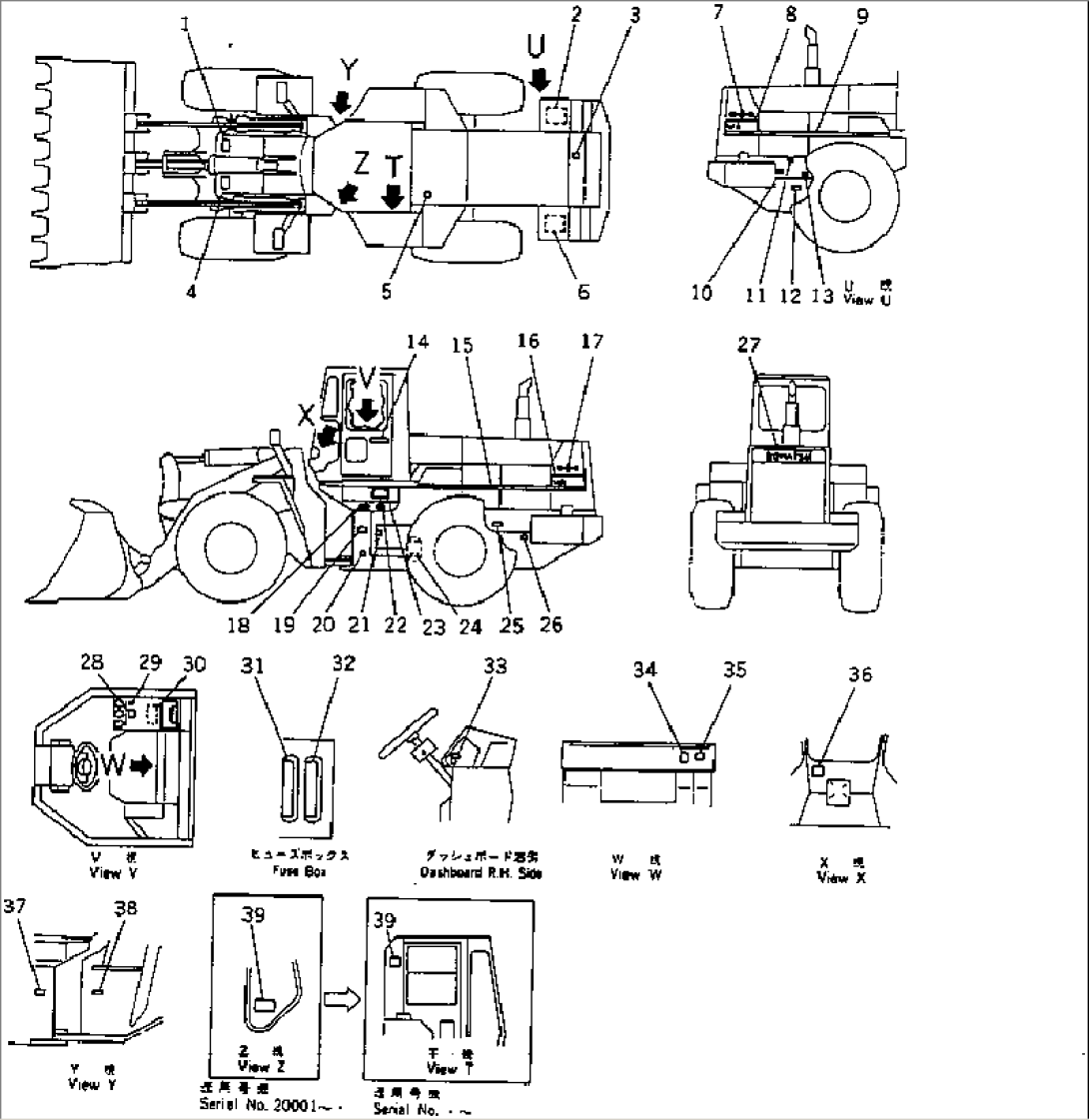

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-V00-1250 | PLATE, OPERATING,LIFTING EYE | | 20001- |
| 2 | 421-V00-1121 | PLATE, CAUTION,BATTERY | | 20001- |
| 3 | 09668-01000 | PLATE, SAFETY,RADIATOR CAP | | 20001- |
| 4 | 419-V00-1250 | PLATE, OPERATING,LIFTING EYE | | 20001- |
| 5 | 09653-01000 | PLATE, SAFETY,HYDRAULIC TANK | | 20001- |
| 6 | 421-V00-1121 | PLATE, CAUTION,BATTERY | | 20001- |
| 7 | 09694-50280 | PLATE, MARK,SYMBOL | | 20001- |
| 8 | 424-93-11810 | PLATE, MARK,WA420 | | 20001- |
| 9 | 423-93-11142 | PLATE, STRIPE | | 20001- |
| 10 | 09101-01000 | PLATE, CAUTION,FUEL | | 20001- |
| 11 | 419-V00-1140 | PLATE, CAUTION,FAN | | 20001- |
| 12 | 421-V00-1180 | PLATE, CAUTION,ENGINE OIL DRAIN | | 20001- |
| 13 | 419-V00-1250 | PLATE, OPERATING,LIFTING EYE | | 20001- |
| 14 | 09690-50280 | PLATE, MARK,KOMATSU | | 20001- |
| 15 | 423-93-11142 | PLATE, STRIPE | | 20001- |
| 16 | 424-93-11810 | PLATE, MARK,WA420 | | 20001- |
| 17 | 09694-50280 | PLATE, MARK,SYMBOL | | 20001- |
| 18 | 09152-01000 | PLATE, SAFETY,AIR TANK, DRAIN | | 20001- |
| 19 | 419-V00-1230 | PLATE, CAUTION,KEEP OUT | | 20001- |
| 20 | 419-V00-1130 | PLATE, CAUTION,FRAME LOCK | | 20001- |
| 21 | 421-V00-1310 | PLATE, CAUTION,TRANSMISSION OIL LEVEL | | 20001- |
| 22 | 09152-01000 | PLATE, SAFETY,AIR TANK, DRAIN | | 20001- |
| 23 | 424-V00-1151 | CHART, OIL | | 20001- |
| 24 | 09152-01000 | PLATE, SAFETY,AIR TANK, DRAIN | | 20001- |
| 25 | 419-V00-1250 | PLATE, OPERATING,LIFTING EYE | | 20001- |
| 26 | 423-V00-1320 | PLATE, OPERATING,GREASE AXLE TRUNNION | | 20001- |
| 27 | 09690-50400 | PLATE, MARK,KOMATSU | | 20001- |
| 28 | 421-93-11132 | PLATE, OPERATING,BUCKET CONTROL LEVER | | 20001- |
| 29 | 09685-00003 | PLATE, OPERATING,LEVER LOCK | | 20001- |
| 30 | 421-V00-1220 | PLATE, OPERATING,RELAY | | 20001- |
| 31 | 421-V00-1230 | PLATE, OPERATING,FUSE | | 20001- |
| 32 | 421-V00-1240 | PLATE, OPERATING,FUSE | | 20001- |
| 33 | 09683-11070 | PLATE, OPERATING,STARTING SWITCH | | 20001- |
| 34 | 419-V00-1150 | PLATE, SAFETY,STARTING AND AFTER OPERATING | | 20001- |
| 35 | 419-V00-1120 | PLATE, CAUTION,STARTING AND INSPECTION | | 20001- |
| 36 | 419-V00-1260 | PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE | | 10001- |
| 37 | 419-V00-1230 | PLATE, CAUTION,KEEP OUT | | 10001- |
| 38 | 09602-11635 | PLATE, NAME,(LIMITED SUPPLY) | | 10001- |
| 38 | 04418-13060 | SCREW | | 10001- |
| 39 | 423-V00-1131 | PLATE, OPERATING,MONITOR PANEL | | 20001- |
