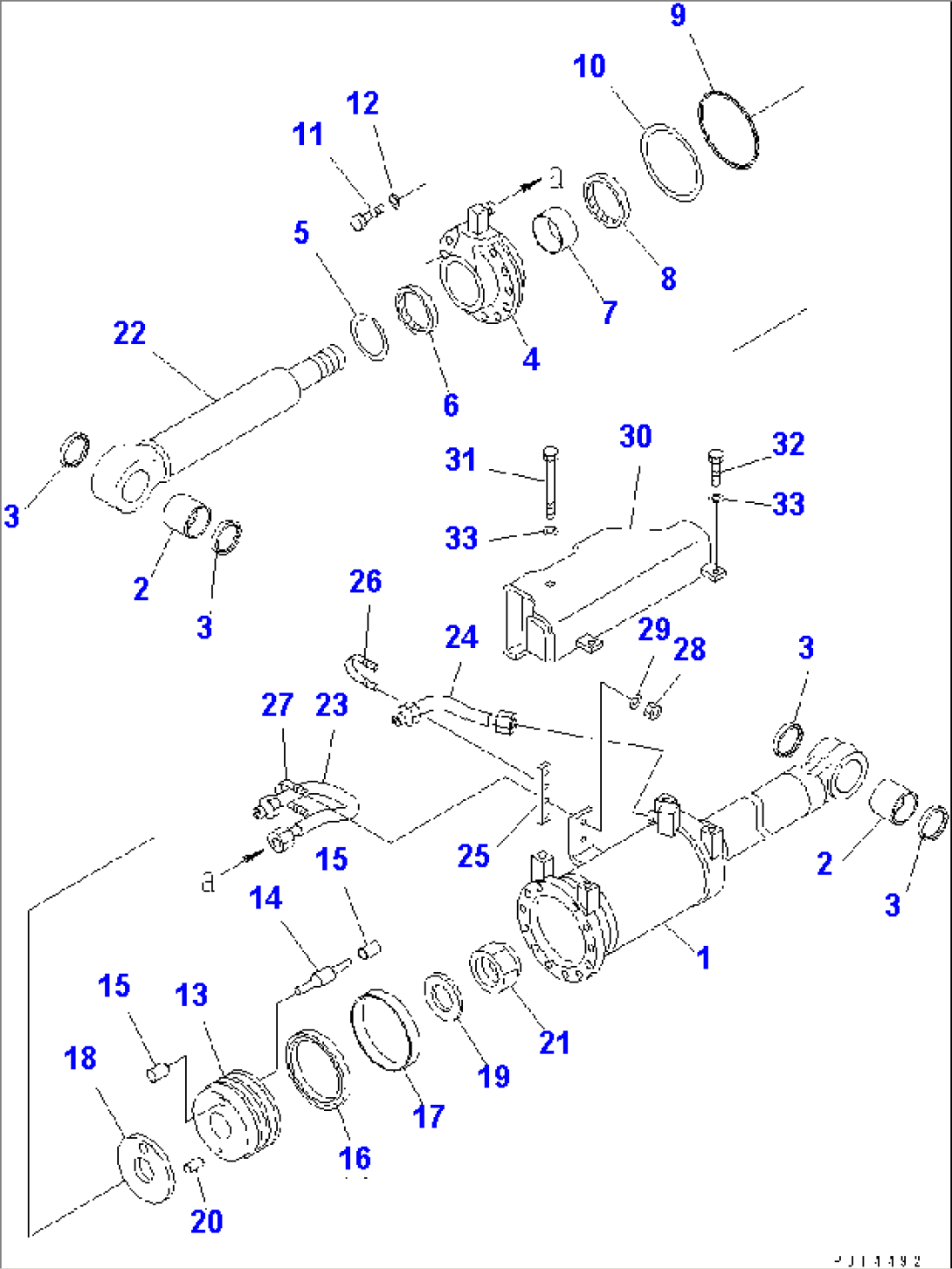

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\707-01-XZ030) | CYLINDER GROUP,L.H. (FINAL COATING) | 37518- | |
| G-1 | (\8\154-63-X2120) | CYLINDER GROUP,L.H. | 36534-37517 | |
| G-2 | (\8\707-01-XZ040) | CYLINDER GROUP,R.H. (FINAL COATING) | 37518- | |
| G-2 | (\8\154-63-X2130) | CYLINDER GROUP,R.H. | 36534-37517 | |
| ==================== | ||||
| 154-63-02120 | CYLINDER ASS'Y,L.H. | 36534- | ||
| 154-63-02130 | CYLINDER ASS'Y,R.H. | 36534- | ||
| 1 | 154-63-53440 | CYLINDER,L.H. | 36534- | |
| 1 | 154-63-53540 | CYLINDER,R.H. | 36534- | |
| 2 | 07143-10505 | BUSHING | 36534- | |
| 3 | 07145-00050 | SEAL | 36534- | |
| 4 | 707-27-14210 | HEAD,CYLINDER | 36534- | |
| 5 | 07179-12084 | RING,SNAP | 36534- | |
| 6 | 144-63-95170 | SEAL,DUST | 36534- | |
| 7 | 707-52-10700 | BUSHING | 36534- | |
| 8 | 707-51-70211 | PACKING,ROD | 36534- | |
| 9 | 07000-12135 | O-RING | 36534- | |
| 10 | 07146-02136 | RING,BACK-UP | 36534- | |
| 11 | 01010-81455 | BOLT | 36534- | |
| 12 | 01643-31445 | WASHER | 36534- | |
| 154-63-53230 | PISTON SUB ASS'Y | 36534- | ||
| 13 | \6\ | PISTON | 36534- | |
| 14 | \6\ | VALVE,PISTON | 36534- | |
| 15 | \6\ | SEAT,VALVE | 36534- | |
| 16 | 707-44-14180 | RING,PISTON | 36534- | |
| 17 | 07156-01417 | RING,WEAR | 36534- | |
| 18 | 707-40-14040 | RETAINER | 36534- | |
| 19 | 707-40-14050 | RETAINER | 36534- | |
| 20 | 04020-00616 | PIN | 36534- | |
| 21 | 07165-14547 | NUT | 36534- | |
| 22 | 154-63-53220 | ROD,PISTON | 36534- | |
| 23 | 154-63-53270 | TUBE,L.H. | 36534- | |
| 23 | 154-63-53370 | TUBE,R.H. | 36534- | |
| 24 | 154-63-53280 | TUBE,L.H. | 36534- | |
| 24 | 154-63-53380 | TUBE,R.H. | 36534- | |
| 25 | 154-63-52660 | PLATE | 36534- | |
| 26 | 07283-22236 | CLIP | 36534- | |
| 27 | 07283-22244 | CLIP | 36534- | |
| 28 | 01599-01011 | NUT | 36534- | |
| 29 | 01643-31032 | WASHER | 36534- | |
| 30 | 154-63-53250 | COVER,L.H. | 36534- | |
| 30 | 154-63-53350 | COVER,R.H. | 36534- | |
| 31 | 01010-51495 | BOLT | 36534- | |
| 32 | 01010-51440 | BOLT | 36534- | |
| 33 | 01643-31445 | WASHER | 36534- | |
| ==================== |
