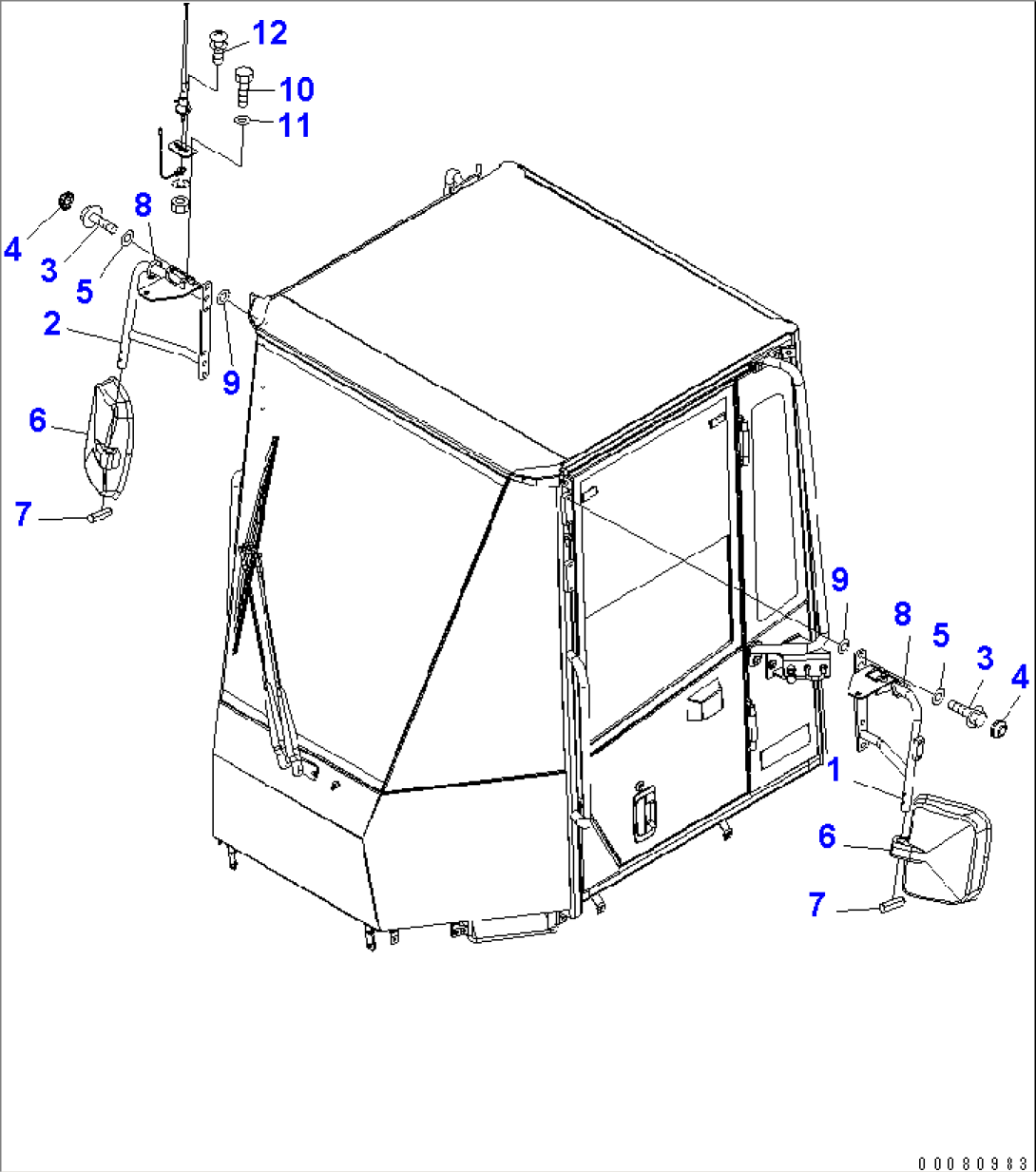

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-54-34851 | STAY | A89001- | |
| 2 | 418-54-34862 | STAY | A89001- | |
| 3 | 01435-01025 | BOLT | A89001- | |
| 4 | 363-54-31450 | CAP | A89001- | |
| 5 | 01643-31032 | WASHER | A89001- | |
| 6 | 421-54-25610 | MIRROR | A89001- | |
| 421-54-25620 | BUSHING | A89001- | ||
| 421-54-25630 | HOLDER | A89001- | ||
| 421-54-25640 | LENS | A89001- | ||
| 421-54-25650 | FRAME | A89001- | ||
| 421-54-25660 | SCREW | A89001- | ||
| 7 | 04025-00632 | PIN | A89001- | |
| 8 | 08034-40521 | BAND | A89001- | |
| 9 | 01640-21016 | WASHER | A89001- | |
| 10 | 01010-80616 | BOLT | A89001- | |
| 11 | 01643-30623 | WASHER | A89001- | |
| 12 | 01023-20416 | SCREW | A89001- |
