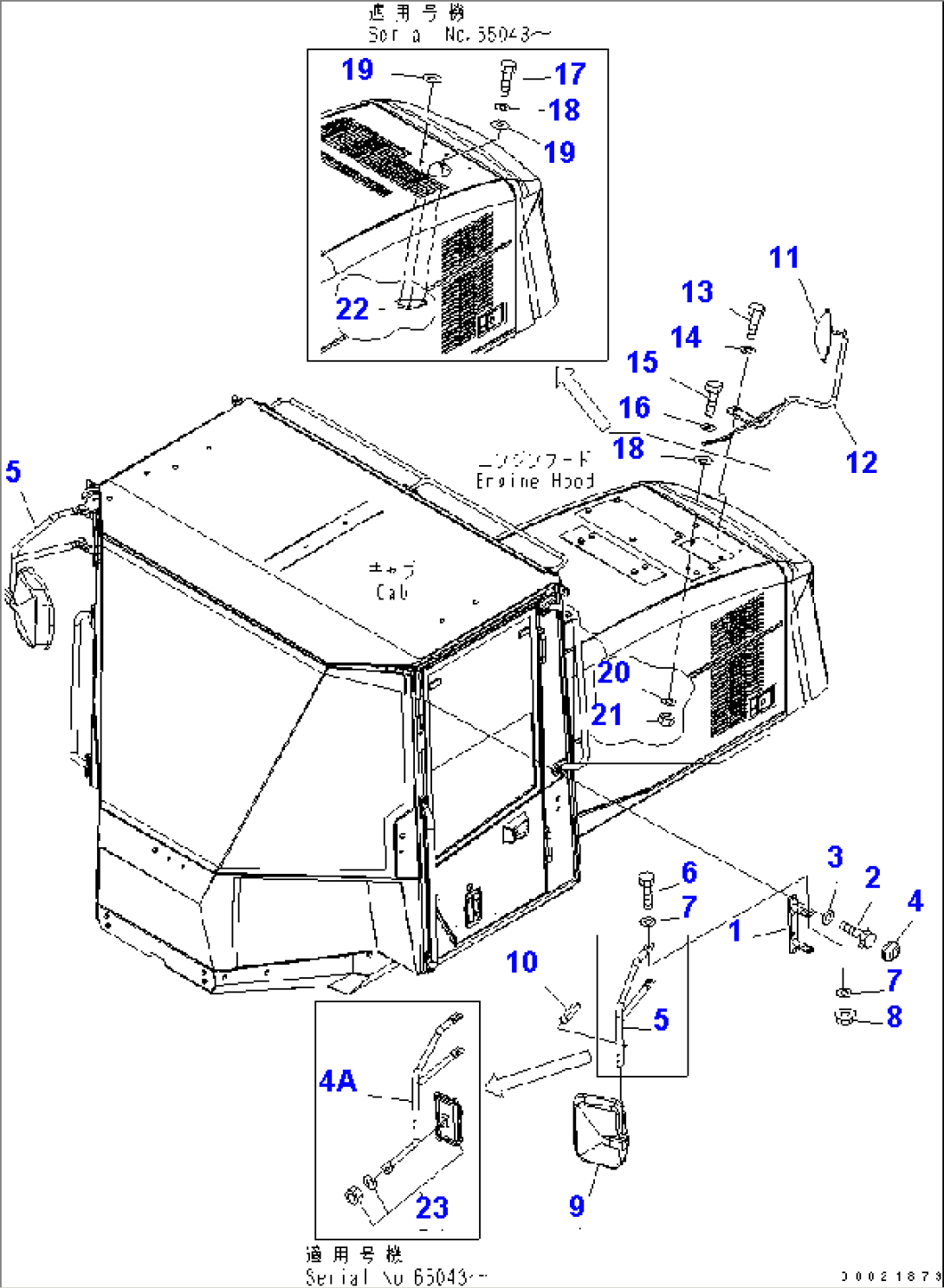

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-923-3250 | BRACKET | 65001- | |
| 2 | 01435-01025 | BOLT | 65001- | |
| 3 | 01643-31032 | WASHER | 65001- | |
| 4 | 363-54-31450 | CAP | 65001- | |
| 4A | 417-923-3890 | STAY | 65043- | |
| 5 | 418-923-3261 | STAY | 65043- | |
| 418-923-3261 | STAY | 65001-65042 | ||
| 6 | 01010-D1030 | BOLT | 65001- | |
| 7 | 01643-71032 | WASHER | 65001- | |
| 8 | 01596-01009 | NUT | 65001- | |
| 9 | 421-54-25610 | MIRROR | 65001- | |
| 421-54-25620 | BUSHING | 65001- | ||
| 421-54-25630 | HOLDER | 65001- | ||
| 421-54-25640 | LENS | 65001- | ||
| 421-54-25650 | FRAME | 65001- | ||
| 421-54-25660 | SCREW | 65001- | ||
| 10 | 04025-00632 | PIN | 65001- | |
| 11 | 418-976-1110 | MIRROR | 65001- | |
| 12 | 419-976-3111 | STAY | 65001- | |
| 13 | 01010-81025 | BOLT | 65001- | |
| 14 | 01643-31032 | WASHER | 65001- | |
| 15 | 01010-81035 | BOLT | 65043- | |
| 01010-81235 | BOLT | 65001-65042 | ||
| 16 | 01643-31032 | WASHER | 65043- | |
| 01643-31232 | WASHER | 65001-65042 | ||
| 17 | 01010-81025 | BOLT | 65043- | |
| 18 | 01643-31032 | WASHER | 65043- | |
| 19 | 130-43-64260 | COLLAR | 65043- | |
| 130-43-64260 | COLLAR | 65001-65042 | ||
| 20 | 01580-11210 | NUT | 65001-65042 | |
| 21 | 01643-31232 | WASHER | 65001-65042 | |
| 22 | 418-Z03-3150 | PLATE | 65043- | |
| 23 | 419-06-27130 | MIRROR | 65043- |
