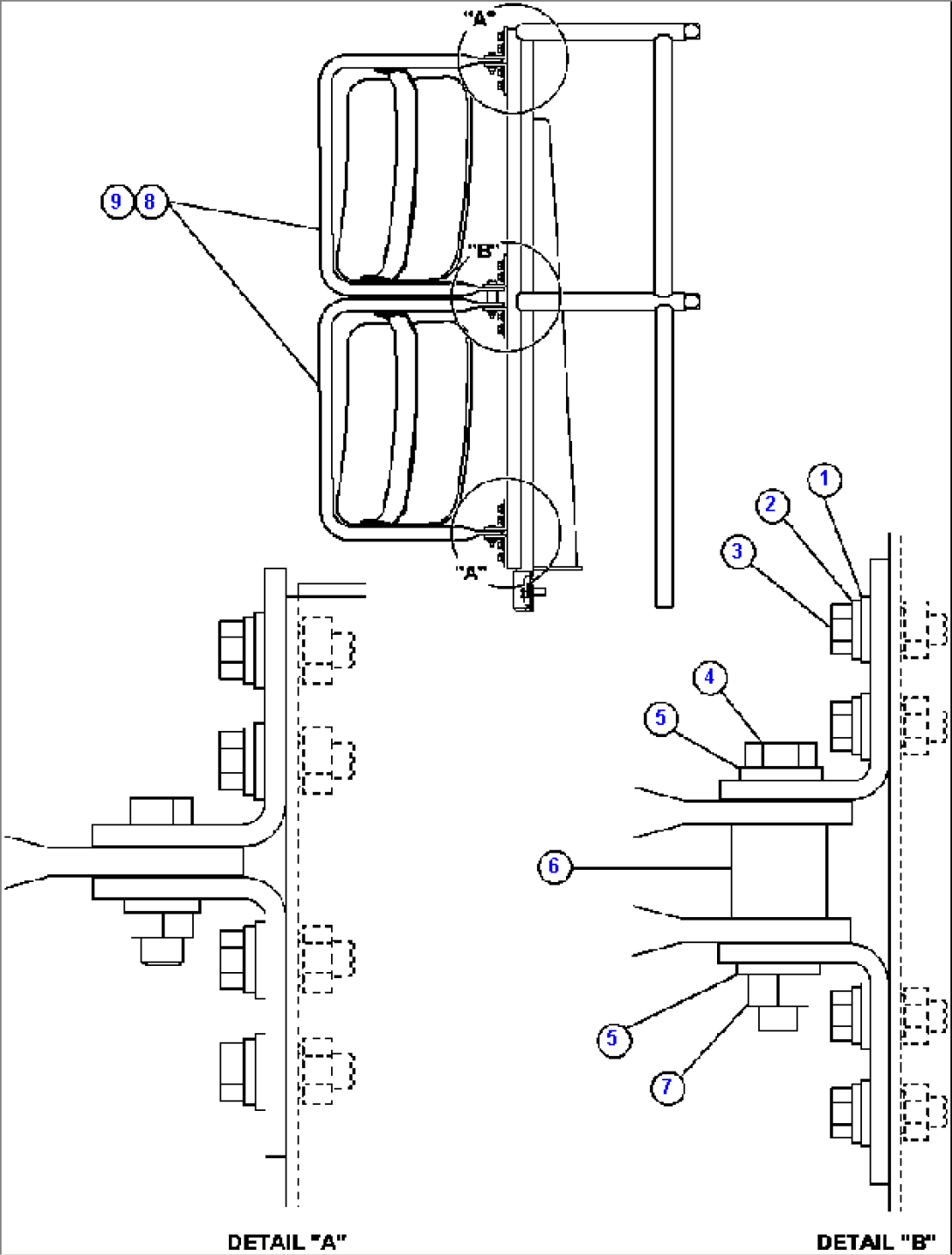

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01643-30823 | WASHER | ||
| 2 | MM0470 | LOCKWASHER - M8 | ||
| 3 | MM0026 | CAPSCREW - M8 X 1.25 X 25 | ||
| 4 | MM0079 | CAPSCREW - M10 X 1.50 X 70 | ||
| 5 | 01643-31032 | WASHER | ||
| 6 | EG8426 | SPACER | ||
| 7 | MM0719 | NUT - M10 | ||
| 8 | PB7490 | ARM BOW ASSEMBLY - R.H. | ||
| 9 | PB7491 | CONVEX MIRROR ASSEMBLY |
