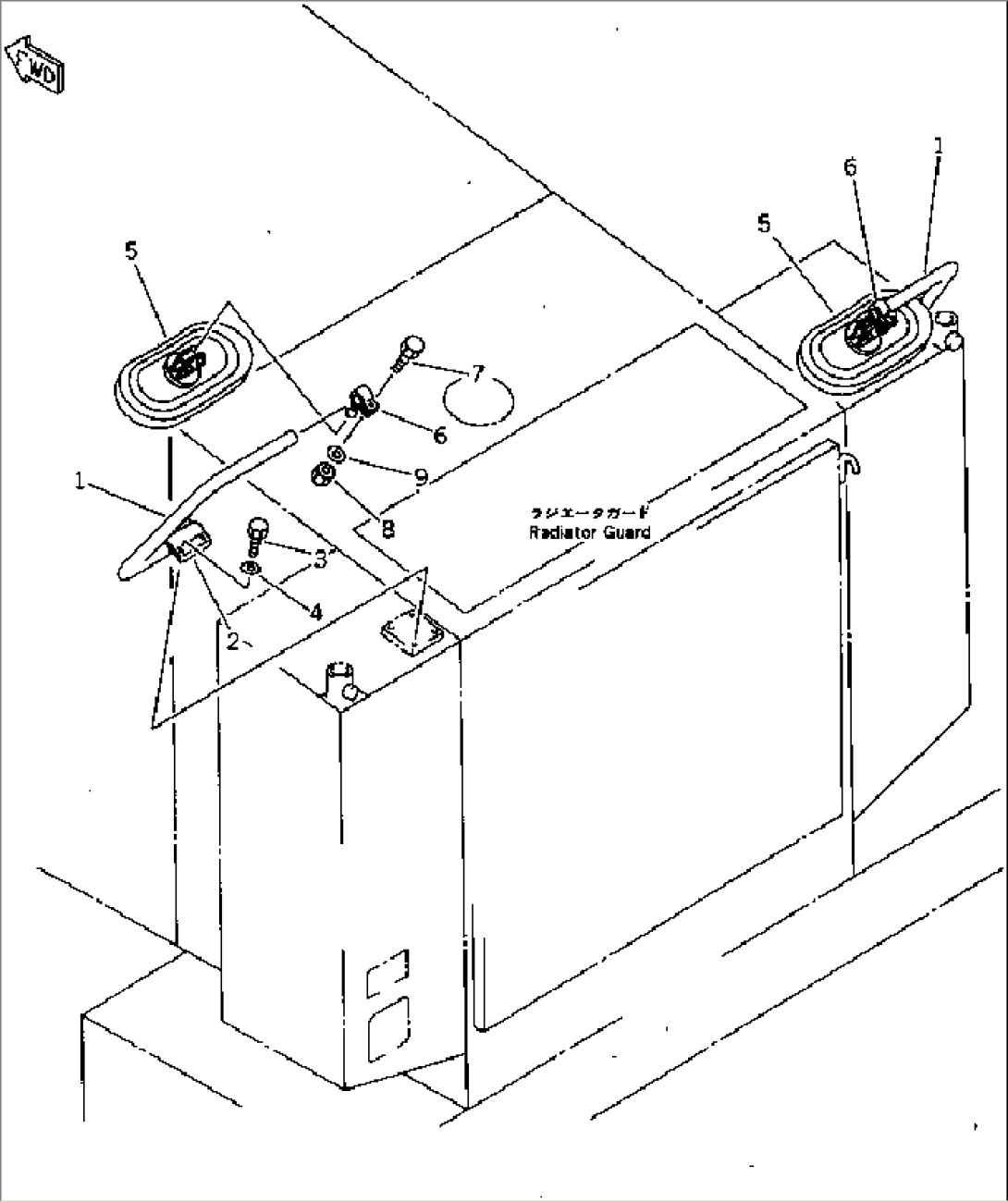

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 234-06-15230 | TUBE | 11009- | |
| 2 | 232-06-15131 | BRACKET | 11009- | |
| 3 | 01010-51035 | BOLT | 11009- | |
| 4 | 01643-31032 | WASHER | 11009- | |
| 5 | 08174-10001 | MIRROR | 11009- | |
| 6 | 232-06-15151 | PIVOT | 11009- | |
| 7 | 01010-50825 | BOLT | 11009- | |
| 8 | 01580-10806 | NUT | 11009- | |
| 9 | 01643-30823 | WASHER | 11009- |
