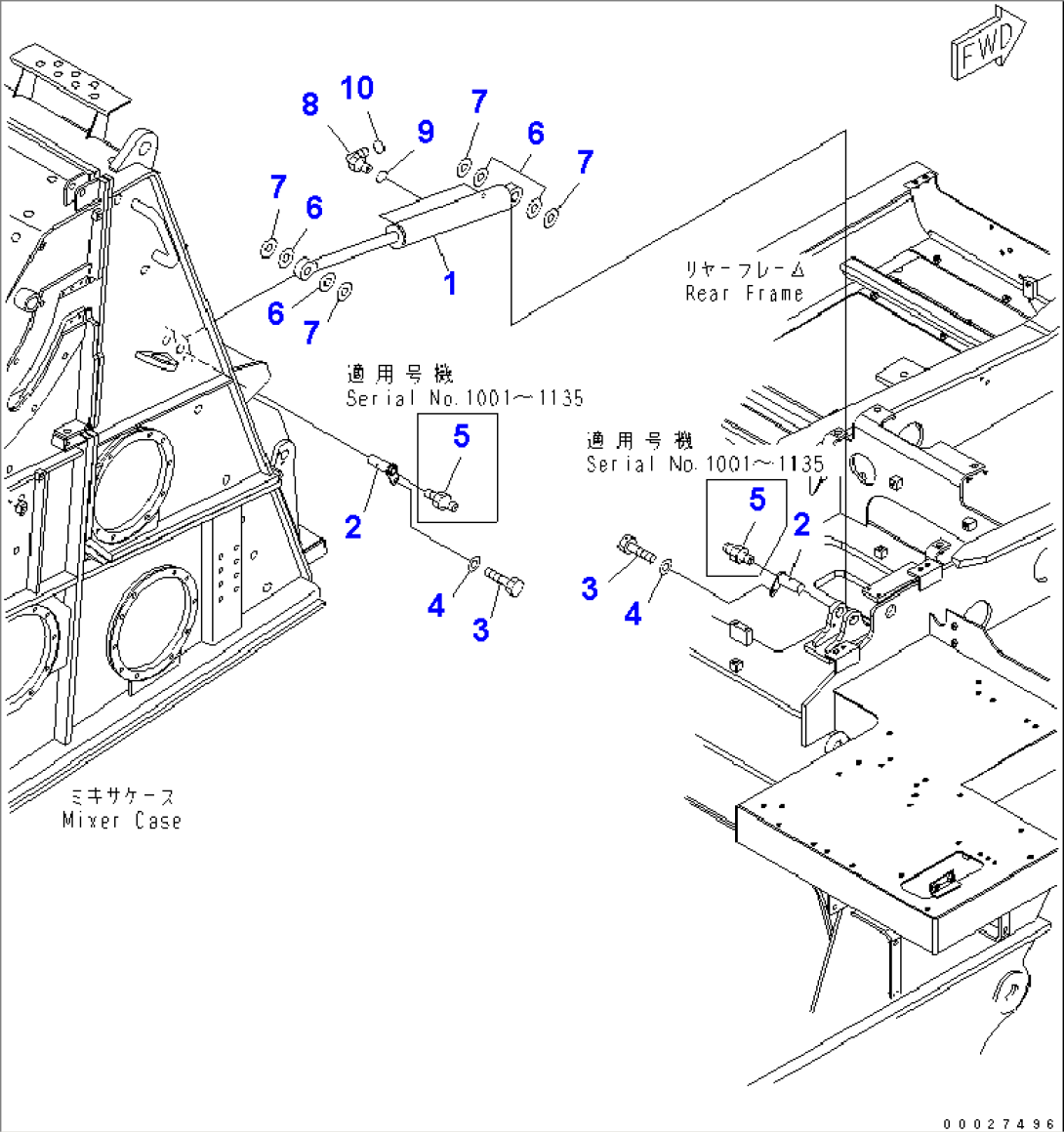

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (\8\707-00-0Z070) | CYLINDER ASS'Y | 1001- | |
| 2 | 20M-71-81120 | PIN | 1136- | |
| 2 | 8255-70-5250 | PIN | 1015-1135 | |
| 2 | \0\20M-70-71161 | PIN | 1001-1014 | |
| 3 | 01010-81020 | BOLT | 1001- | |
| 4 | 01643-31032 | WASHER | 1001- | |
| 5 | 07020-00000 | FITTING | 1001-1135 | |
| 6 | 207-46-31610 | SHIM | 1001- | |
| 7 | 205-27-51360 | SHIM, 0.5MM | 1001- | |
| 8 | 8255-62-5160 | ELBOW ASS'Y | 1001- | |
| 8 | 8255-62-4360 | ELBOW | 1001- | |
| 8 | 11Y-62-12930 | ORIFICE | 1001- | |
| 9 | 07002-11423 | O-RING | 1001- | |
| 10 | 02896-11008 | O-RING | 1001- |
