| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-03-12440 | TUBE | 20337- | |
| 2 | 150-55-15160 | BONNET | 20337- | |
| 3 | 150-55-15150 | BRACKET | 20337- | |
| 4 | 150-55-15130 | PLATE | 20337- | |
| 5 | 01010-31235 | BOLT | 20337- | |
| 6 | 01602-01236 | WASHER | 20337- | |
| 01643-01232 | WASHER | 20337- |
- Главная
- Каталог запчастей
- Бульдозеры
- D85a 12 s/n 10001 up
- Optional parts
- Modification parts for 200ps engine tractor (2/2)(#21017 )
Поиск по каталогу

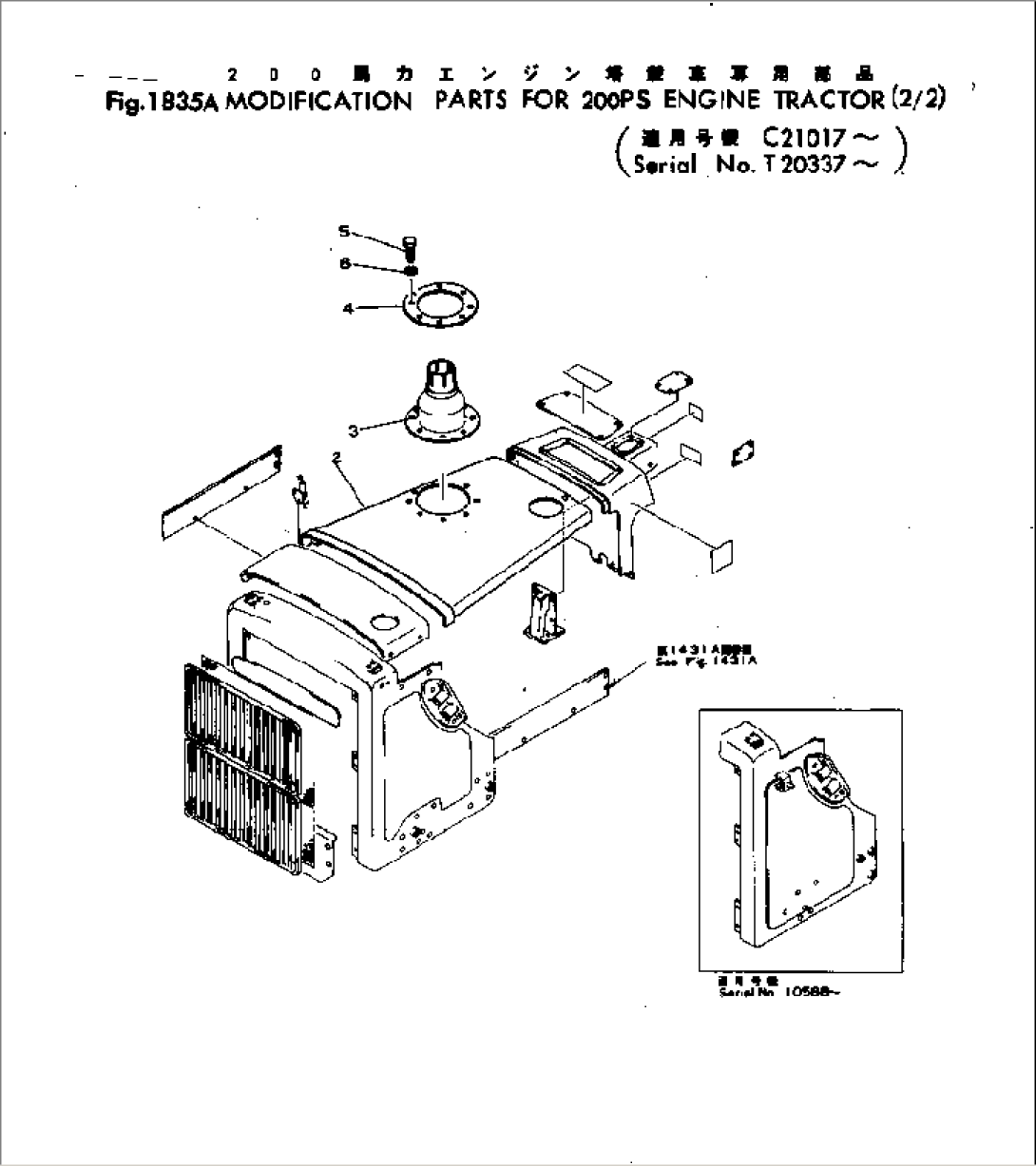

MODIFICATION PARTS FOR 200PS ENGINE TRACTOR (2/2)(#21017-)
