| Item | Part No. | Part Name | Qty | Serial No. |

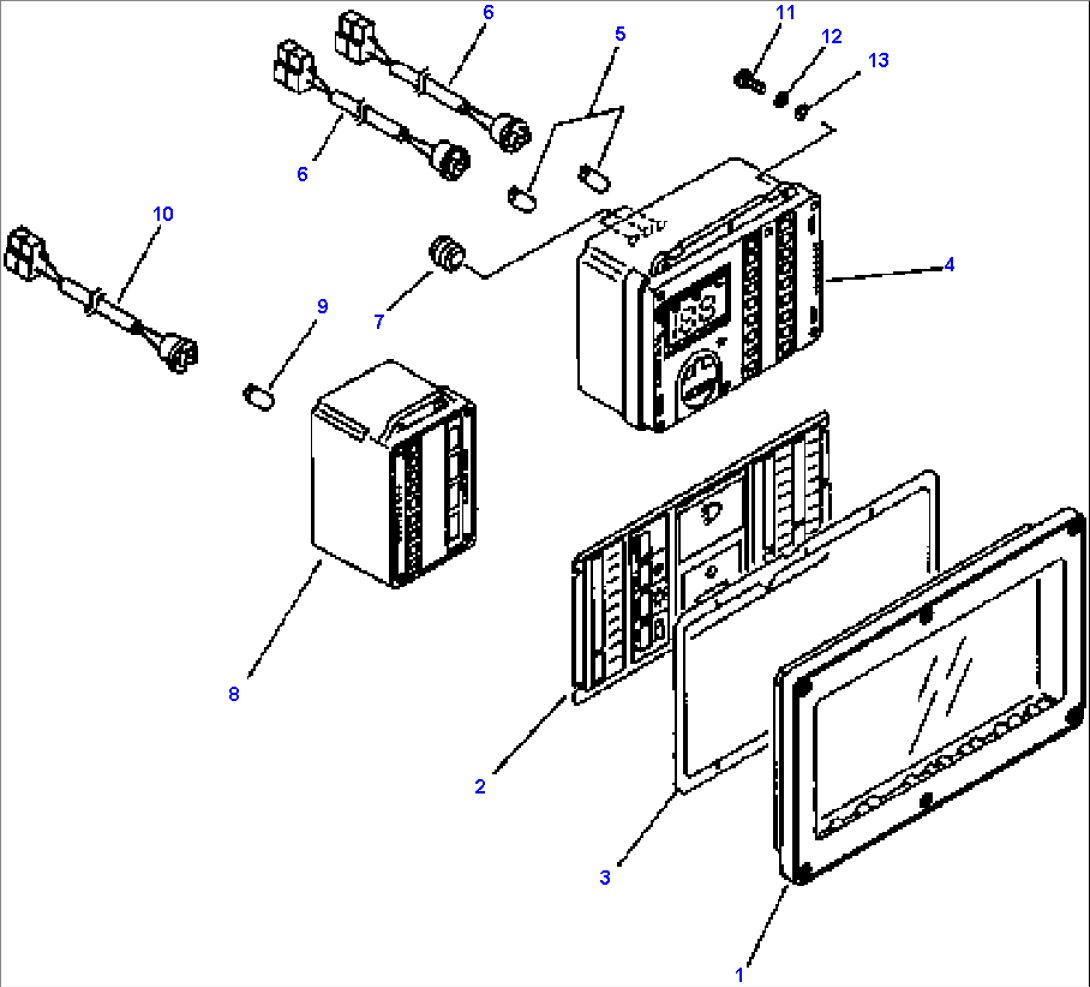

| 7831-51-2000 | PANEL ASSEMBLY, MONITOR | |||
| 1 | 7831-51-3000 | PANEL | ||
| 2 | 7831-51-4000 | PLATE | ||
| 3 | 7831-51-1910 | GASKET | ||
| 7831-51-5000 | SPEEDOMETER AND MONITOR ASSEMBLY | |||
| 4 | 7831-51-5100 | SPEEDOMETER AND MONITOR | ||
| 5 | 08102-12403 | BULB, 3W | ||
| 6 | 7831-61-9110 | HOLDER | ||
| 7 | 7861-51-1630 | GROMMET | ||
| 7831-51-6000 | MONITOR AND GAUGE ASSEMBLY | |||
| 8 | 7831-51-6100 | MONITOR AND GAUGE | ||
| 9 | 08102-12403 | BULB, 3W | ||
| 10 | 7831-61-9110 | HOLDER | ||
| 11 | 7861-86-1330 | SCREW | ||
| 12 | 01601-00410 | WASHER, SPRING | ||
| 13 | 01641-00405 | WASHER |
