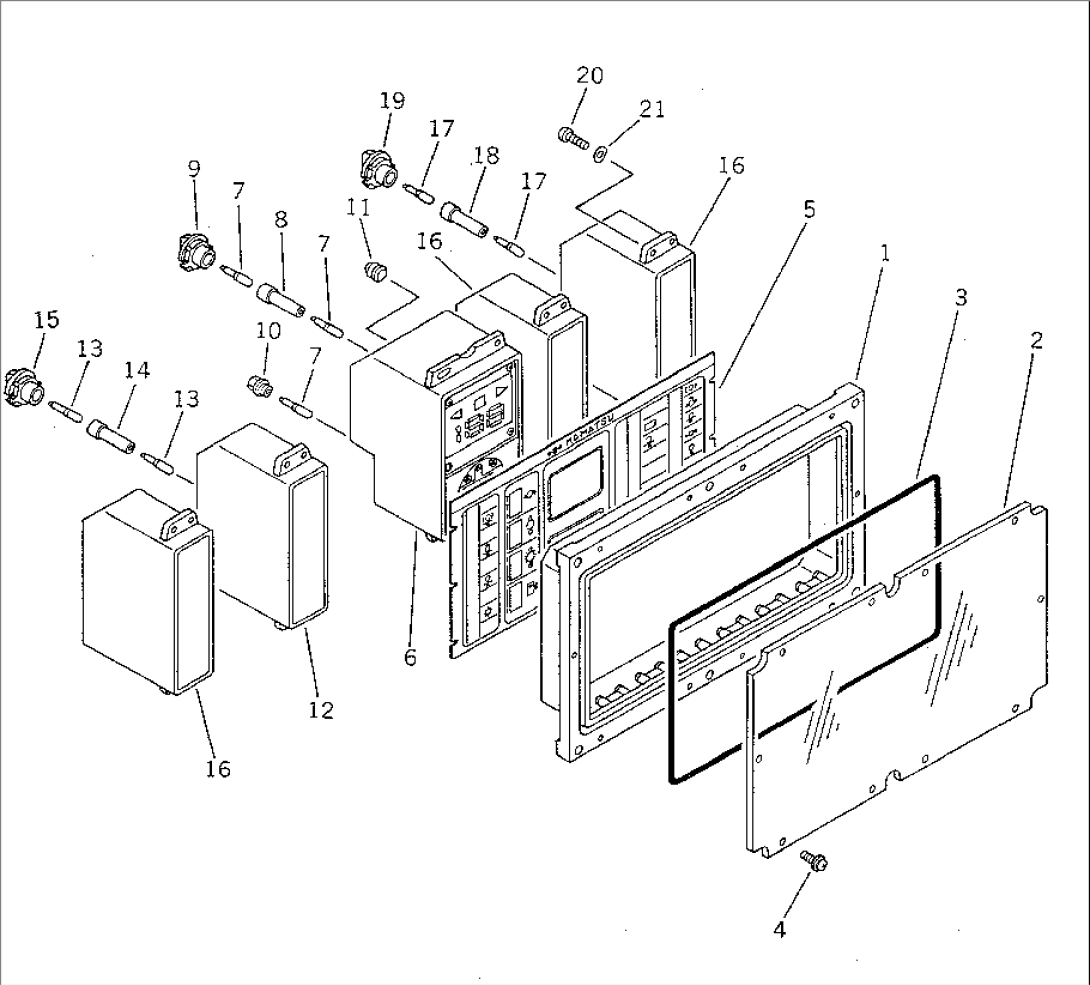

| Item | Part No. | Part Name | Qty | Serial No. |
| 7861-58-3100 | MONITOR ASS'Y (KM/H),(WITH EMERGENCY STEERING) | 10001-10499 | ||
| 7861-58-1100 | MONITOR ASS'Y (KM/H),(WITHOUT EMERGENCY STEERING) | 10001-10499 | ||
| 7861-58-5100 | MONITOR ASS'Y (MPH),(WITH EMERGENCY STEERING) | 10001-10499 | ||
| 7861-58-4100 | MONITOR ASS'Y (MPH),(WITHOUT EMERGENCY STEERING) | 10001-10499 | ||
| 1 | 7861-01-1120 | PANEL | 10001-10499 | |
| 2 | 7861-01-1220 | COVER | 10001-10499 | |
| 3 | 7861-01-1210 | O-RING | 10001-10499 | |
| 4 | 7861-01-2370 | SCREW | 10001-10499 | |
| 5 | 7861-57-3110 | PLATE,(WITH EMERGENCY STEERING) | 10001-10499 | |
| 7861-57-1110 | PLATE,(WITHOUT EMERGENCY STEERING) | 10001-10499 | ||
| 6 | 7861-51-1600 | METER ASS'Y (KM/H),SERVICE AND SPEED | 10001-10499 | |
| 7861-51-1501 | METER ASS'Y (MPH),SERVICE AND SPEED | 10001-10499 | ||
| 7 | 7815-11-1010 | BULB¤ 1.4W | 10001-10499 | |
| 8 | 7861-01-1320 | SOCKET | 10001-10499 | |
| 9 | 7861-21-1170 | CAP | 10001-10499 | |
| 10 | 7861-01-1820 | SOCKET | 10001-10499 | |
| 11 | 7861-51-1630 | GROMMET | 10001-10499 | |
| 12 | 7861-51-1701 | GAUGE ASS'Y | 10001-10499 | |
| 13 | 7815-11-1010 | BULB¤ 1.4W | 10001-10499 | |
| 14 | 7861-01-1320 | SOCKET | 10001-10499 | |
| 15 | 7861-21-1170 | CAP | 10001-10499 | |
| 16 | 7861-51-1300 | MONITOR ASS'Y | 10001-10499 | |
| 17 | 7815-11-1010 | BULB¤ 1.4W | 10001-10499 | |
| 18 | 7861-01-1320 | SOCKET | 10001-10499 | |
| 19 | 7861-21-1170 | CAP | 10001-10499 | |
| 20 | 01235-50412 | SCREW | 10001-10499 | |
| 21 | 01641-20405 | WASHER | 10001-10499 |
