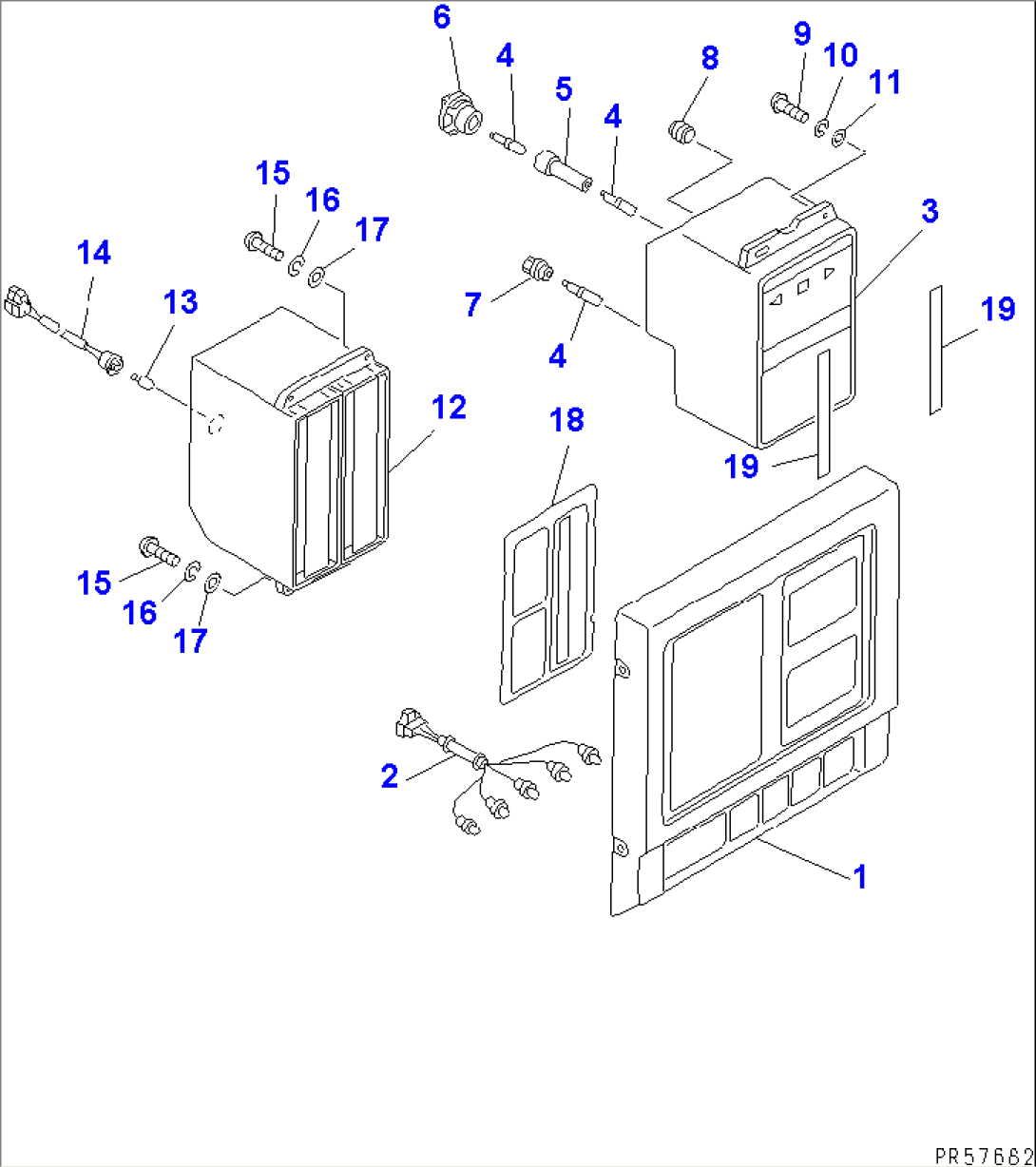

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23D-06-12212 | PANEL | 4630- | |
| 23D-06-12211 | PANEL | 4560-4629 | ||
| \0\23D-06-12210 | PANEL | 4525-4559 | ||
| 235-06-17250 | PANEL | 4030-4524 | ||
| 2 | 23D-06-13330 | LAMP ASS'Y | 4001- | |
| 08102-02403 | BULB¤ 3W | 4001- | ||
| 7831-85-6000 | SPEEDOMETER ASS'Y | 4041- | ||
| 3 | \6\ | SPEEDOMETER | 4041- | |
| 4 | 7815-11-1010 | BULB¤ 1.4W | 4041- | |
| 5 | 7861-01-1320 | SOCKET | 4041- | |
| 6 | 7861-21-1170 | CAP | 4041- | |
| 7 | 7861-01-1820 | SOCKET | 4041- | |
| 8 | 7861-51-1630 | GROMMET | 4041- | |
| 9 | 23C-06-12410 | SCREW | 4041- | |
| 10 | 01601-20410 | WASHER,SPRING | 4041- | |
| 11 | 01641-20405 | WASHER | 4041- | |
| 7831-71-6000 | MODULE ASS'Y | 4041- | ||
| 12 | \6\ | MODULE | 4041- | |
| 13 | 08102-12403 | BULB¤ 3W | 4041- | |
| 14 | 7831-61-9110 | HOLDER | 4041- | |
| 15 | 23C-06-12410 | SCREW | 4041- | |
| 16 | 01601-20410 | WASHER,SPRING | 4041- | |
| 17 | 01641-20405 | WASHER | 4041- | |
| 18 | 7831-85-4111 | PLATE | 4630- | |
| 7831-85-4110 | PLATE | 4041-4629 | ||
| 19 | 23D-06-12510 | SEAL | 4630- |
