| Item | Part No. | Part Name | Qty | Serial No. |
| 417-18-31203 | MOTOR | B12015- | ||
| \0\417-18-31202 | MOTOR | B11321-B12014 | ||
| \0\417-18-31201 | MOTOR | B10001-B11320 | ||
| 417-18-31303 | MOTOR | B12015- | ||
| \0\417-18-31302 | MOTOR | B11321-B12014 | ||
| \0\417-18-31301 | MOTOR | B10001-B11320 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1651-01A0 TO Y1651-07A1A. | ||||

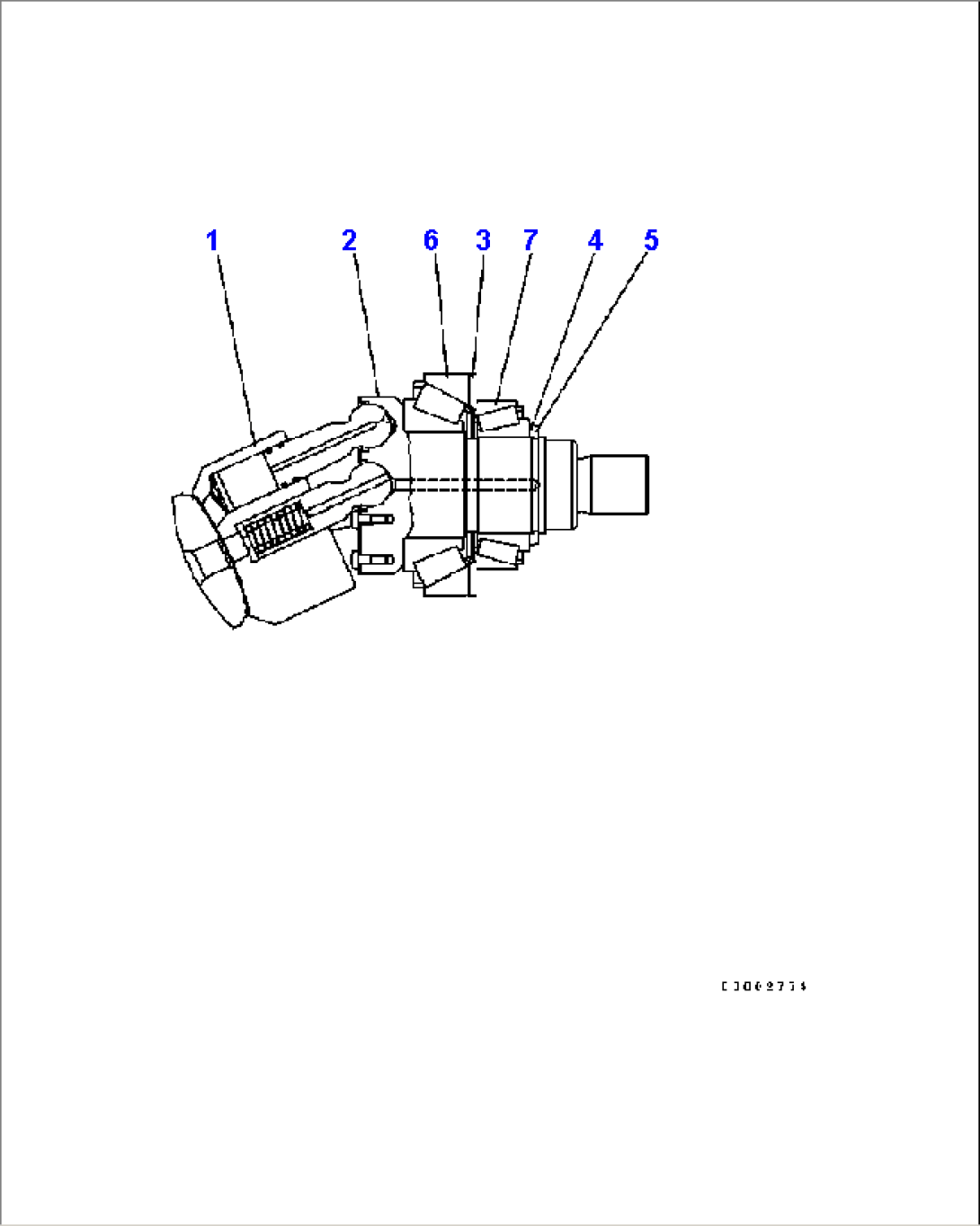

| UC4706054228 | ROTARY GROUP | B10001- | ||
| 1 | ((\7\UC4706037791)) | CYLINDER BLOCK, (SEE FIG. Y1651-03A0) | B10001- | |
| 2 | (\7\UC1706505022) | SHAFT | B10001- | |
| 3 | (\7\UC1706514979) | DISTANCE PIECE | B10001- | |
| (\7\UC1706515157) | DISTANCE PIECE | B10001- | ||
| (\7\UC1706515166) | DISTANCE PIECE | B10001- | ||
| (\7\UC1706515175) | DISTANCE PIECE | B10001- | ||
| (\7\UC1706515184) | DISTANCE PIECE | B10001- | ||
| 4 | (\7\UC1709214884) | SHIM, 2.65MM | B10001- | |
| (\7\UC1709214893) | SHIM, 2.7MM | B10001- | ||
| (\7\UC1709214903) | SHIM, 2.75MM | B10001- | ||
| (\7\UC1709214912) | SHIM, 2.8MM | B10001- | ||
| (\7\UC1709214921) | SHIM, 2.85MM | B10001- | ||
| (\7\UC1709214939) | SHIM, 2.9MM | B10001- | ||
| (\7\UC1709214949) | SHIM, 2.95MM | B10001- | ||
| (\7\UC1709214958) | SHIM, 3.0MM | B10001- | ||
| 5 | (\7\UC1700833651) | WASHER | B10001- | |
| 6 | (\7\UC1701543827) | BEARING | B10001- | |
| 7 | (\7\UC1701542934) | BEARING | B10001- |
