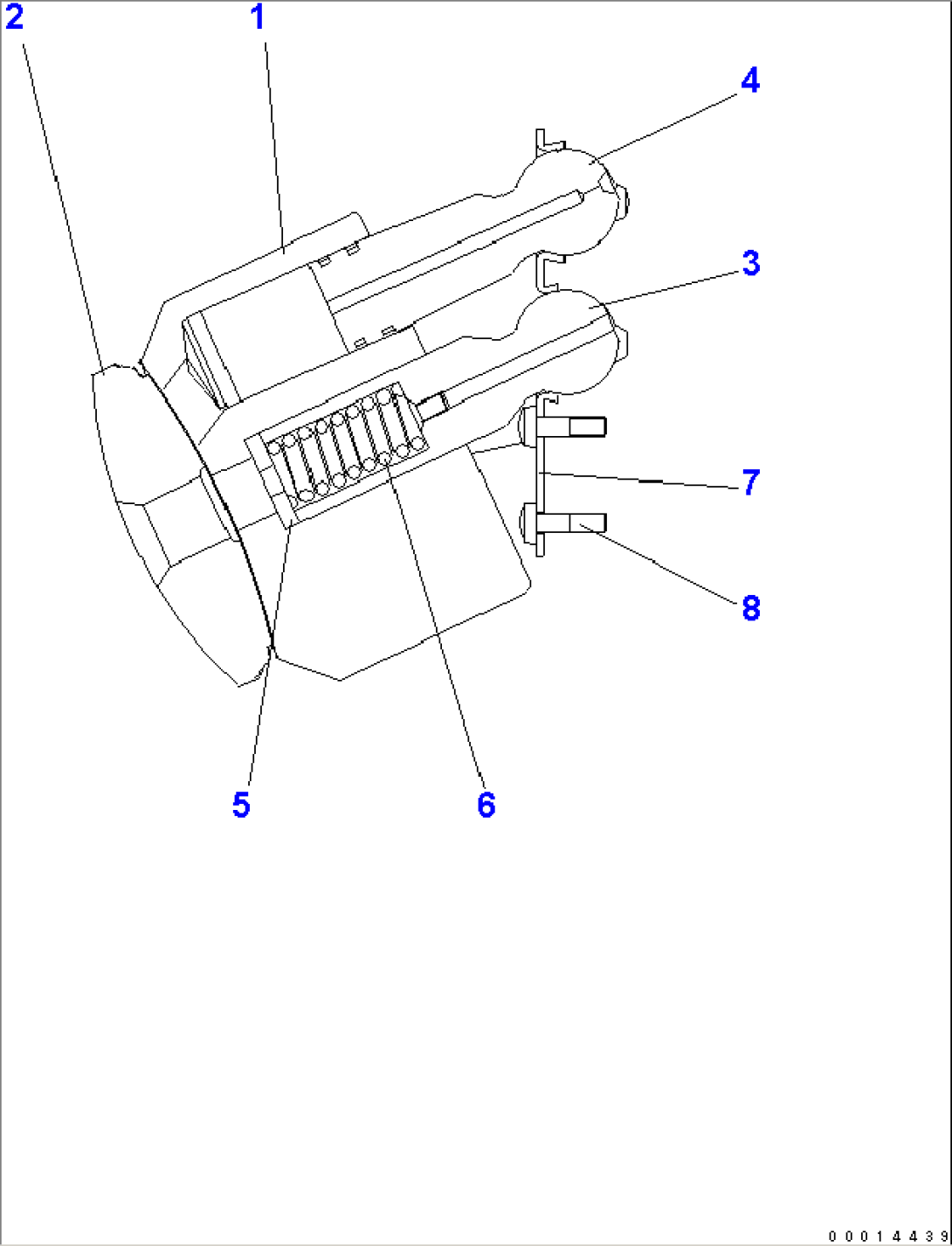

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-18-31203 | MOTOR | 69308- | ||
| \0\417-18-31202 | MOTOR | 69294-69307 | ||
| 417-18-31201 | MOTOR | 65001-69293 | ||
| 417-18-31303 | MOTOR | 69308- | ||
| \0\417-18-31302 | MOTOR | 69294-69307 | ||
| 417-18-31301 | MOTOR | 65001-69293 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1651-01A0 TO Y1651-07A1A. | ||||
| UC4706054228 | ROTARY GROUP | 65001- | ||
| (\7\UC4706037791) | CYLINDER BLOCK | 65001- | ||
| 1 | (\7\UC1704212892) | CYLINDER BLOCK | 69308- | |
| 1 | (\7\UC1720068844) | CYLINDER BLOCK | 65001-69307 | |
| 2 | (\7\UC1709217874) | PLATE | 65001- | |
| 3 | (\7\UC1709215089) | PIN,CENTER | 65001- | |
| 4 | UC4720219021 | PISTON ASS'Y | 65001- | |
| 5 | (\7\UC1100590857) | SHIM, 3.3MM | 65001- | |
| 5 | (\7\UC1100590866) | SHIM, 3.4MM | 65001- | |
| 5 | (\7\UC1709215263) | SHIM, 3.5MM | 65001- | |
| 5 | (\7\UC1020273331) | SHIM, 3.6MM | 65001- | |
| 5 | (\7\UC1020273322) | SHIM, 3.7MM | 65001- | |
| 5 | (\7\UC1020273313) | SHIM, 3.8MM | 65001- | |
| 5 | (\7\UC1020273304) | SHIM, 3.9MM | 65001- | |
| 5 | (\7\UC1020273294) | SHIM, 4.0MM | 65001- | |
| 6 | (\7\UC1709215079) | SPRING | 65001- | |
| 7 | UCR902072552 | PLATE | 69308- | |
| 7 | UC1700628477 | PLATE | 65001-69307 | |
| 8 | UC1026024933 | SCREW | 69308- | |
| 8 | UC1704492355 | SCREW | 65001-69307 |
