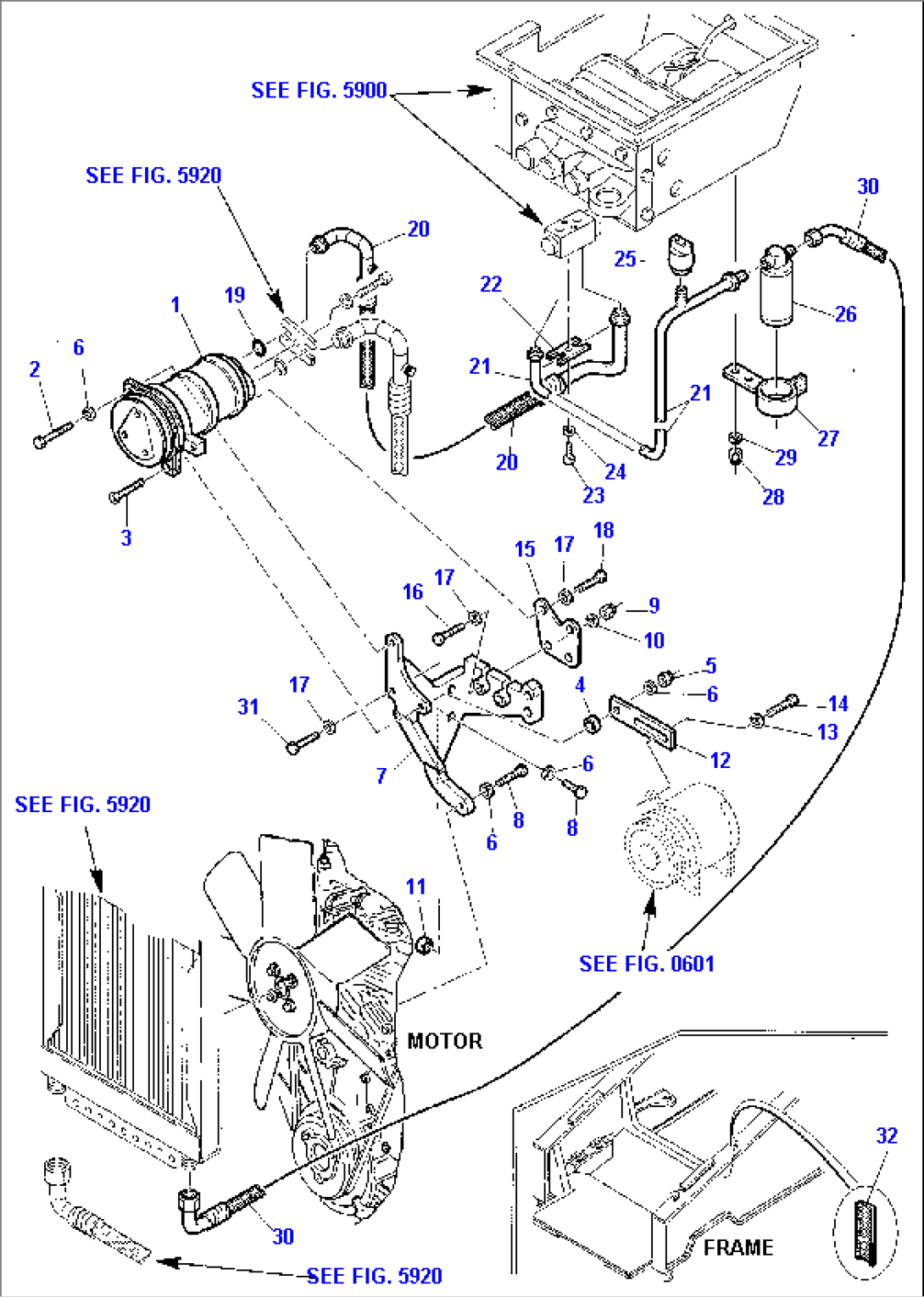

| Item | Part No. | Part Name | Qty | Serial No. |
| \0 | (888011041) | AIR BLENDING SYSTEM, ASSY | 15050001- | |
| \0 | (888011043) | MOTOR AIR BLENDING SYSTEM, KIT | 15050001- | |
| 1 | 312649051 | COMPRESSOR | 15050001- | |
| 2 | 801015112 | BOLT | 15050001- | |
| 3 | 801200727 | BOLT | 15050001- | |
| 4 | 312649603 | SPACER | 15050001- | |
| 5 | 801880001 | SELF-LOCKING NUT | 15050001- | |
| 6 | 802170002 | WASHER | 15050001- | |
| 7 | 888011070 | COMPRESSOR SUPPORT PLATE | 15050001- | |
| 8 | 801015111 | BOLT | 15050001- | |
| 9 | 801703008 | NUT | 15050001- | |
| 10 | 802150508 | WASHER | 15050001- | |
| 11 | 312649605 | SPACER | 15050001- | |
| 12 | 312649067 | SUPPORT | 15050001- | |
| 13 | 802148009 | WASHER | 15050001- | |
| 14 | 801015087 | BOLT | 15050001- | |
| 15 | 312649066 | REAR SUPPORT | 15050001- | |
| 16 | 801015090 | BOLT | 15050001- | |
| 17 | 802170001 | WASHER | 15050001- | |
| 18 | 801015086 | BOLT | 15050001- | |
| 19 | 312649607 | O-RING | 15050001- | |
| 20 | 312649064 | HOSE | 15050001- | |
| 21 | 312649065 | TUBE | 15050001- | |
| 22 | 312649059 | FLANGE FIXING TUBE | 15050001- | |
| 23 | 801105523 | BOLT | 15050001- | |
| 24 | 888011075 | SPRING WASHER | 15050001- | |
| 25 | 312649060 | AIR PRESSURE SWITCH | 15050001- | |
| 26 | 312649057 | FILTER | 15050001- | |
| 27 | 312649058 | FILTER SUPPORT | 15050001- | |
| 28 | 801880206 | SELF-LOCKING NUT | 15050001- | |
| 29 | 802148006 | WASHER | 15050001- | |
| 30 | 312649062 | HOSE | 15050001- | |
| 31 | 801015091 | BOLT | 15050001- | |
| 32 | 312601709 | GASKET | 15050001- | |
| SEE FIG. 0601 | ||||
| SEE FIG. 5900 | ||||
| SEE FIG. 5920 |
