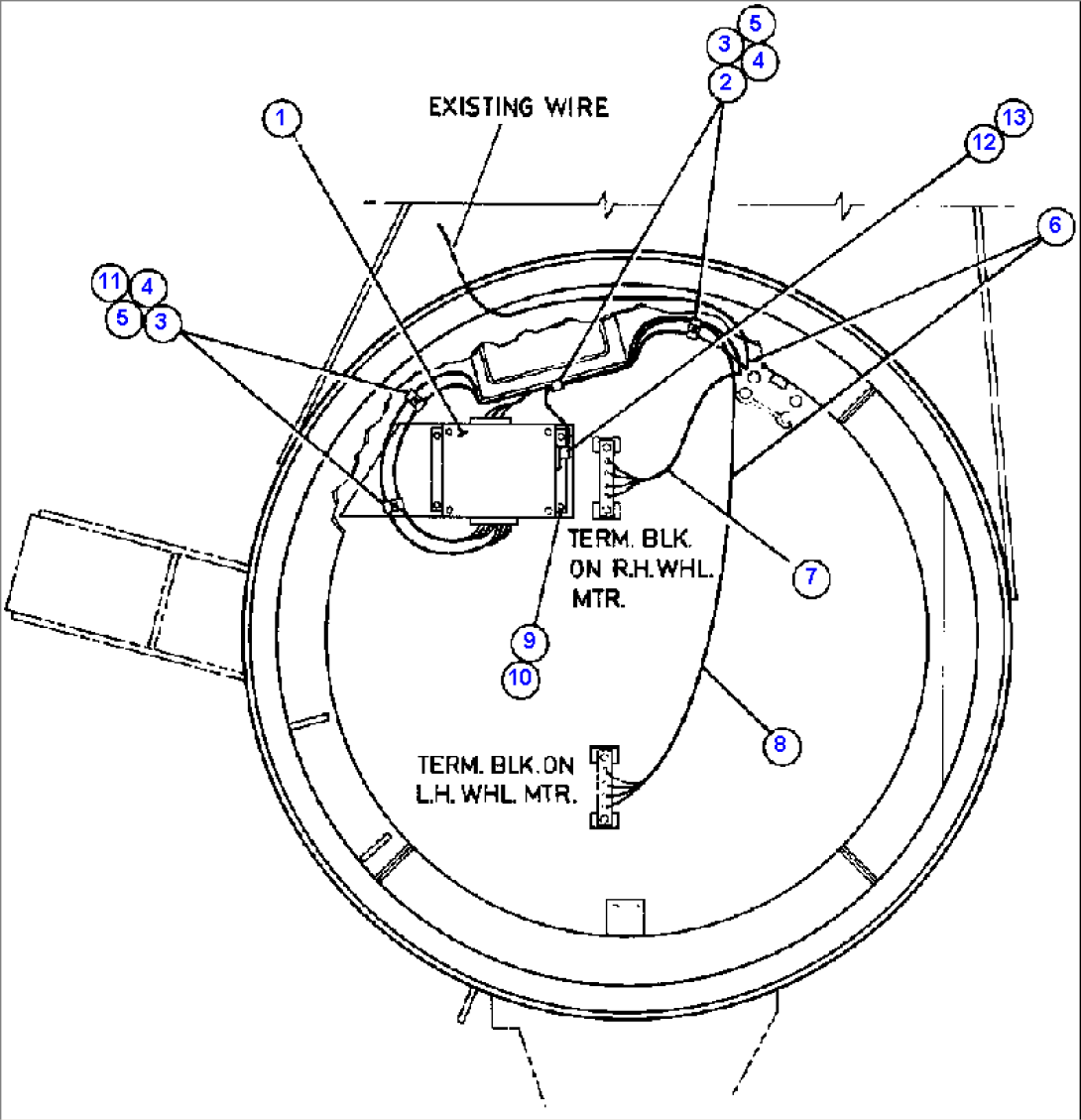

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PB5800 | PANEL, MOTOR HEAT SENSOR | ||
| 1 | TX1923 | BRACKET | ||
| 2 | TG2568 | CLAMP | ||
| 3 | TC1233 | NUT - 3/8" - 16NC | ||
| 4 | VH9969 | WELD STUD - 3/8" - 16NC X 3/4" | ||
| 5 | TC1231 | LOCKWASHER - 3/8" | ||
| 6 | VH5017 | TYRAP | ||
| 7 | TK9572 | CABLE - R.H. | ||
| 8 | TK9571 | CABLE - L.H. | ||
| 9 | TD1548 | CAPSCREW - 1/4" - 20NC X 5/8" | ||
| 10 | DC3584 | LOCKWASHER - 1/4" | ||
| 11 | TG2562 | CLAMP | ||
| 12 | PB4767 | RELAY (SPDT) | ||
| 13 | VZ3250 | RELAY (SPDT) | ||
| NS|15 | NOTE: NS = NOT SHOWN | |||
| NS|16 | TK9574 | HARNESS - FROM HEAT SENSOR PANEL 9TB4) TO RELAY |
