| Item | Part No. | Part Name | Qty | Serial No. |
| (273-14-11000) | TRANSMISSION ASS'Y | 10011- | ||

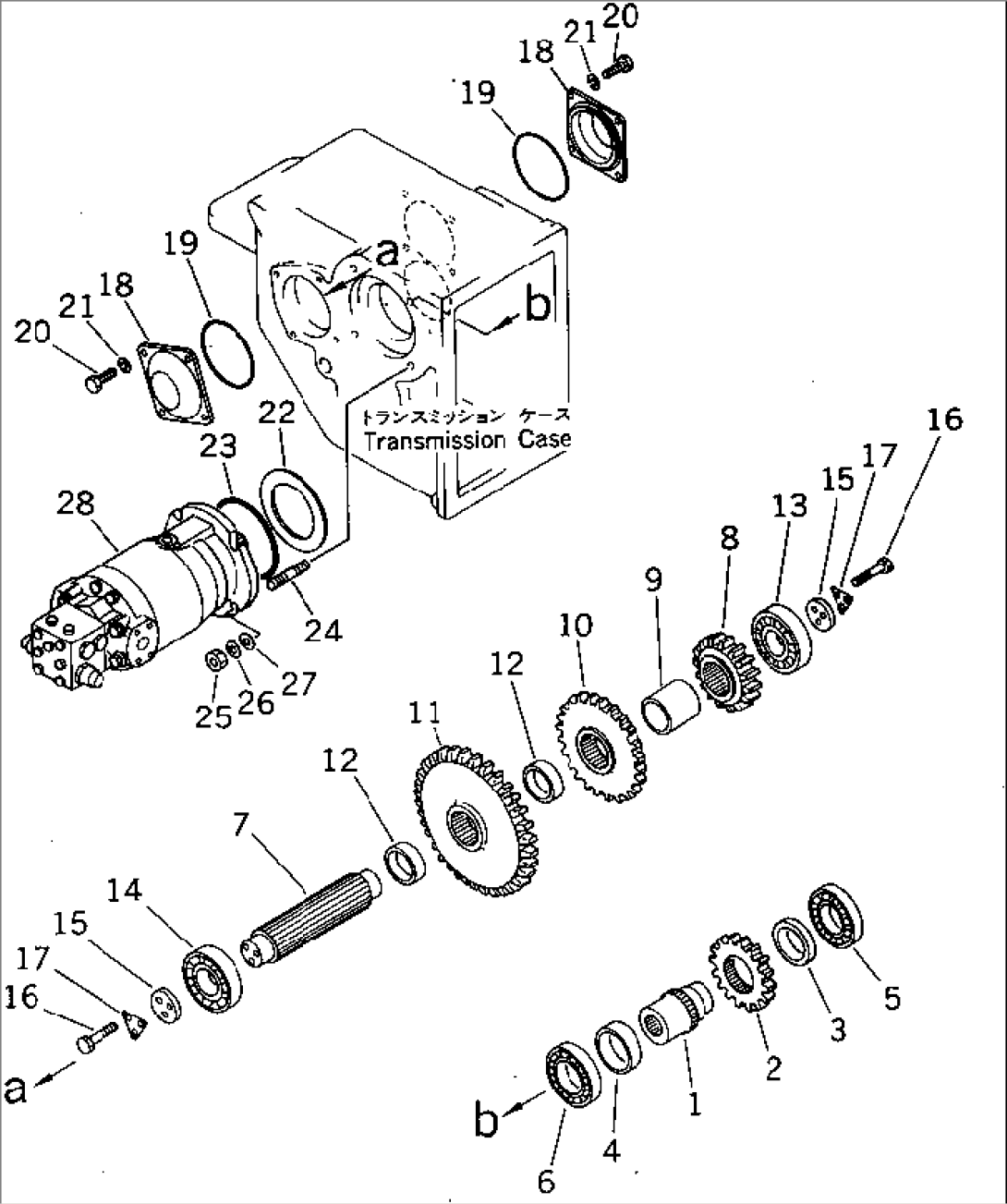

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2401 TO 2407. | ||||
| 1 | 273-14-11210 | SHAFT,MOTOR | 10011- | |
| 2 | 273-14-11220 | GEAR | 10011- | |
| 3 | 273-14-11240 | SPACER | 10011- | |
| 4 | 273-14-11230 | SPACER | 10011- | |
| 5 | 06040-06210 | BEARING | 10011- | |
| 6 | 06040-06012 | BEARING | 10011- | |
| 7 | 273-14-11310 | SHAFT,INTERMEDIATE | 10011- | |
| 8 | 273-14-11340 | GEAR | 10011- | |
| 9 | 273-14-11360 | SPACER | 10011- | |
| 10 | 273-14-11330 | GEAR | 10011- | |
| 11 | 273-14-11320 | GEAR | 10011- | |
| 12 | 273-14-11350 | SPACER | 10011- | |
| 13 | 06044-00309 | BEARING | 10011- | |
| 14 | 06040-06309 | BEARING | 10011- | |
| 15 | 238-14-12610 | HOLDER | 10011- | |
| 16 | 01010-51040 | BOLT | 10011- | |
| 17 | 238-14-12340 | LOCK | 10011- | |
| 18 | 273-14-11140 | COVER | 10011- | |
| 19 | 07000-12105 | O-RING | 10011- | |
| 20 | 01010-51025 | BOLT | 10011- | |
| 21 | 01602-21030 | WASHER,SPRING | 10011- | |
| 22 | 273-19-11250 | SPACER | 10011- | |
| 23 | 07000-12130 | O-RING | 10011- | |
| 24 | 01124-51440 | STUD | 10011- | |
| 25 | 01580-11411 | NUT | 10011- | |
| 26 | 01643-31445 | WASHER | 10011- | |
| 27 | 01643-31445 | WASHER | 10011- | |
| 28 | (273-61-14122) | MOTOR ASS'Y,TRANSMISSION | 10388- | |
| (273-61-14121) | MOTOR ASS'Y (MF22),TRANSMISSION | 10101-10387 | ||
| (273-61-14120) | MOTOR ASS'Y,TRANSMISSION | 10011-10100 |
