| Item | Part No. | Part Name | Qty | Serial No. |
| 417-18-31302 | MOTOR | 69294-69307 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1651-01A1A TO Y1651-07A1A . | ||||
| (UCR902121752) | CONTROL,(SEE FIG. Y1651-04A1A) | 69294-@ | ||

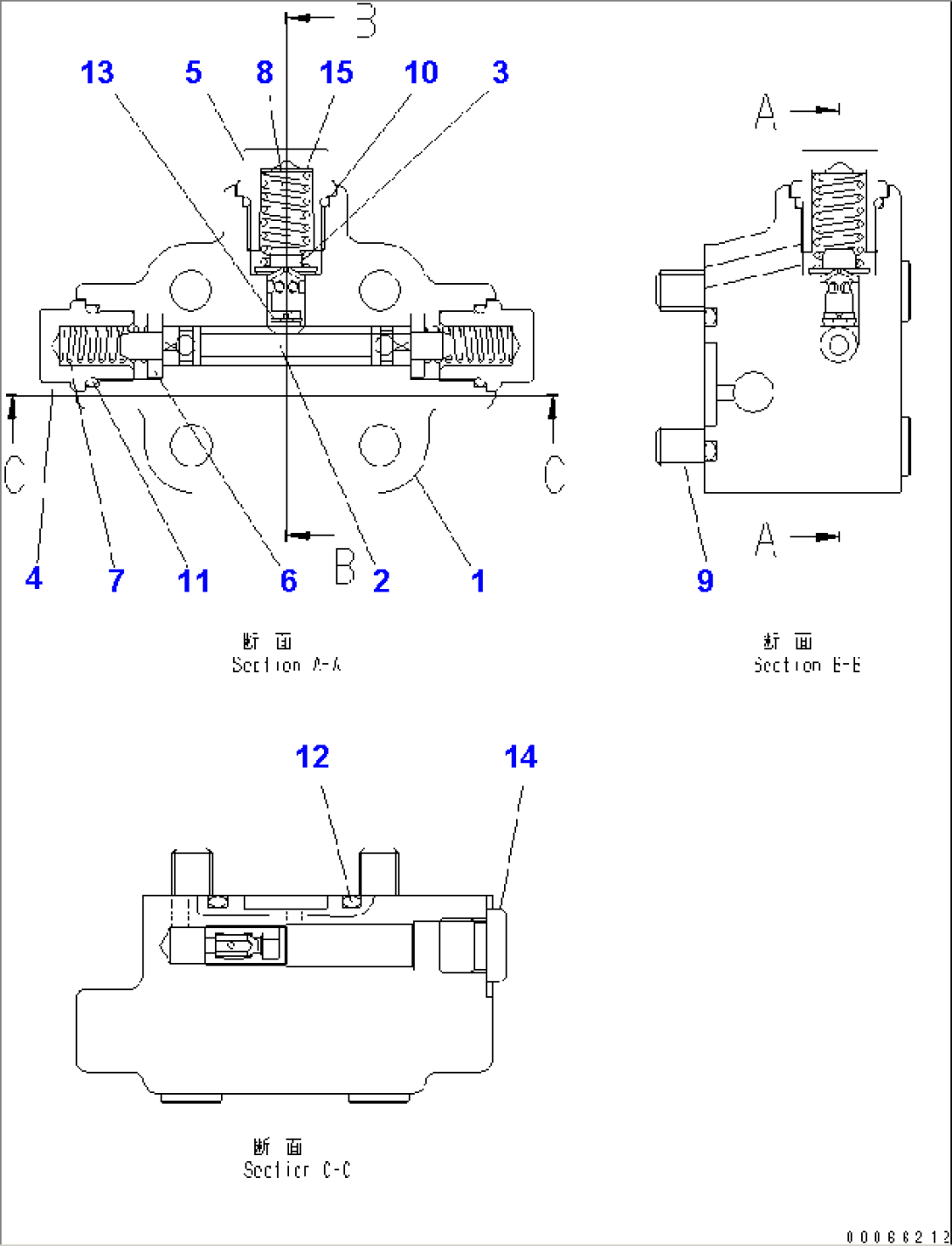

| (UCR902115810) | FLASHING VALVE,(SEE FIG. Y1651-06A1A) | 69294-@ | ||
| UCR902115775 | FLASHING VALVE | 69294-@ | ||
| 1 | UCR902115699 | BODY | 69294-@ | |
| 2 | UC1720001566 | SPOOL | 65001-@ | |
| 3 | UC1704302344 | PLUNGER | 65001-@ | |
| 4 | UCR902115717 | PLUG | 69294-@ | |
| 5 | UCR902115716 | PLUG | 69294-@ | |
| 6 | UC1704171122 | SPRING SEAT | 65001-@ | |
| 7 | UC1720119218 | SPRING | 65001-@ | |
| 8 | UC1704178489 | SPRING | 65001-@ | |
| 9 | UC1301581005 | BOLT,HEXAGON | 65001-@ | |
| 10 | UC1098308629 | O-RING | 69294-@ | |
| 11 | UC1098308601 | O-RING | 69294-@ | |
| 12 | UC1300372002 | O-RING | 65001-@ | |
| 13 | UC1701530124 | WASHER | 65001-69307 | |
| 14 | UC1701539305 | PLUG | 65001-69307 | |
| 15 | UC1701570791 | SHIM, 1.0MM | 65001-@ | |
| 15 | UC1701579651 | SHIM, 0.3MM | 65001-@ | |
| 15 | UC1701579669 | SHIM, 0.5MM | 65001-@ |
