| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81235 | CAPSCREW | ||
| 2 | 01643-31232 | FLAT WASHER | ||
| 3 | 561-54-61541 | PLATE | ||
| 4 | 561-54-61531 | GUARD (1) | ||
| 4 | EJ0239 | GUARD (2) | ||
| 5 | 561-54-61670 | PLATE | ||
| NS|7 | NOTE: (1) EFFECTIVE THRU A10274. | |||
| NS|8 | (2) EFFECTIVE WITH A10275. |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 5lc s/n a10224/a10228 a10315 (bfp42 05) (bepb010709)
- Body group
- Mud flap installation
Поиск по каталогу

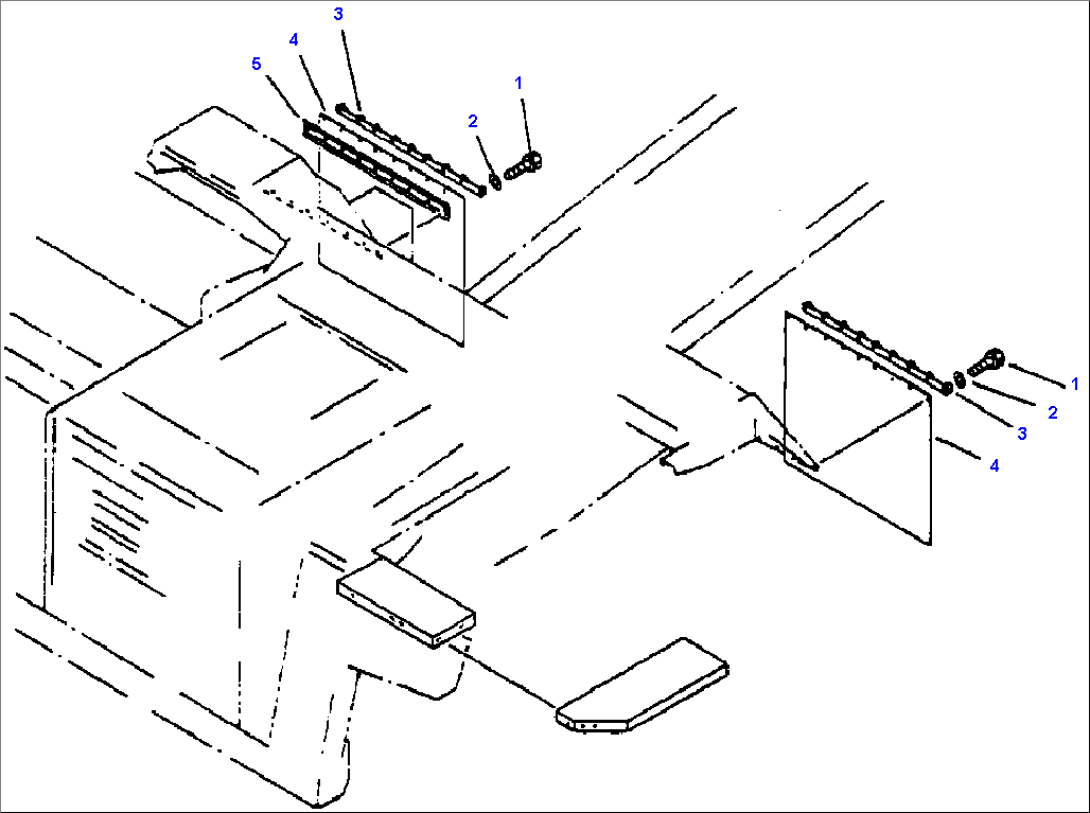

MUD FLAP INSTALLATION
