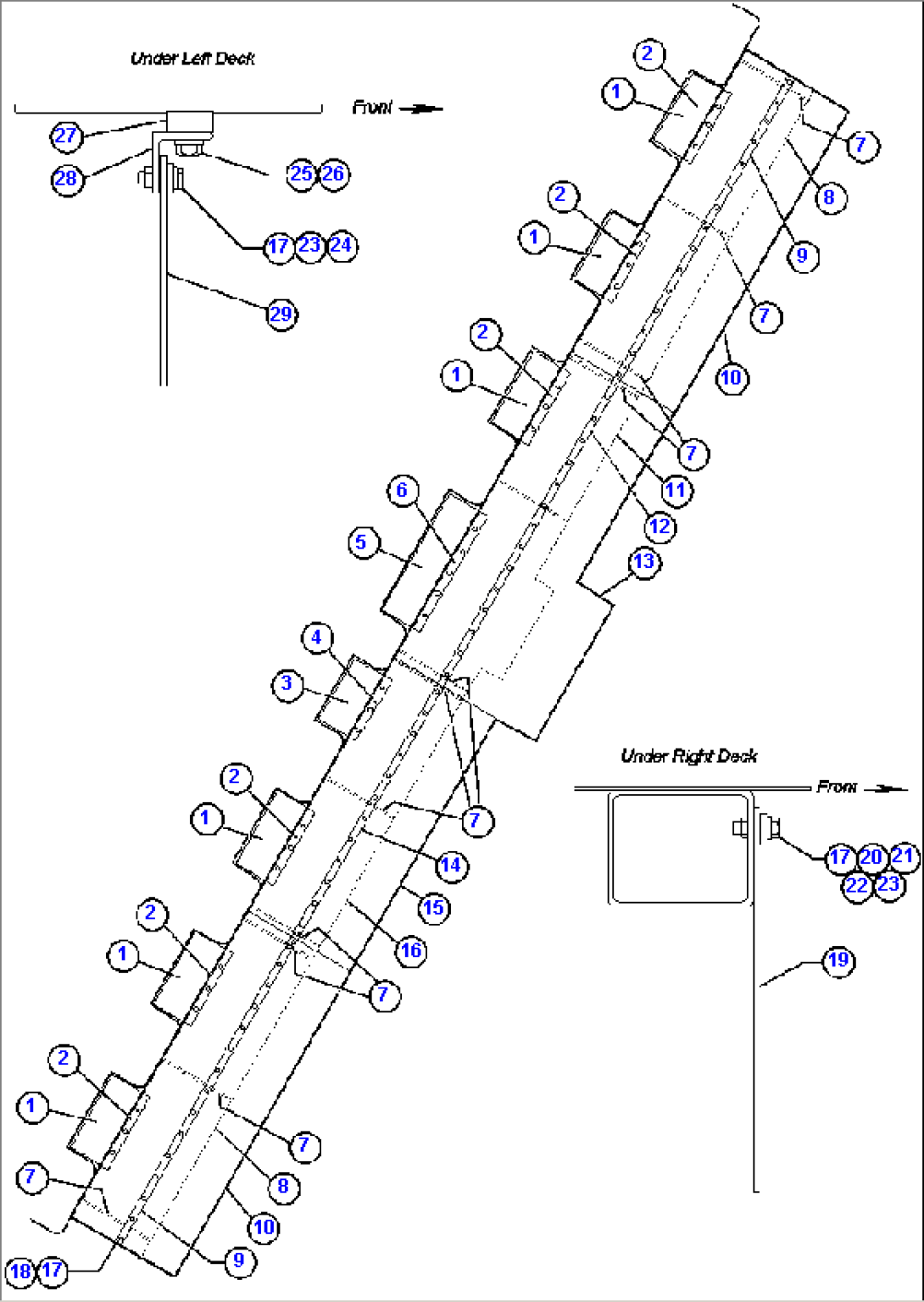

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EG1342 | FLAP, RUBBER | ||
| 2 | EF6791 | RETAINER | ||
| 3 | EF6789 | FLAP, RUBBER | ||
| 4 | EF6792 | RETAINER | ||
| 5 | EF6790 | FLAP, RUBBER | ||
| 6 | EF6793 | RETAINER | ||
| 7 | EJ0760 | GUSSET | ||
| 8 | EJ0761 | BAR, MOUNTING | ||
| 9 | TY8848 | RETAINER | ||
| 10 | TY8844 | FLAP, RUBBER | ||
| 11 | EJ0763 | BAR, MOUNTING | ||
| 12 | EF6800 | RETAINER | ||
| 13 | EF6798 | FLAP, RUBBER | ||
| 14 | EF6799 | RETAINER | ||
| 15 | EF6797 | FLAP, RUBBER | ||
| 16 | EJ0762 | BAR, MOUNTING | ||
| 17 | C1603 | CAPSCREW - 3/8" - 16NC X 1 1/4" | ||
| 18 | TG9225 | LOCKNUT - 3/8" - 16NC | ||
| 19 | EB5046 | FLAP, MUD - RIGHT FRONT | ||
| 20 | TZ4998 | BAR | ||
| 21 | TZ1460 | BAR | ||
| 22 | TZ1459 | BAR | ||
| 23 | C0312 | LOCKWASHER | ||
| 24 | TZ1454 | BAR | ||
| 25 | C1540 | LOCKWASHER - 1/2" | ||
| 26 | C1612 | CAPSCREW - 1/2" - 13NC X 1" | ||
| 27 | TZ1456 | MOUNTING, ANGLE | ||
| 28 | TZ1455 | BAR | ||
| 29 | TZ4996 | FLAP, MUD - LEFT FRONT |
