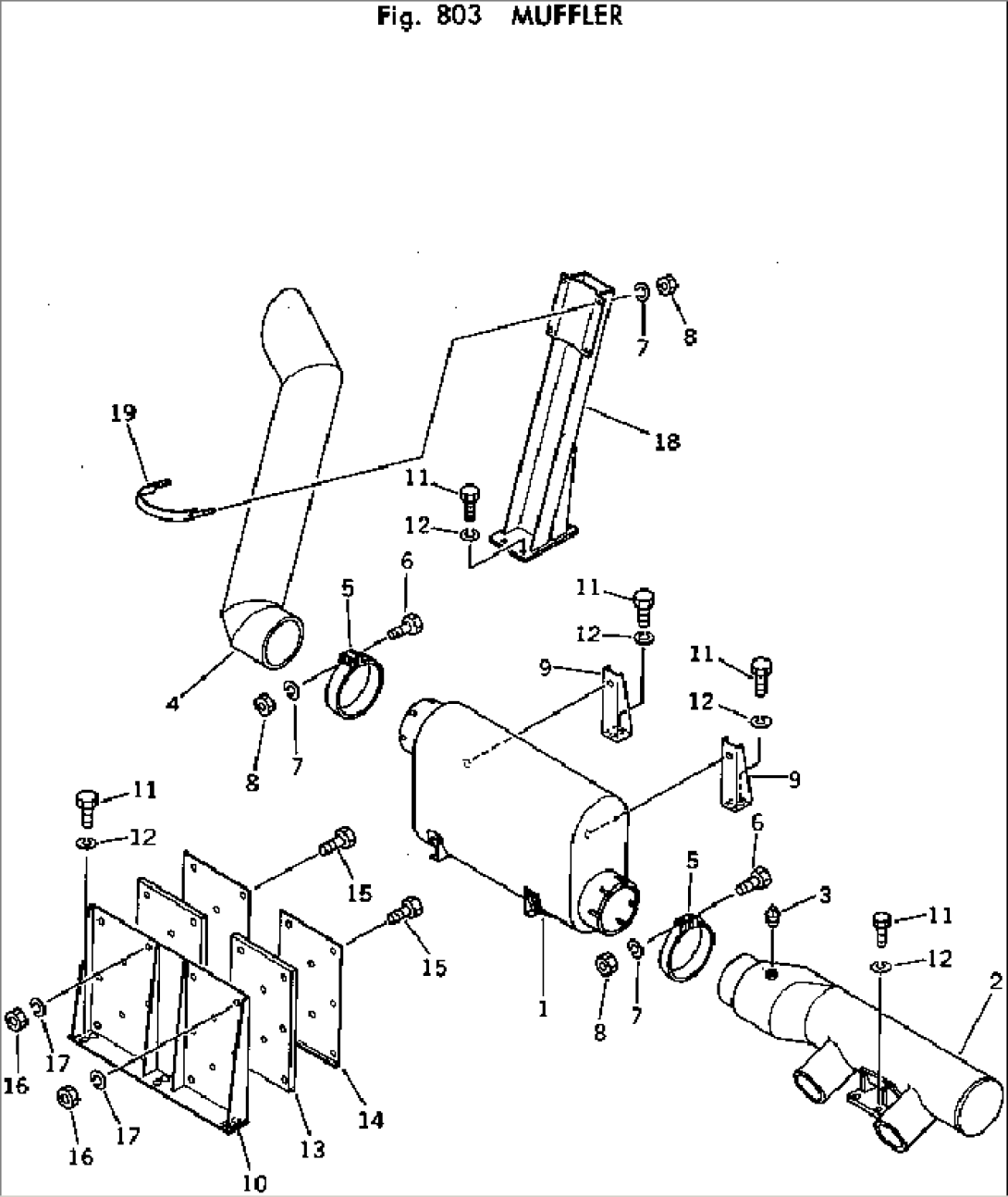

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-95-41710 | MUFFLER | 1102- | |
| 2 | 569-95-41720 | TUBE | 1102- | |
| 3 | 07042-00108 | PLUG | 1102- | |
| 4 | 569-95-41731 | TUBE | 1102- | |
| 5 | 569-95-41740 | BAND | 1102- | |
| 6 | 01010-51040 | BOLT | 1102- | |
| 7 | 01602-21030 | WASHER | 1102- | |
| 8 | 01580-31008 | NUT | 1102- | |
| 9 | 569-95-41750 | BRACKET | 1102- | |
| 10 | 569-95-41760 | COVER | 1102- | |
| 11 | 01010-51225 | BOLT | 1102- | |
| 12 | 01602-21236 | WASHER | 1102- | |
| 13 | 569-95-41770 | INSULATOR | 1102- | |
| 14 | 569-95-41780 | PLATE | 1102- | |
| 15 | 01010-50625 | BOLT | 1102- | |
| 16 | 01580-10605 | NUT | 1102- | |
| 17 | 01602-20619 | WASHER | 1102- | |
| 18 | 569-95-41870 | BRACKET | 1102- | |
| 19 | 566-02-11930 | BAND | 1102- |
