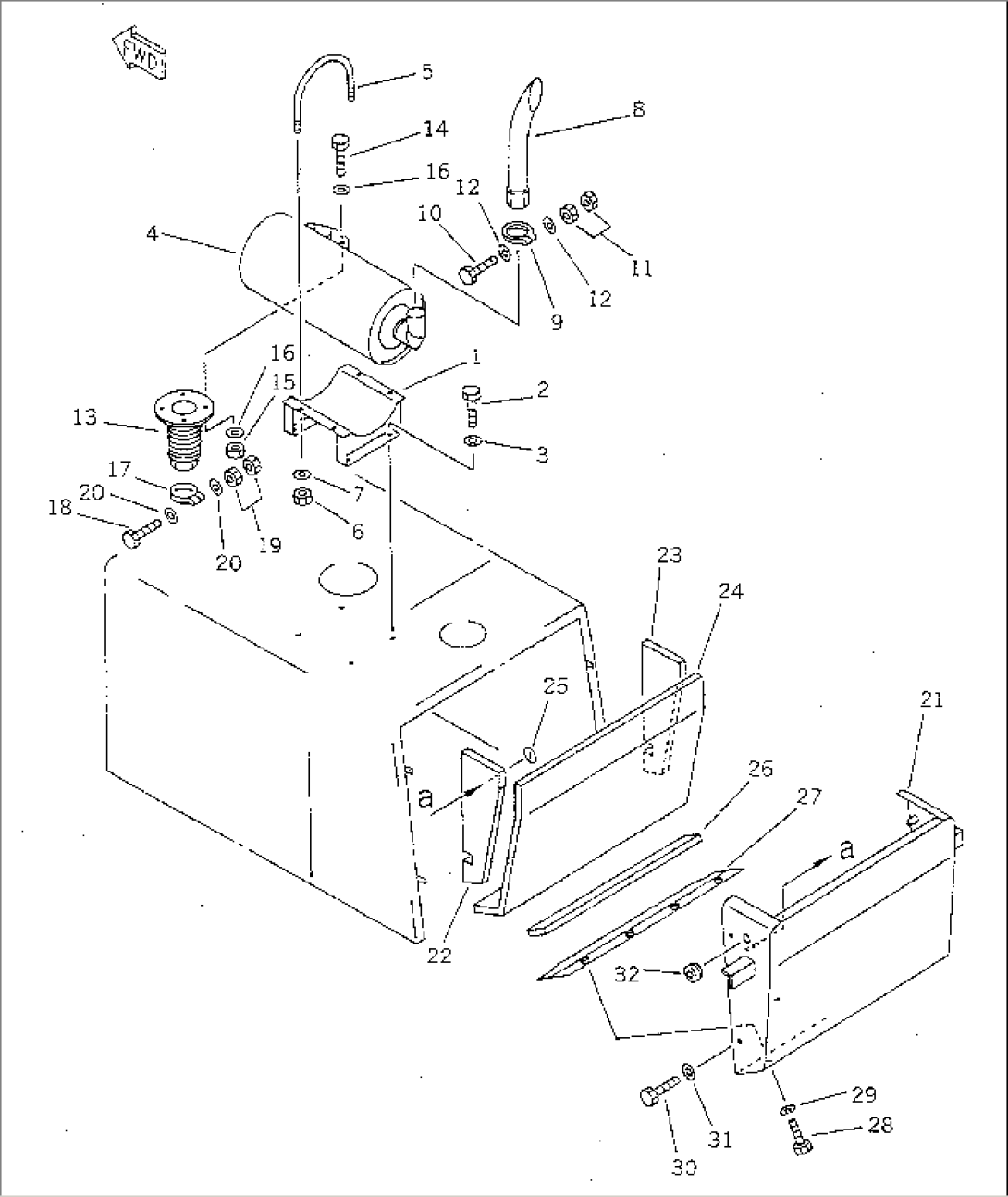

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 416-Z97-1460 | BRACKET | 32001- | |
| 2 | 01010-51225 | BOLT | 32001- | |
| 3 | 01643-31232 | WASHER | 32001- | |
| 4 | 416-Z97-1410 | MUFFLER | 32001- | |
| 5 | 6206-11-5960 | U-BOLT | 32001- | |
| 6 | 01580-10806 | NUT | 32001- | |
| 7 | 01643-30823 | WASHER | 32001- | |
| 8 | 416-Z97-1450 | PIPE | 32001- | |
| 9 | 416-Z97-1440 | CLAMP | 32001- | |
| 10 | 01010-51285 | BOLT | 32001- | |
| 11 | 01580-11210 | NUT | 32001- | |
| 12 | 01640-21223 | WASHER | 32001- | |
| 13 | 416-Z97-1420 | BELLOWS | 32001- | |
| 14 | 01010-51450 | BOLT | 32001- | |
| 15 | 01580-11411 | NUT | 32001- | |
| 16 | 01643-31445 | WASHER | 32001- | |
| 17 | 416-Z97-1430 | CLAMP | 32001- | |
| 18 | 01010-51285 | BOLT | 32001- | |
| 19 | 01580-11210 | NUT | 32001- | |
| 20 | 01640-21223 | WASHER | 32001- | |
| 21 | 416-Z97-1230 | DUCT,REAR | 32001- | |
| 22 | 416-Z97-1250 | SHEET,L.H. | 32001- | |
| 23 | 416-Z97-1260 | SHEET,R.H. | 32001- | |
| 24 | 416-Z97-1240 | SHEET | 32001- | |
| 25 | 04431-30000 | PLATE | 32001- | |
| 26 | 416-Z97-1270 | SHEET | 32001- | |
| 27 | 416-Z97-1280 | BAFFLE | 32001- | |
| 28 | 01010-50820 | BOLT | 32001- | |
| 29 | 01643-30823 | WASHER | 32001- | |
| 30 | 01010-51260 | BOLT | 32001- | |
| 31 | 01643-31232 | WASHER | 32001- | |
| 32 | 08037-02512 | GROMMET | 32001- |
