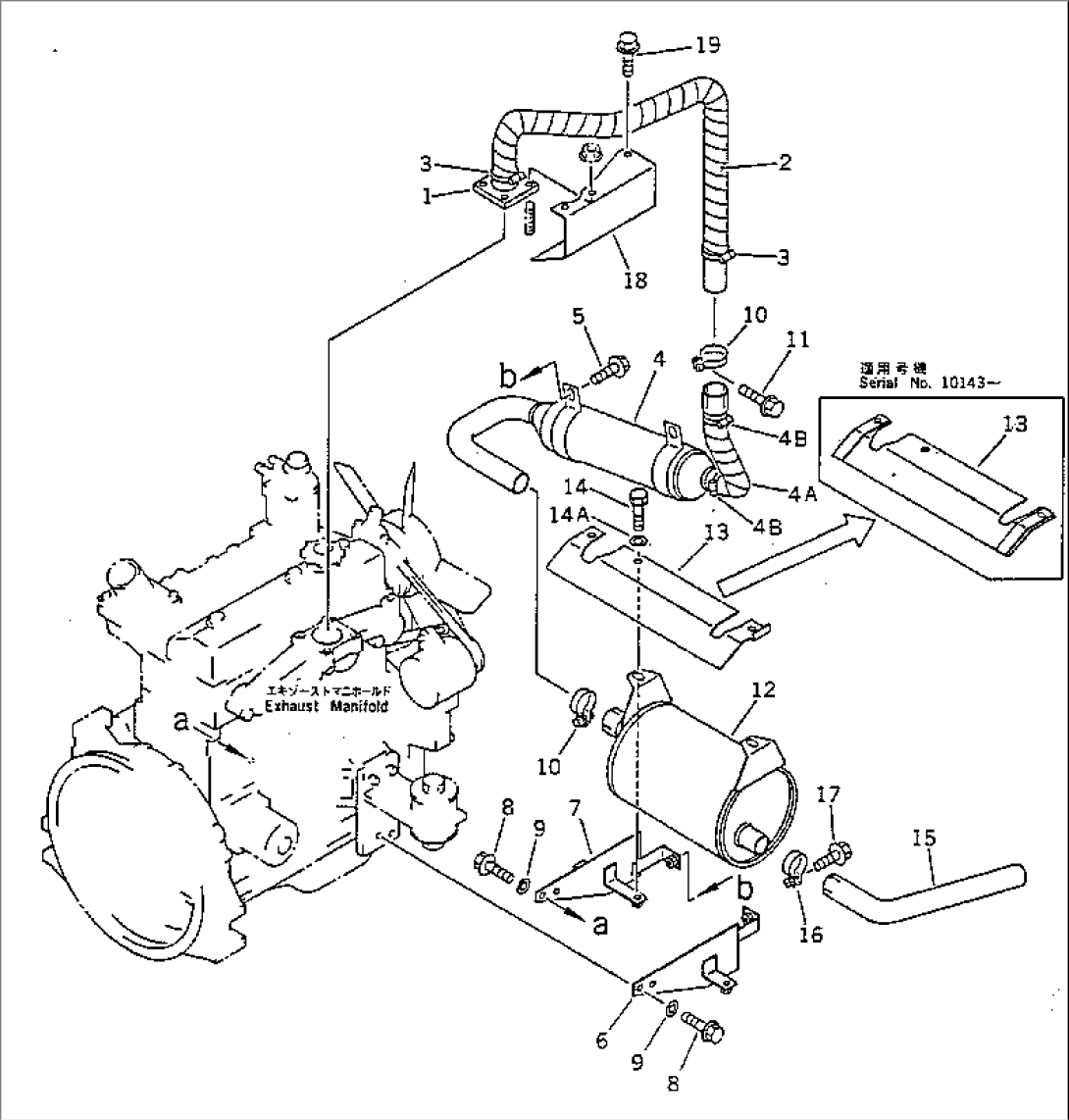

| Item | Part No. | Part Name | Qty | Serial No. |
| 42A-02-11110 | TUBE ASS'Y | 10001- | ||
| 1 | 42A-02-11120 | TUBE | 10001- | |
| 2 | 42A-02-11130 | SEAT | 10001- | |
| 3 | 07281-00549 | CLAMP | 10001- | |
| 42A-01-14130 | MUFFLER ASS'Y | 10001- | ||
| 4 | 42A-01-14140 | MUFFLER | 10001- | |
| 4A | 42A-01-14160 | SEAT | 10001- | |
| 4B | 07281-00549 | CLAMP | 10001- | |
| 5 | 01435-01220 | BOLT | 10001- | |
| 6 | 42A-01-14212 | BRACKET | 10364- | |
| 42A-01-14211 | BRACKET | 10001-10363 | ||
| 7 | 42A-01-14223 | BRACKET | 10364- | |
| 42A-01-14222 | BRACKET | 10001-10363 | ||
| 8 | 01010-51025 | BOLT | 10105- | |
| 01435-01025 | BOLT | 10001-10104 | ||
| 9 | 417-43-16210 | WASHER | 10001- | |
| 10 | 42A-02-11170 | CLAMP | 10001- | |
| 11 | 01435-00825 | BOLT | 10001- | |
| 12 | 42A-01-14111 | MUFFLER | 10001- | |
| 13 | 42A-01-14174 | COVER | 10143- | |
| 42A-01-14173 | COVER | 10123-10142 | ||
| 42A-01-14172 | COVER | 10001-10122 | ||
| 14 | 01010-51235 | BOLT | 10364- | |
| 01435-01220 | BOLT | 10001-10363 | ||
| 14A | 01643-31232 | WASHER | 10364- | |
| 15 | 42A-02-11140 | TUBE | 10001- | |
| 16 | 42A-02-11160 | CLAMP | 10001- | |
| 17 | 01435-00825 | BOLT | 10001- | |
| 18 | 42A-01-14310 | COVER | 10001- | |
| 19 | 01435-01020 | BOLT | 10001- |
