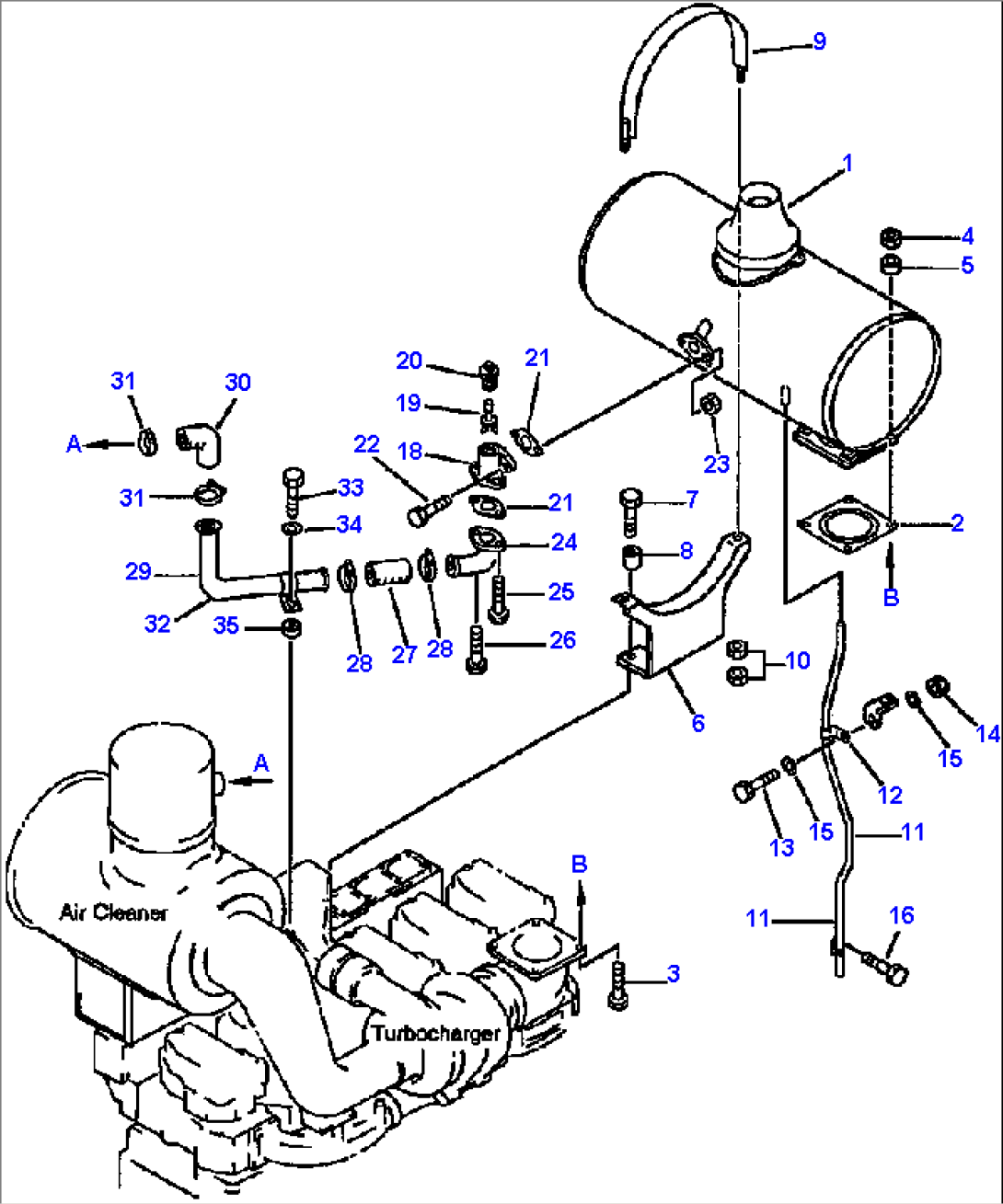

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6211-11-5510 | MUFFLER | ||
| 2 | 6211-11-5890 | GASKET, MUFFLER | ||
| 3 | 01010-31055 | BOLT | ||
| 4 | 01580-01008 | NUT | ||
| 5 | 6631-11-5630 | SPACER | ||
| 6 | 6211-11-5820 | BRACKET | ||
| 7 | 01010-31050 | BOLT | ||
| 8 | 6631-11-5630 | SPACER | ||
| 9 | 6211-11-5750 | BAND | ||
| 10 | 01580-01008 | NUT | ||
| 11 | 6211-11-5861 | TUBE, MUFFLER DRAIN | ||
| 12 | 6991-11-5990 | CLAMP | ||
| 13 | 01010-31025 | BOLT | ||
| 14 | 01580-01008 | NUT | ||
| 15 | 01640-21016 | WASHER | ||
| 16 | 01010-51020 | BOLT | ||
| 6128-11-5303 | CHECK VALVE ASSEMBLY | |||
| 18 | (NSS) | BODY, CHECK VALVE | ||
| 19 | (NSS) | VALVE | ||
| 20 | (NSS) | COVER | ||
| 21 | 6128-11-5610 | GASKET, CHECK VALVE | ||
| 22 | 01010-31035 | BOLT | ||
| 23 | 01580-01008 | NUT | ||
| 24 | 6211-11-4770 | ELBOW | ||
| 25 | 01010-31025 | BOLT | ||
| 26 | 01010-31075 | BOLT | ||
| 27 | 6217-11-5960 | TUBE | ||
| 28 | 07281-00549 | CLAMP | ||
| 29 | 6211-11-4650 | TUBE | ||
| 30 | 6211-11-4680 | HOSE | ||
| 31 | 07281-00549 | CLAMP | ||
| 32 | 6211-11-4780 | CLAMP | ||
| 33 | 01010-31045 | BOLT | ||
| 34 | 01642-01016 | WASHER | ||
| 35 | 6130-21-6760 | SPACER | ||
| N/I | GASKET KIT, CYLINDER HEAD (SEE PG E7-004) | |||
| F1 - INCLUDED IN CYLINDER HEAD GASKET KIT 6211-K1-0103. | ||||
