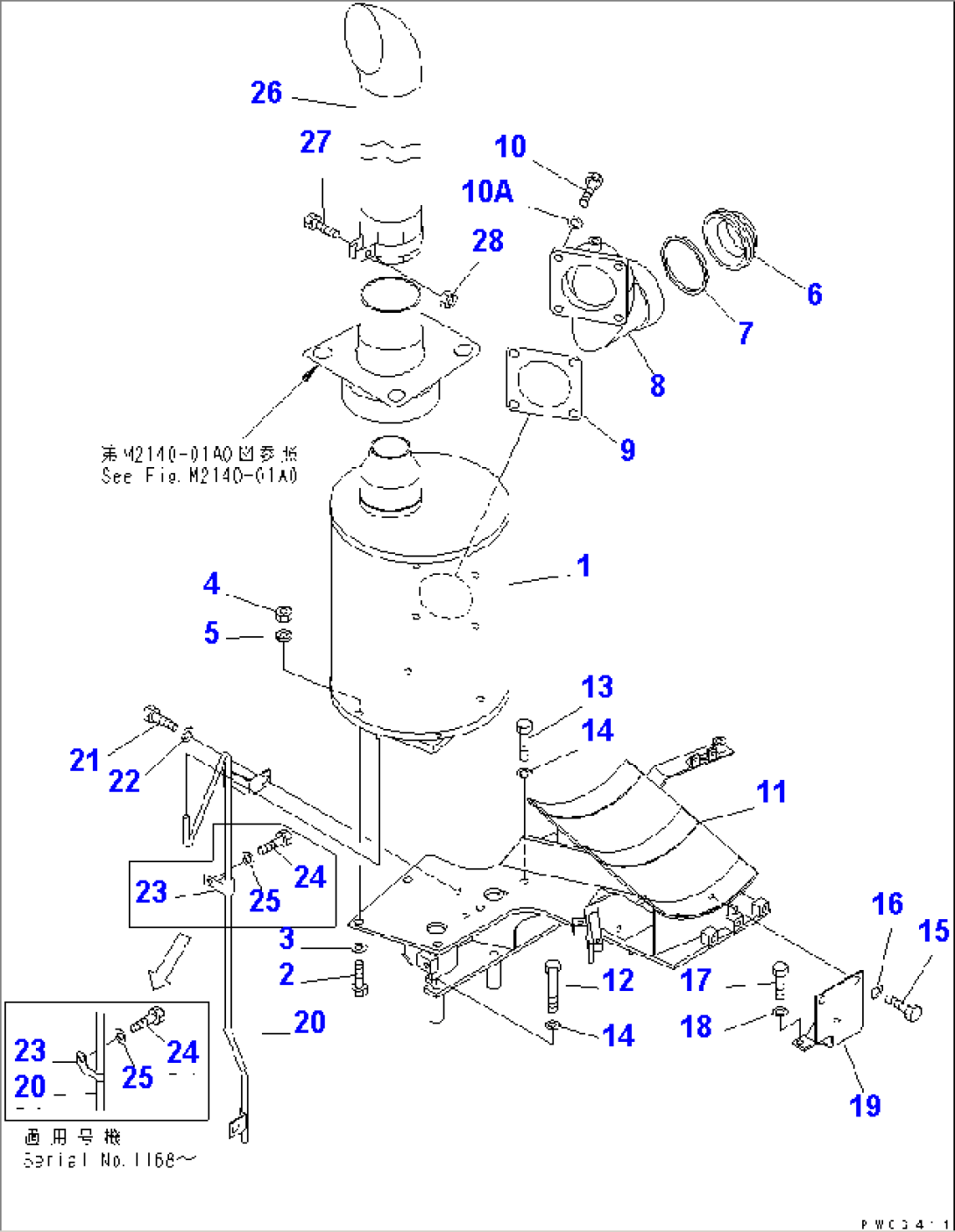

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6151-11-8611 | MUFFLER | 1001- | |
| 2 | 6150-81-9370 | BOLT | 1001- | |
| 3 | 01643-31032 | WASHER | 1001- | |
| 4 | 01580-11008 | NUT | 1001- | |
| 5 | 6110-23-6490 | SPACER | 1001- | |
| 6 | 134-01-61213 | PIPE | 1001- | |
| 7 | 6112-13-5260 | RING,SEAL | 1001- | |
| 8 | 134-01-61222 | PIPE | 1001- | |
| 9 | 6150-11-5751 | GASKET | 1001- | |
| 10 | 01010-E1235 | BOLT | 1001- | |
| 10A | 01643-31232 | WASHER | 1001- | |
| 11 | 134-01-61244 | BRACKET | 1001- | |
| 12 | 01010-81085 | BOLT | 1001- | |
| 13 | 01010-81045 | BOLT | 1001- | |
| 14 | 01643-31032 | WASHER | 1001- | |
| 15 | 01010-81025 | BOLT | 1001- | |
| 16 | 01643-31032 | WASHER | 1001- | |
| 17 | 01010-80835 | BOLT | 1001- | |
| 18 | 01643-30823 | WASHER | 1001- | |
| 19 | 134-01-61162 | BRACKET | 1001- | |
| 20 | 134-01-61252 | TUBE | 1001- | |
| 21 | 01010-81020 | BOLT | 1001- | |
| 22 | 01643-31032 | WASHER | 1001- | |
| 23 | 6675-61-7380 | CLIP | 1168- | |
| 112-946-4180 | CLIP | 1001-1167 | ||
| 24 | 01010-81016 | BOLT | 1001- | |
| 25 | 01643-31032 | WASHER | 1001- | |
| 26 | 6150-11-5452 | PIPE | 1001- | |
| 27 | 01016-51045 | BOLT | 1001- | |
| 28 | 01580-11008 | NUT | 1001- |
